Schluter DILEX-BWB Surface joint profile PVC plastic with 3/8" CPE movement zone Dark Anthracite 1/4" x 8' 2-1/2"

Regular price: $25.05

Description

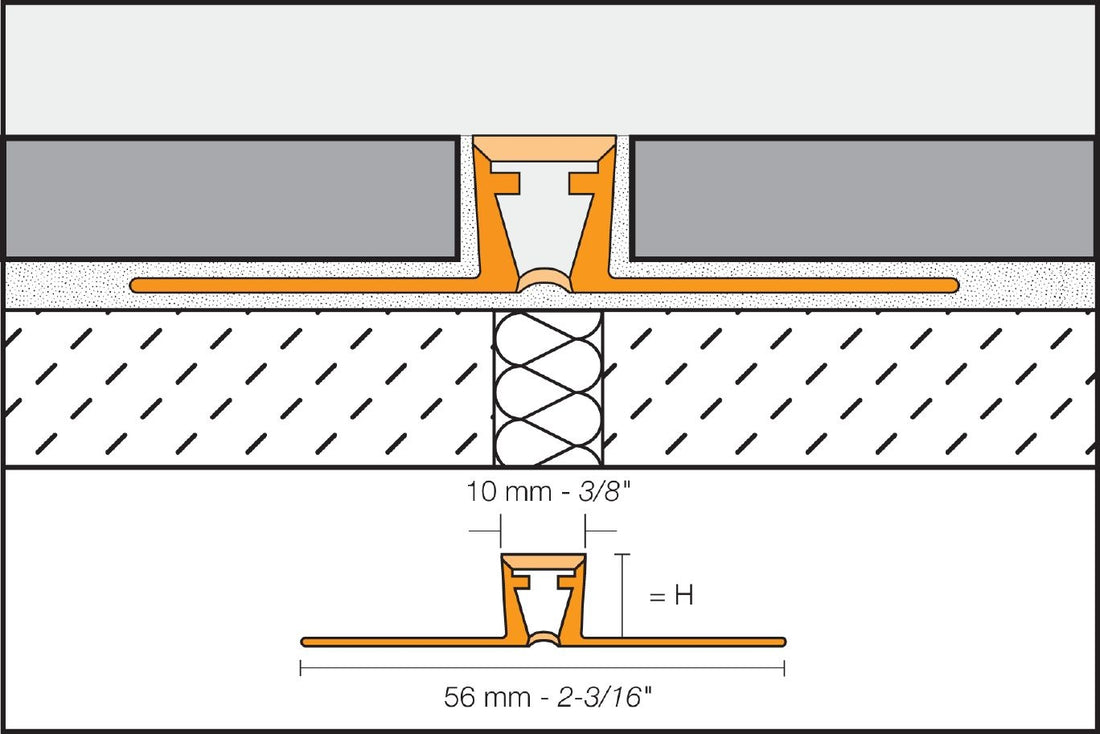

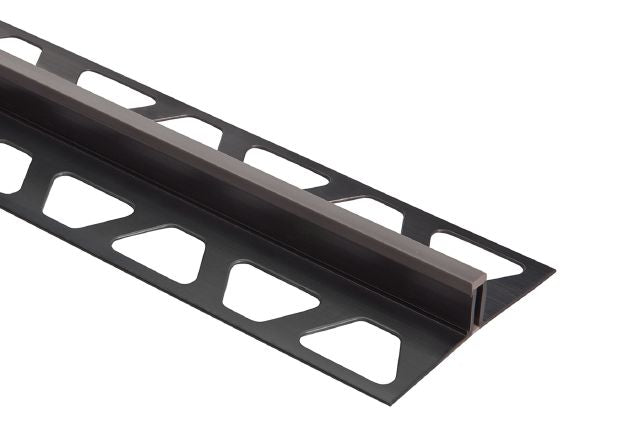

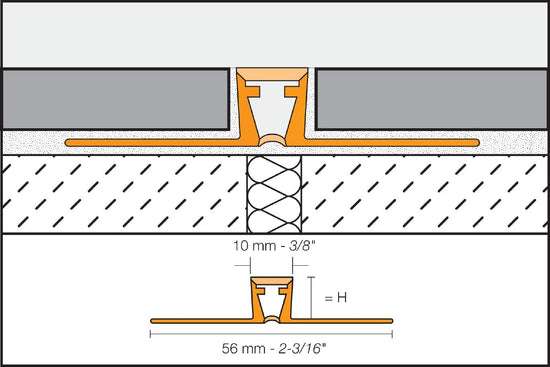

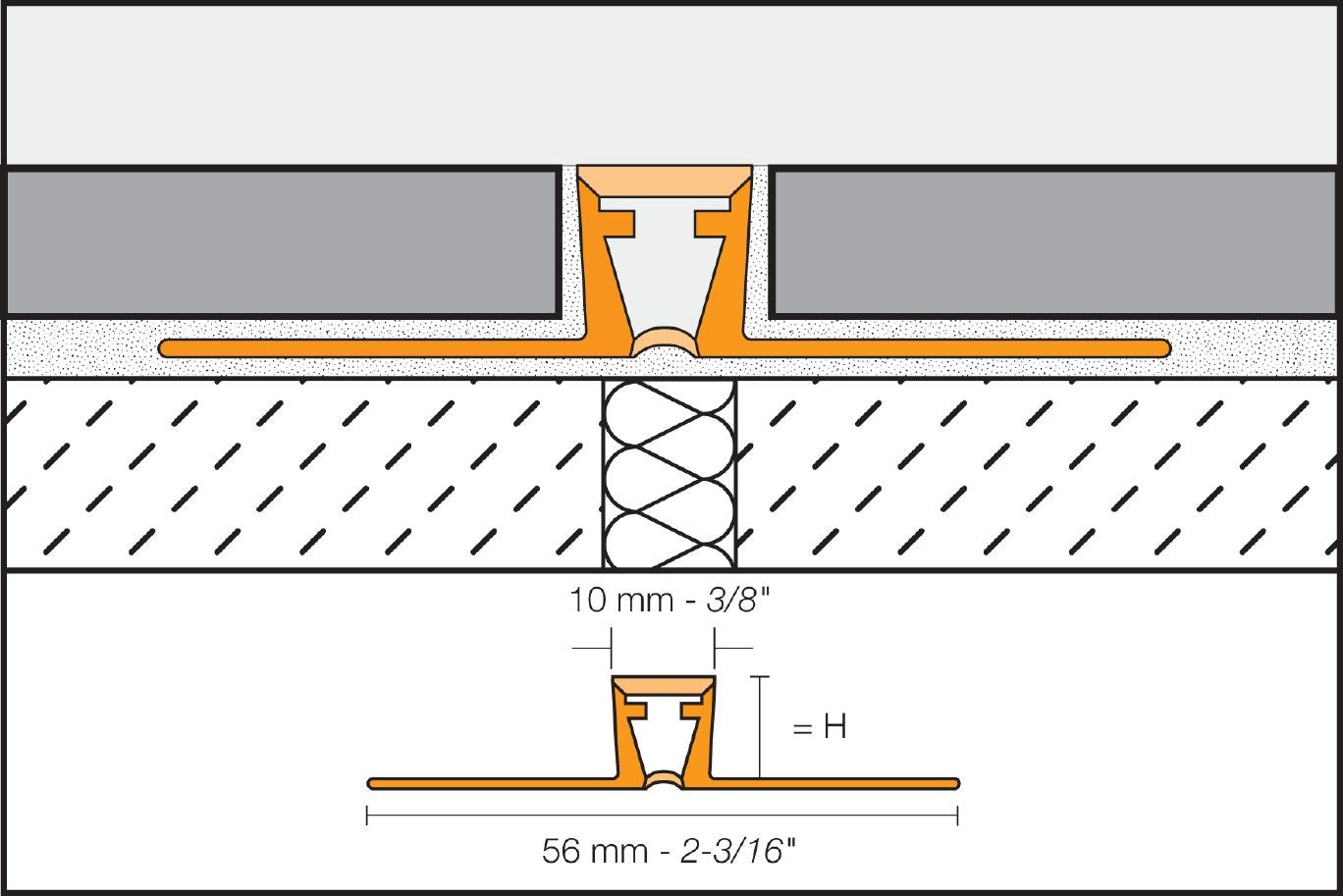

The Schluter-DILEX-BWB features trapezoidal, perforated anchoring fins made from recycled rigid PVC that embed in the mortar layer to protect the edges of adjacent tiles. The profile separates tiled areas and incorporates a flexible chlorinated polyethylene (CPE) movement zone that forms the v... Read more

Specifications

Manufacturer	Schluter
Application	Residential and Commercial
Traffic classification	Residential and medium commercial
Colour	Grey
Manufacturer colour	Dark anthracite
Warranty	Limited 5-year warranty for movement joints and cove profiles
Warranty (years)	5
Height (cm)	0.6
Height (mm)	6
Height (in.)	0.25
Height (inches, fraction)	1/4
Width (cm)	5.6
Width (mm)	56
Width (in.)	2.19
Width (inches, fraction)	2-3/16
Exposed moulding surface width (mm)	10
Exposed moulding surface width (in.)	0.38
Exposed moulding surface width (inches, fraction)	3/8
Length (cm)	250
Length (m)	2.5
Length (ft)	8.21
Length (in.)	98.5
Length (inches, fraction)	98-1/2
Material	PVC plastic
Collection name	DILEX-BWB
Colour number	DA
Weight (kg)	0.24
Weight (lb)	0.54
Type of anchoring fin	Perforated trapezoidal anchoring fin
Type of movement joint	CPE movement zone that separates individual fields in the tile covering and forms the visible surface
Outdoor use	No
Indoor use	Yes
Intended for	To allow movement and reduce stress in large tiled areas \| Offices and stores
Used on	Floor
Floor thickness for moulding (mm)	6
Floor thickness for moulding (in.)	0.25
Floor thickness for moulding (inches, fraction)	1/4

Number of unit(s)

Technical information

Four new colours to make choosing a matching grout mortar easier.
Absorbs movement and reduces stresses on large tiled areas, preventing cracks and delamination.
Eliminates the need for caulking.
Suitable for medium-sized residential and commercial applications subject to light mechanical loads — perfect for offices and stores.
