Schluter DILEX-BWS Surface joint profile with 3/16" movement zone - PVC plastic sand 1/2" (12.5 mm) x 8' 2-1/2"

Regular price: $23.51

Description

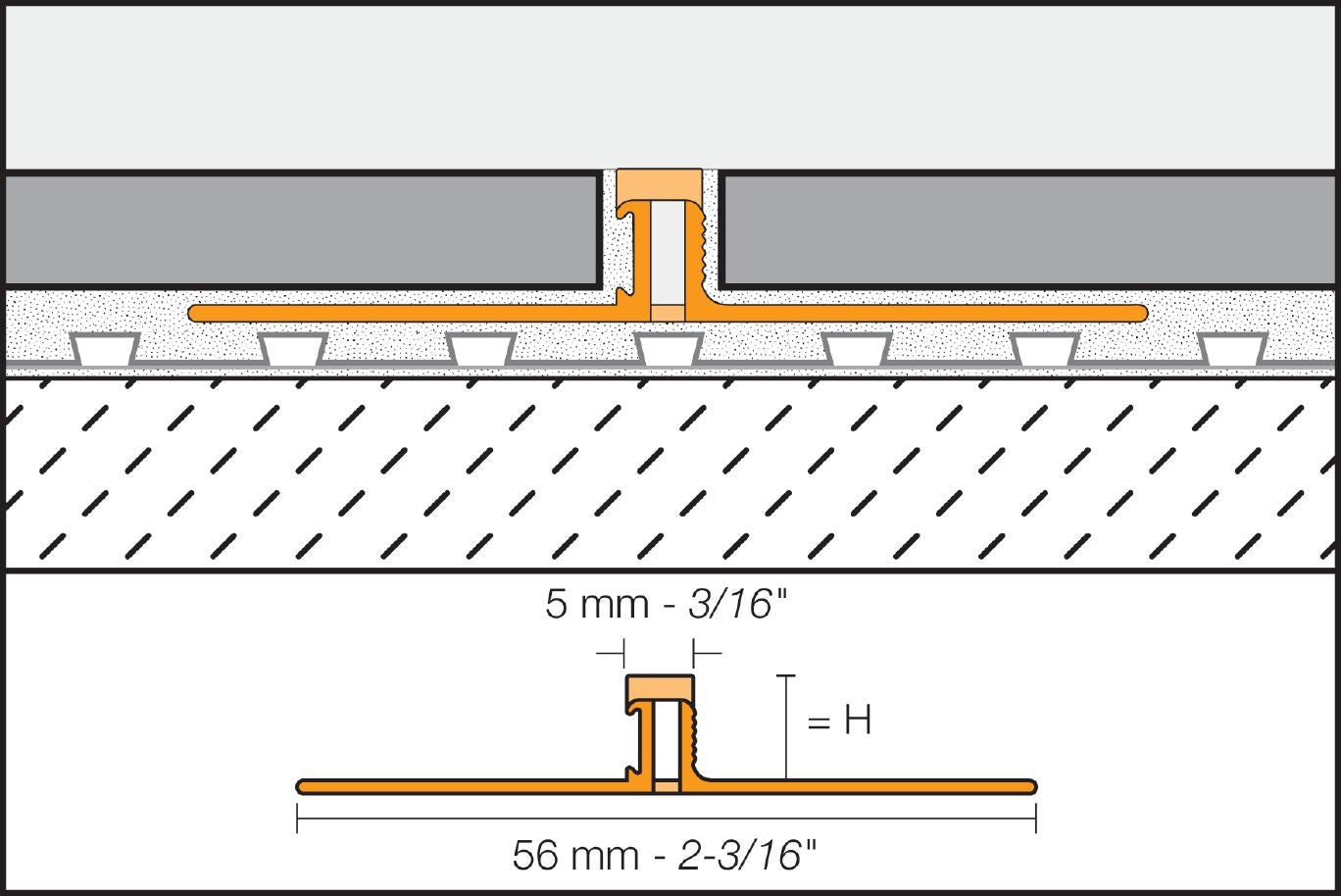

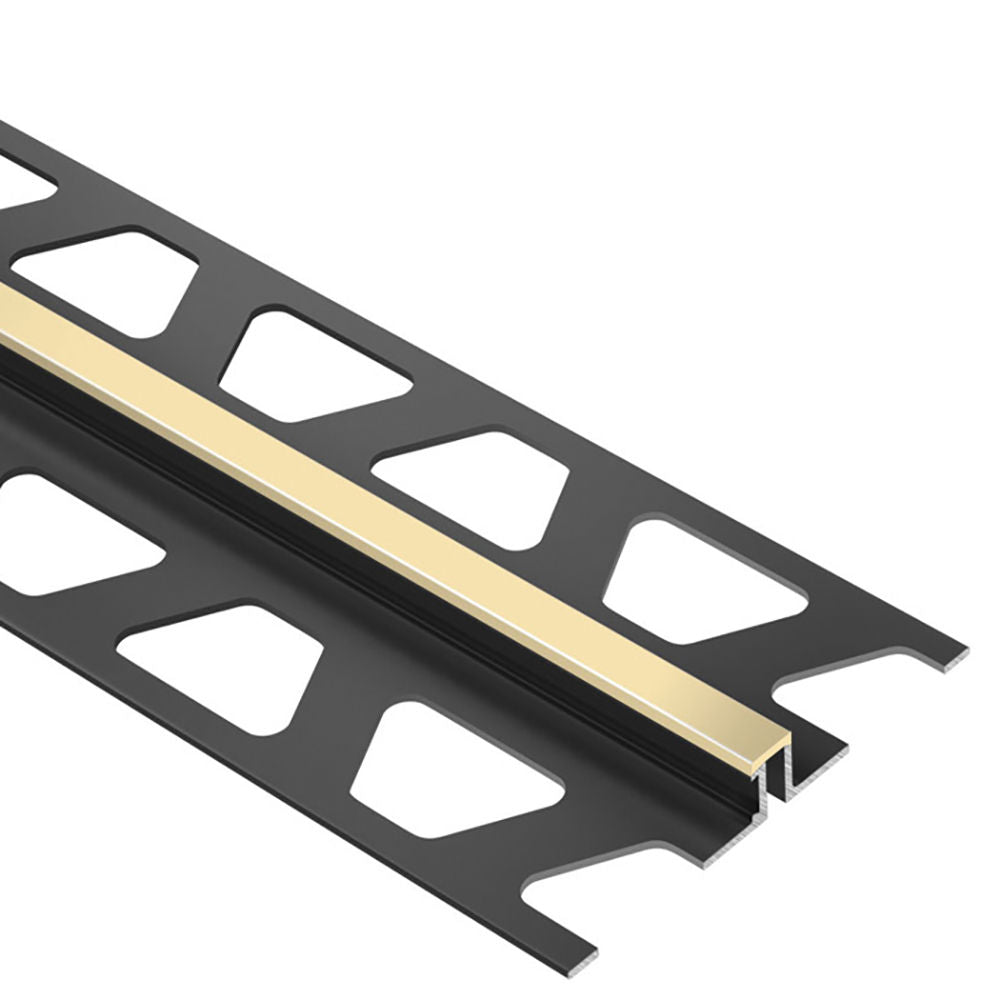

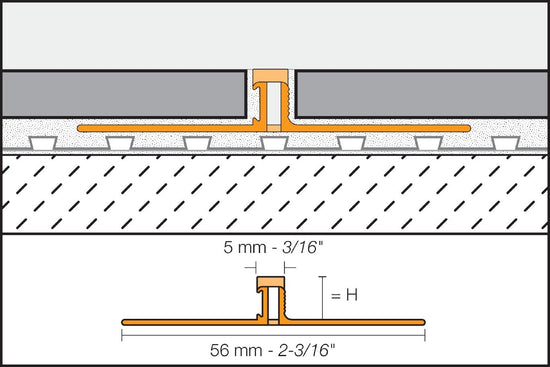

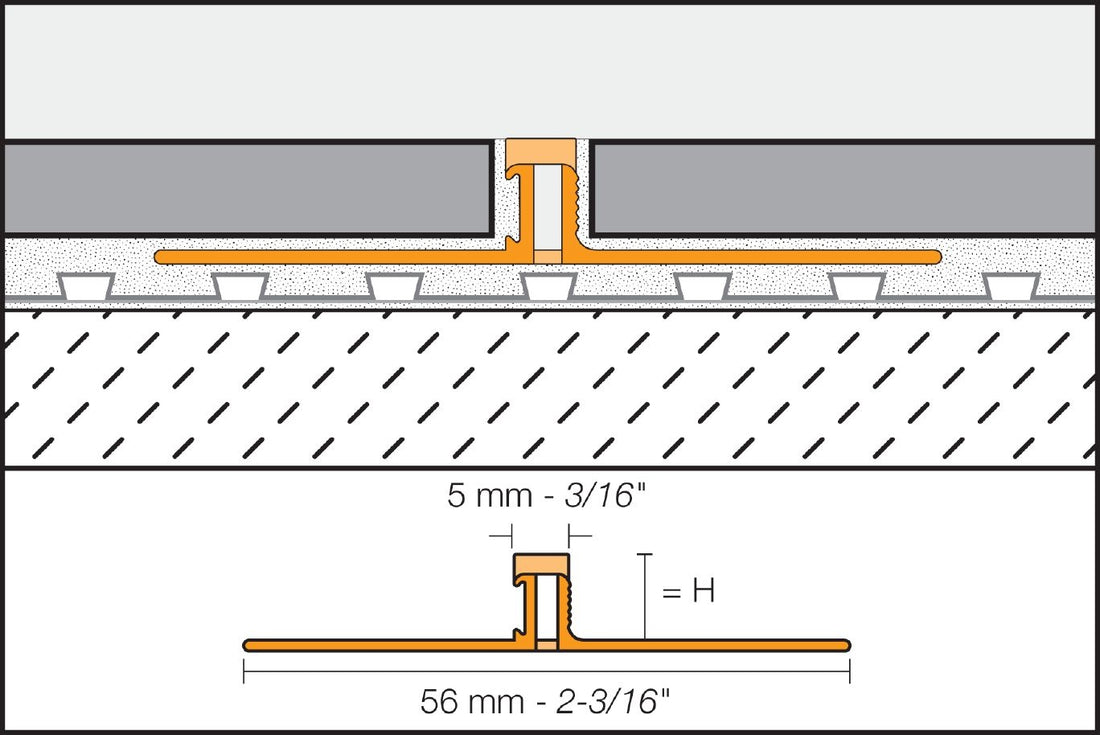

The Schluter‑DILEX‑BWS is a prefabricated surface joint profile fitted with rigid PVC anchoring fins that protect tile edges. These fins are connected by a flexible central movement zone made of chlorinated polyethylene (CPE), 3/16" (5 mm) wide, which divides the tiled surface into individual ... Read more

Specifications

Colour	Beige
Manufacturer's colour	Sand
Warranty	Movement and groove joint profiles - Limited 5-year warranty
Warranty (years)	5
Height (mm)	12.5
Height (in.)	0.5
Height (fractional inches)	1/2
Width (mm)	56
Width (in.)	2.19
Width (fractional inches)	2-3/16
Width of the moulding's exposed surface (mm)	10
Width of the moulding's exposed surface (in.)	0.38
Width of the moulding's exposed surface (in. — fraction)	3/8
Length (cm)	250
Length (m)	2.5
Length (in.)	98.5
Length (in. — fraction)	98-1/2
Material	PVC plastic
Collection name	DILEX-BWS
Weight (lb)	0.51
Profile	Surface joint profile
Indoor use	Yes
Intended for	Tile
Flooring thickness for the moulding (mm)	12.5
Flooring thickness for the moulding (in.)	0.5
Flooring thickness for the moulding (in. — fraction)	1/2

Number of unit(s)

Documents

Fiche Technique Profilés pour joints de mouvement et à gorge (BWS125SP)Document de garantie Profilés joints de mouvement et à gorge (BWS125SP)

Technical information

Four new colours: the flexible CPE movement zone matches the grout for a visually cohesive look
Allows movement and reduces mechanical stresses in large tiled areas
Eliminates the need for caulking for a clean finish
Prevents tile cracking and debonding
Absorbs minor movements; multiple profiles can be installed to reduce section sizes
Suitable for residential and moderate commercial applications, for assemblies exposed to light mechanical loads
