Schluter DILEX-BWS Surface joint profile with 3/16" movement zone - PVC Grey 7/16" (11 mm) x 8' 2-1/2"

Regular price: $23.51

Description

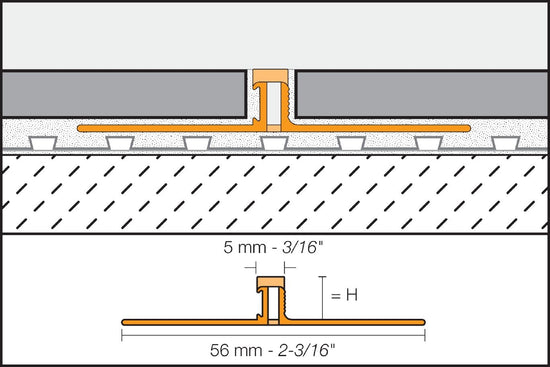

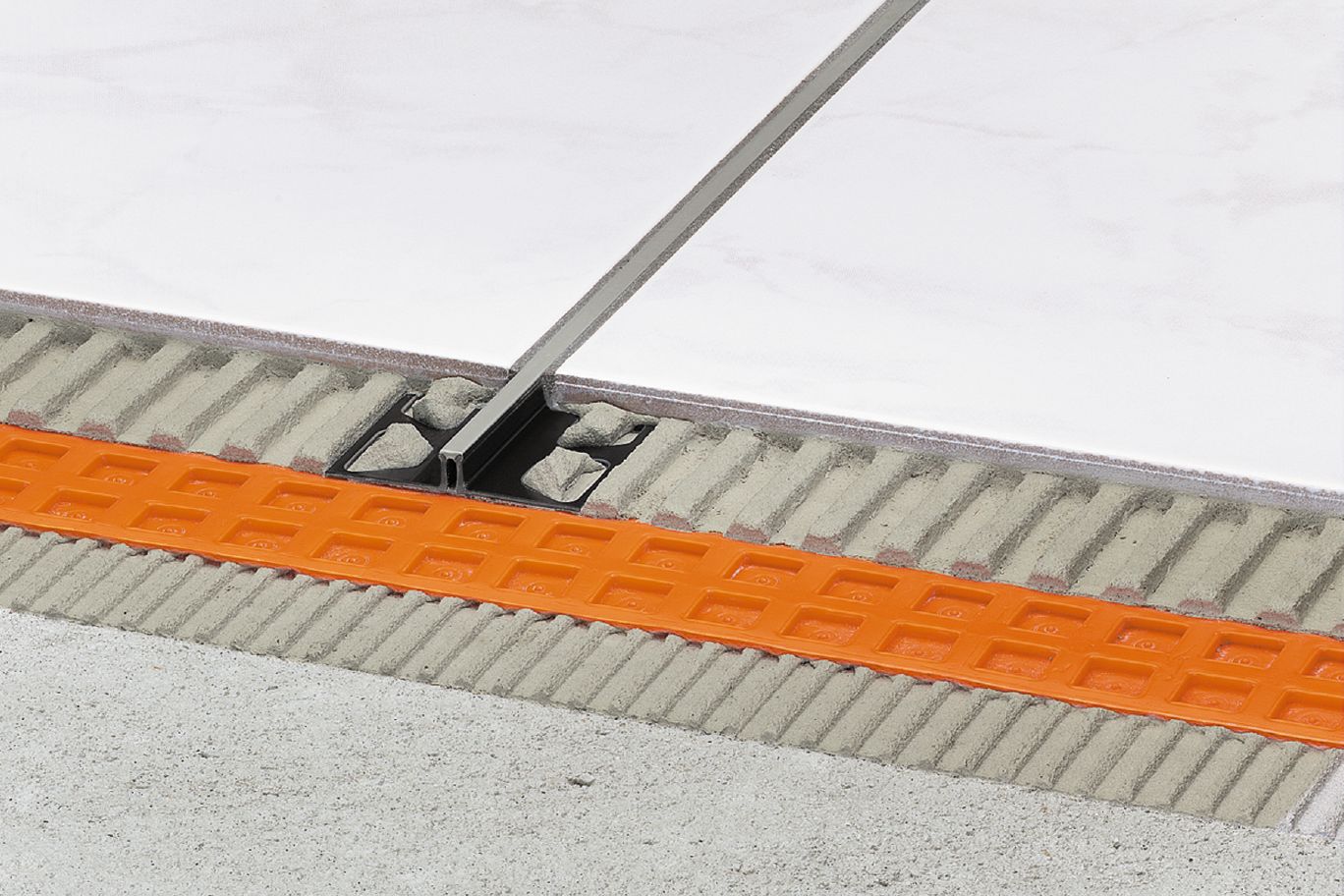

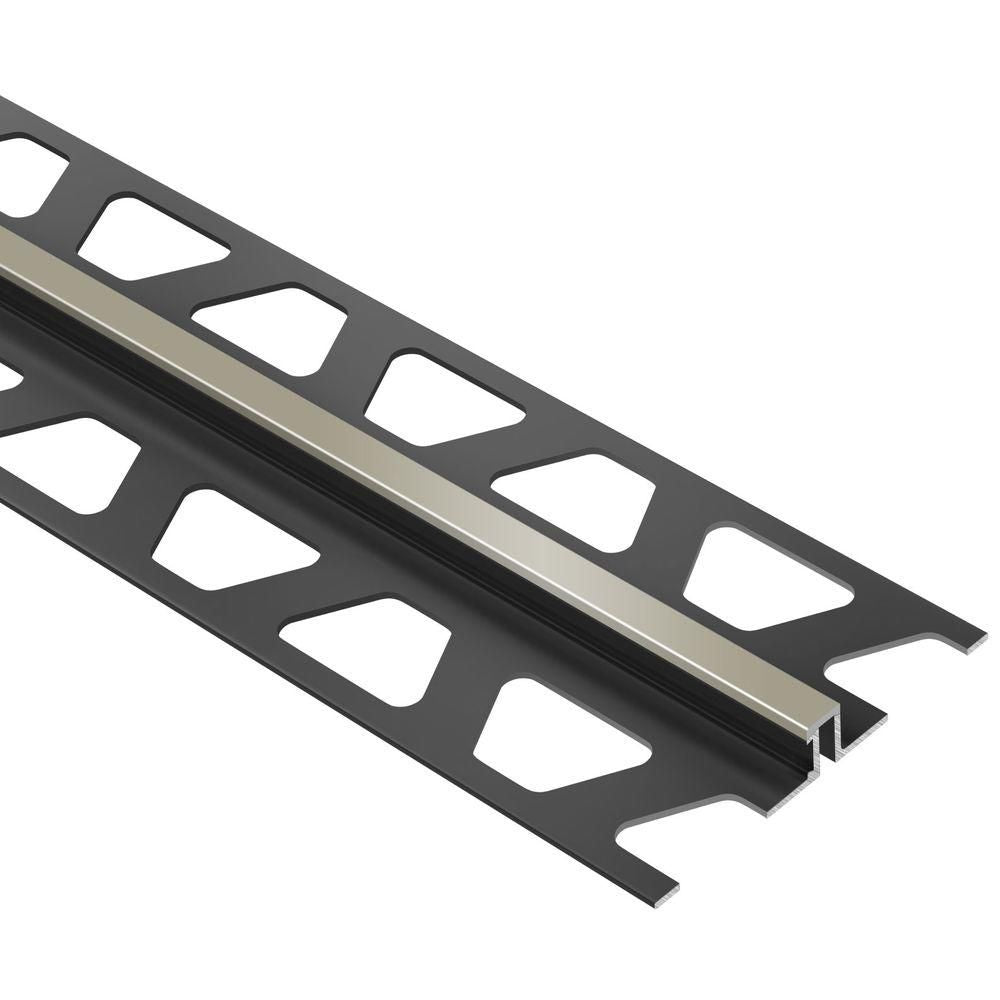

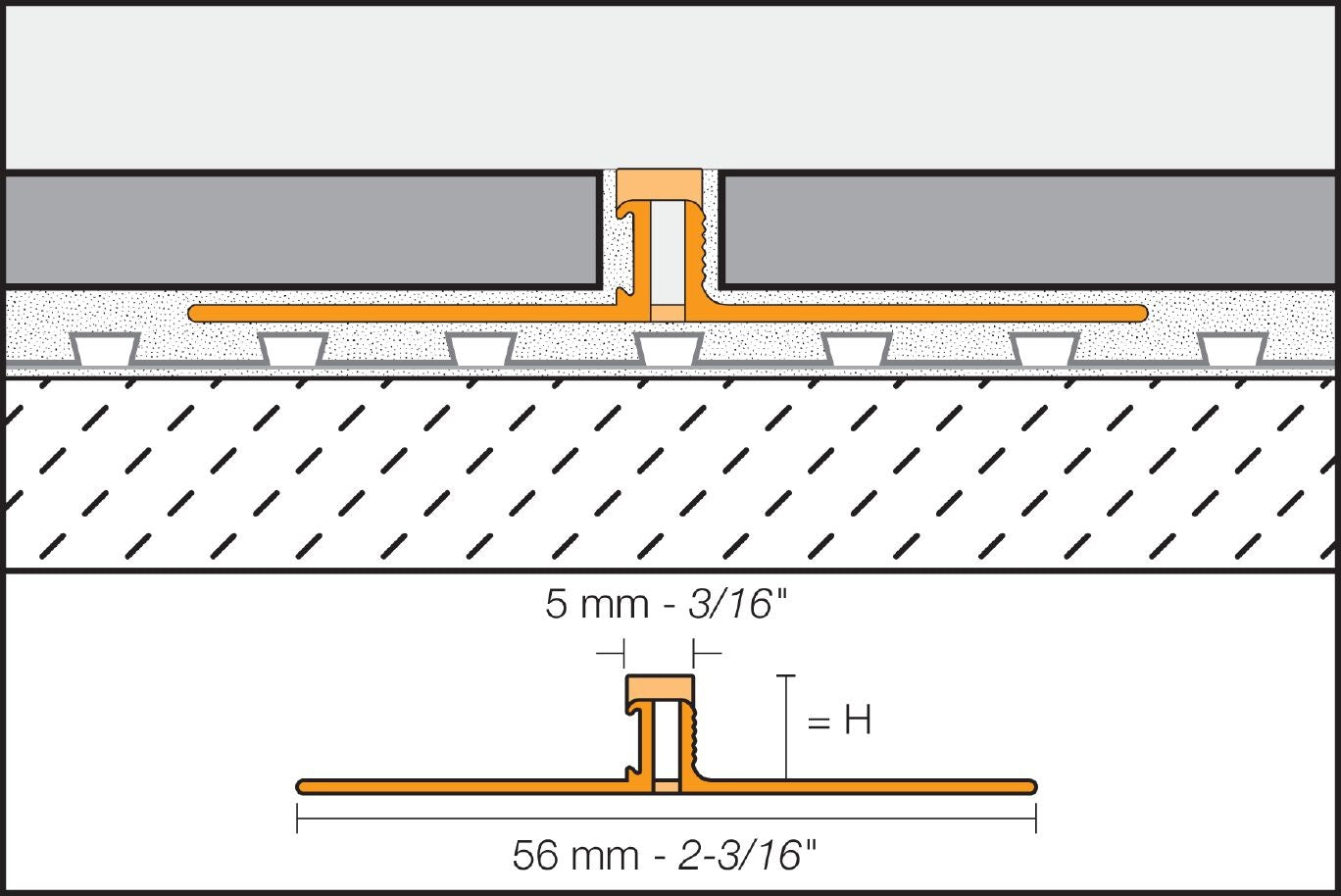

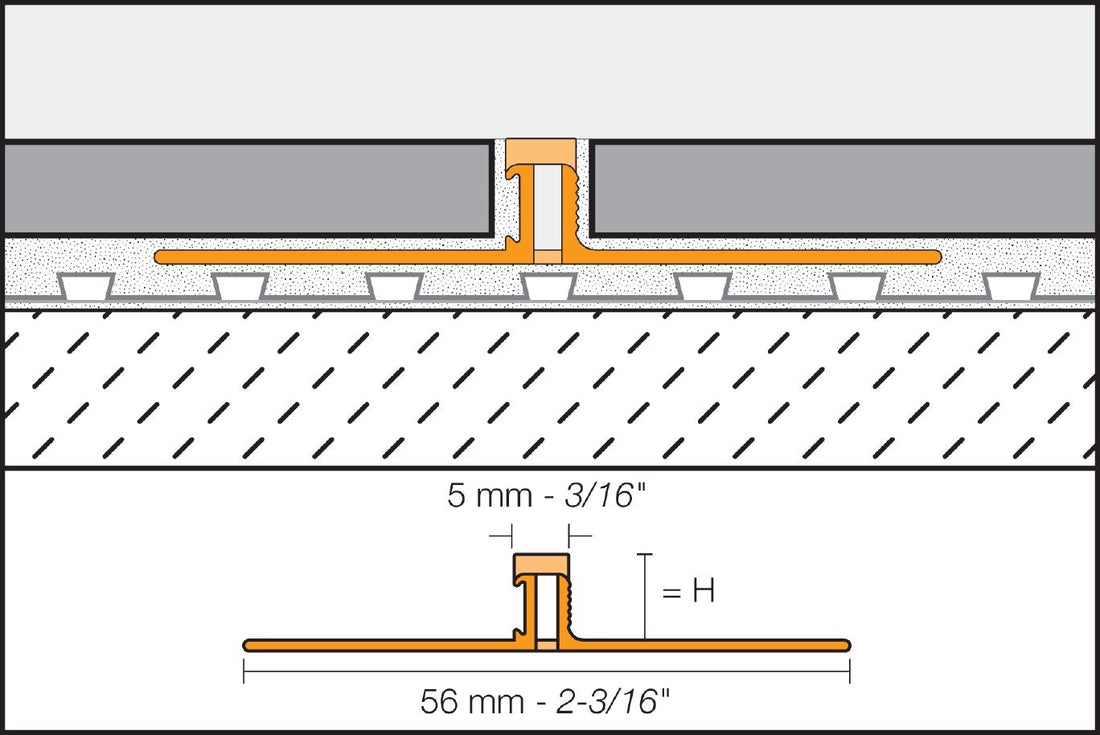

The Schluter-DILEX-BWS is a prefabricated surface joint profile equipped with rigid PVC anchoring fins that protect tile edges. These fins are connected by a central flexible movement zone in flexible chlorinated polyethylene (CPE), 3/16" (5 mm) wide, which divides the tiled surface into indiv... Read more

Specifications

Colour	Grey
Manufacturer colour	Grey
Warranty	Movement and groove joint profiles - Limited 5-year warranty
Warranty (years)	5
Height (mm)	11
Height (in.)	0.44
Height (in. fraction)	7/16
Width (mm)	56
Width (in.)	2.19
Width (in. fraction)	2-3/16
Exposed surface width of the profile (mm)	10
Exposed surface width of the profile (in.)	0.38
Exposed surface width of the profile (in. fraction)	3/8
Length (cm)	250
Length (m)	2.5
Length (in.)	98.5
Length (inch fraction)	98-1/2
Material	PVC plastic
Collection name	DILEX-BWS
Weight (lb)	0.5
Profile	Surface joint profile
Indoor use	Yes
Intended for	Tile
Floor thickness for the molding (mm)	11
Floor thickness for the molding (in.)	0.44
Floor thickness for the molding (inch fraction)	7/16

Number of unit(s)

Documents

Fiche Technique Profilés pour joints de mouvement et à gorge (BWS110G)Document de garantie Profilés joints de mouvement et à gorge (BWS110G)

Technical information

Four new colours: the flexible CPE movement area matches the grout for a visually harmonious look
Allows movement and reduces mechanical stresses in large tiled areas
Avoids the need for caulking for a clean finish
Prevents tiles from cracking and coming loose
Absorbs minor movements; multiple profiles can be installed to reduce the size of sections
Suitable for residential and moderate commercial applications, for assemblies exposed to light mechanical loads
