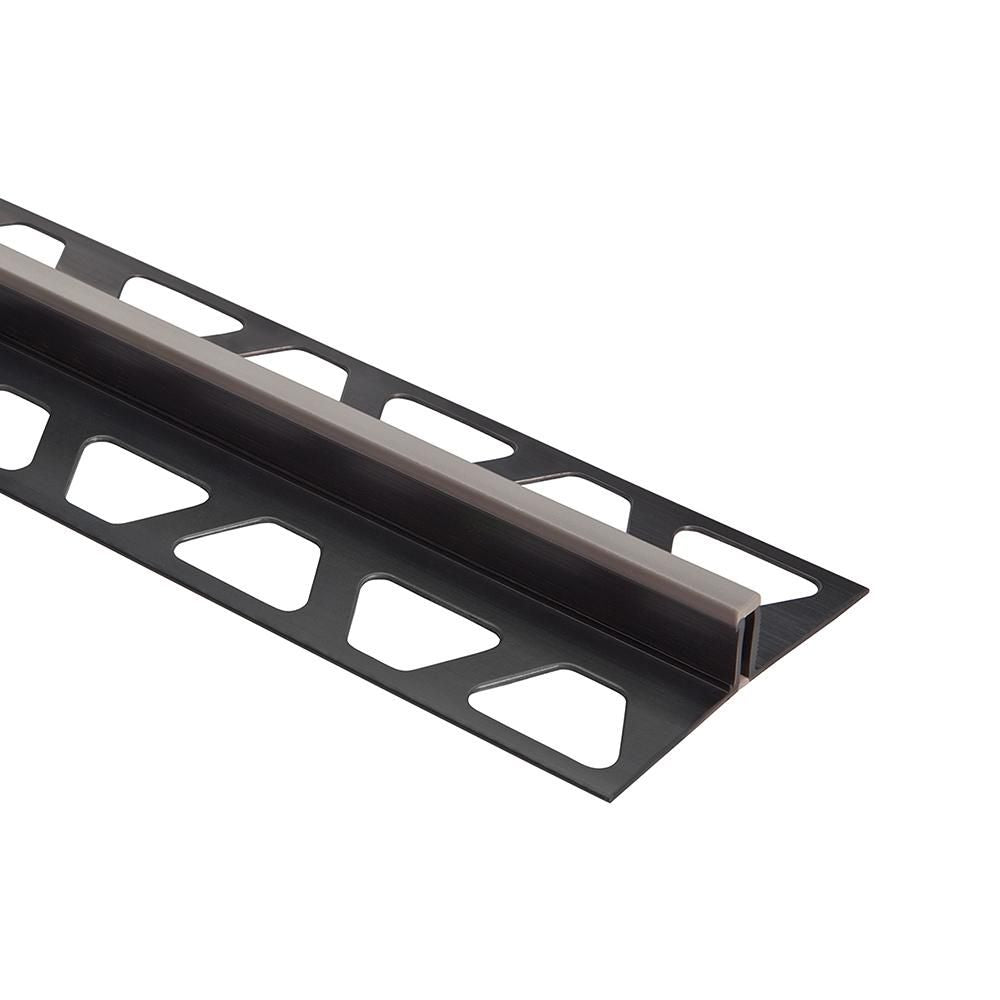

Schluter DILEX-BWS Surface joint profile with 3/16" (4.5 mm) movement zone - PVC plastic grout grey 3/16" x 8' 2-1/2"

Regular price: $22.35

Description

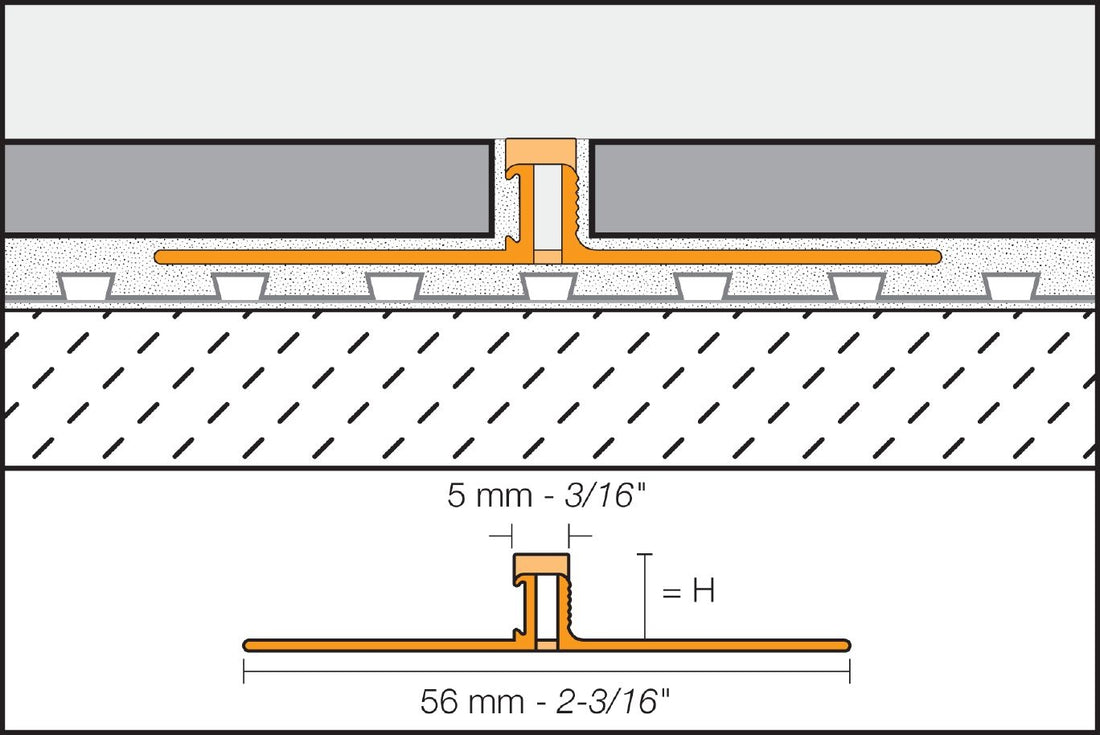

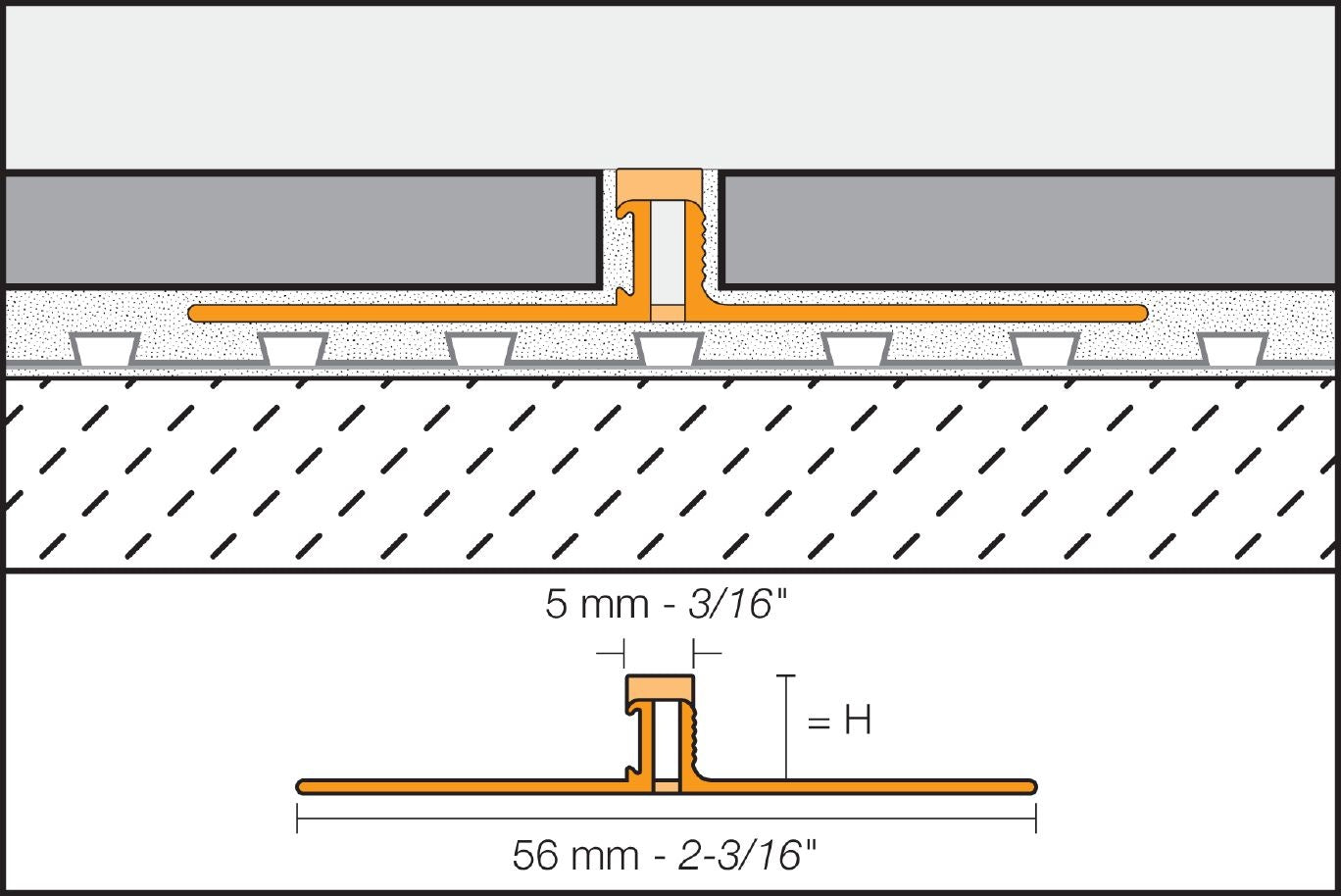

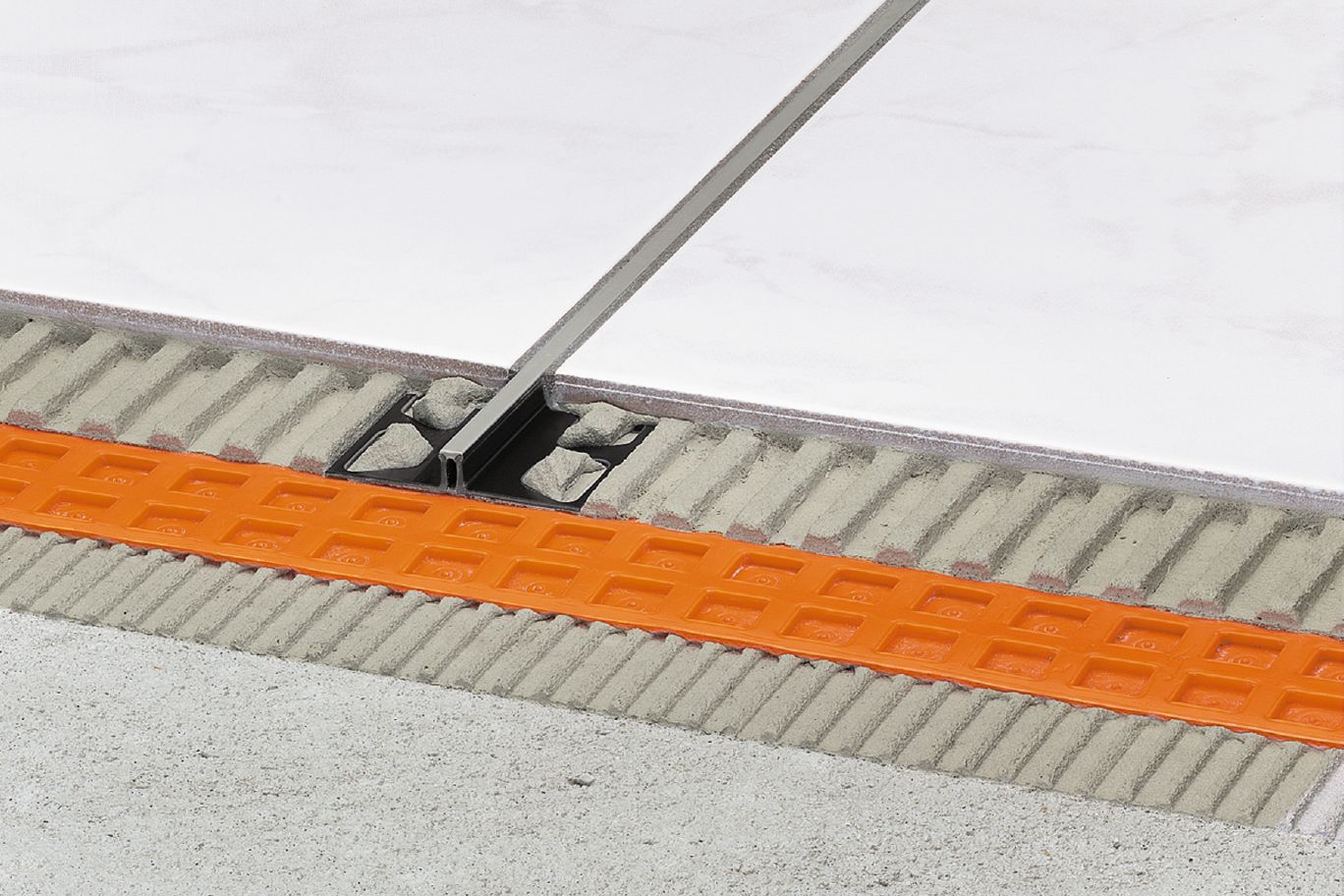

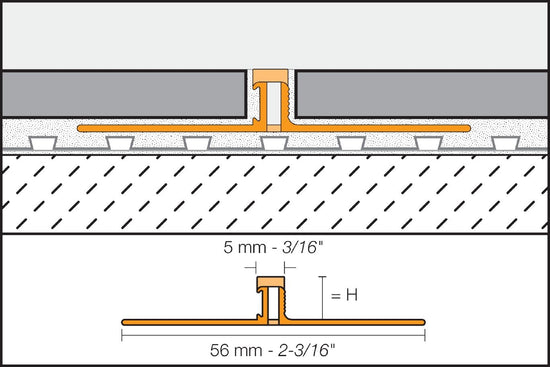

The Schluter‑DILEX‑BWS is a prefabricated surface joint profile fitted with rigid PVC anchoring fins that protect tile edges. These fins are connected by a flexible central movement zone made of chlorinated polyethylene (CPE), 3/16" (5 mm) wide, which divides the tiled surface into individual ... Read more

Specifications

Manufacturer	Schluter
Colour	Grey
Manufacturer colour	Grey grout
Warranty	Movement and cove joint profiles - Limited 5-year warranty
Warranty (years)	5
Height (mm)	4.5
Height (in.)	0.19
Height (in. - fraction)	3/16
Width (mm)	56
Width (in.)	2.19
Width (in. - fraction)	2-3/16
Exposed trim surface width (mm)	10
Exposed trim surface width (in.)	0.38
Exposed trim surface width (in. - fraction)	3/8
Length (cm)	250
Length (m)	2.5
Length (in.)	98.5
Length (in. - fraction)	98-1/2
Material	PVC plastic
Collection name	DILEX-BWS
Weight (lb)	0.36
Profile	Surface joint profile
Used with	Tile
Indoor use	Yes
Floor thickness for moulding (mm)	4.5
Floor thickness for moulding (in.)	0.19
Floor thickness for moulding (in. - fraction)	3/16

Number of unit(s)

Documents

Fiche Technique Profilés pour joints de mouvement et à gorge (BWS45FG)Document de garantie Profilés joints de mouvement et à gorge (BWS45FG)

Technical information

Four new colours: the flexible CPE movement zone coordinates with the grout for visual harmony
Allows movement and reduces mechanical stresses in large tiled areas
Avoids the need for caulking for a clean finish
Prevents tiles from cracking and coming loose
Absorbs minor movements; multiple profiles can be installed to reduce the size of sections
Suitable for residential and moderate-use commercial applications, for assemblies exposed to light mechanical loads
