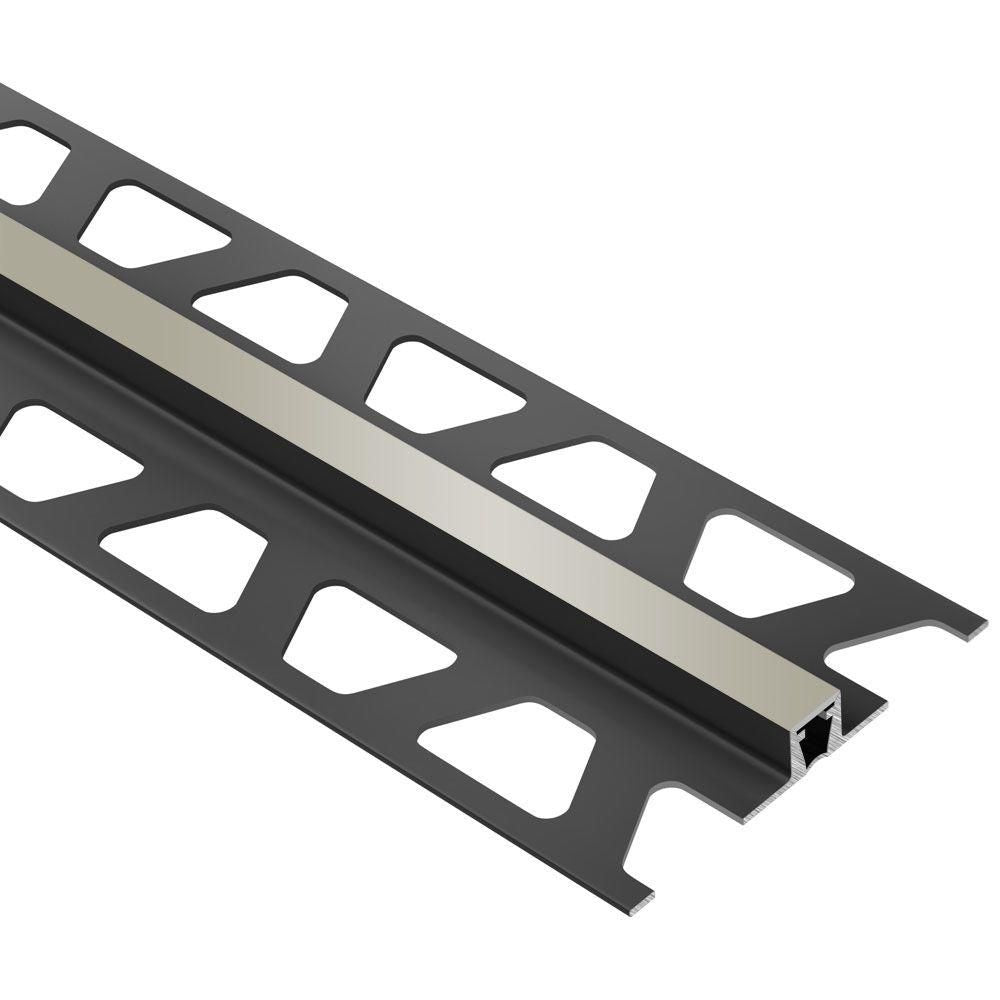

Schluter DILEX-BWB Surface joint profile with 3/8" movement zone - PVC plastic Grey 1/2" (12.5 mm) x 8' 2-1/2"

Regular price: $26.97

Description

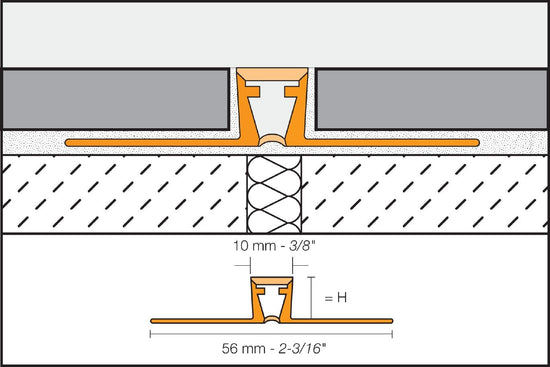

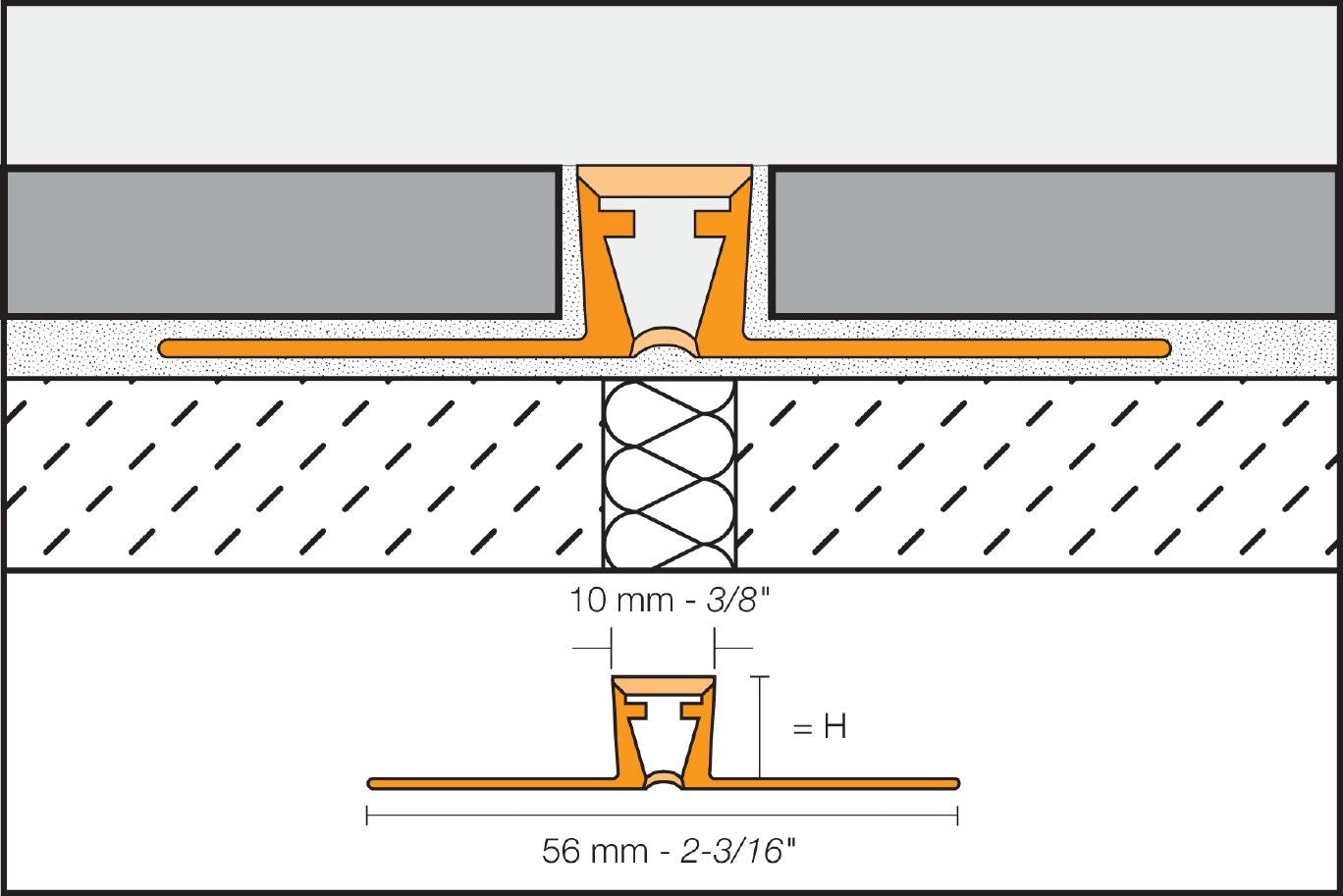

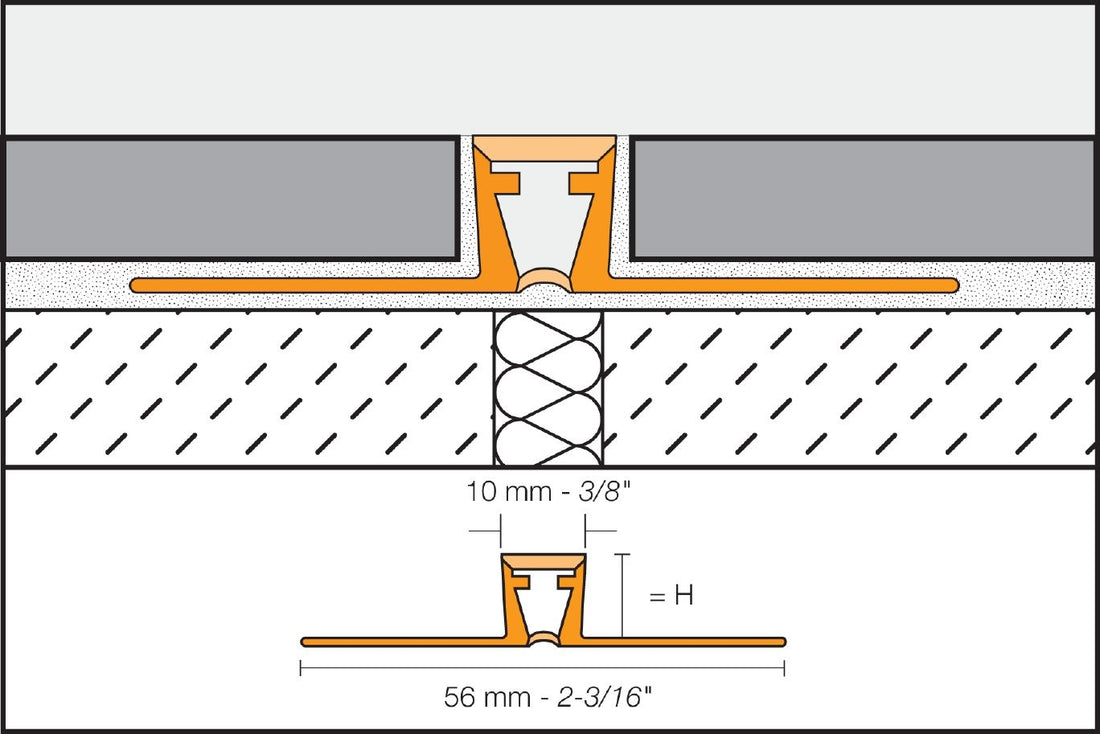

The Schluter‑DILEX‑BWB is a prefabricated surface joint profile whose rigid PVC anchoring fins effectively protect the edges of tiles. These fins are connected by a flexible chlorinated polyethylene (CPE) central movement zone measuring 3/8" (10 mm), which divides the tiled surface into distin... Read more

Specifications

Manufacturer	Schluter
Colour	Grey
Manufacturer's colour	Grey
Warranty	Profiles for movement and groove joints - Limited 5-year warranty
Warranty (years)	5
Height (mm)	12.5
Height (in.)	0.5
Height (in. - fractional)	1/2
Width (mm)	56
Width (in.)	2.19
Width (in. - fractional)	2-3/16
Exposed width of the moulding (mm)	10
Exposed width of the moulding (in.)	0.38
Exposed width of the moulding (in. - fractional)	3/8
Length (cm)	250
Length (m)	2.5
Length (in.)	98.5
Length (in. - fractional)	98-1/2
Material	PVC plastic
Collection name	DILEX-BWB
Weight (lb)	0.8
Profile	Surface-joint profile
Indoor use	Yes
For use with	Tile
Floor thickness for the moulding (mm)	12.5
Floor thickness for the moulding (in.)	0.5
Floor thickness for the moulding (in. - fractional)	1/2

Number of unit(s)

Documents

Fiche Technique Profilé pour joints de mouvement (BWB125G)Brochure Produits commerciaux (BWB125G)Brochure Profilés (BWB125G)Document de garantie Profilé joints de mouvement et à gorge (BWB125G)

Technical information

Four new colours to simplify choosing a matching grout
Allows movement and reduces mechanical stresses in large tiled areas
Eliminates the need for caulking
Prevents tile cracking and detachment
Suitable for residential and moderate commercial applications — ideal for offices and retail stores exposed to light mechanical loads
