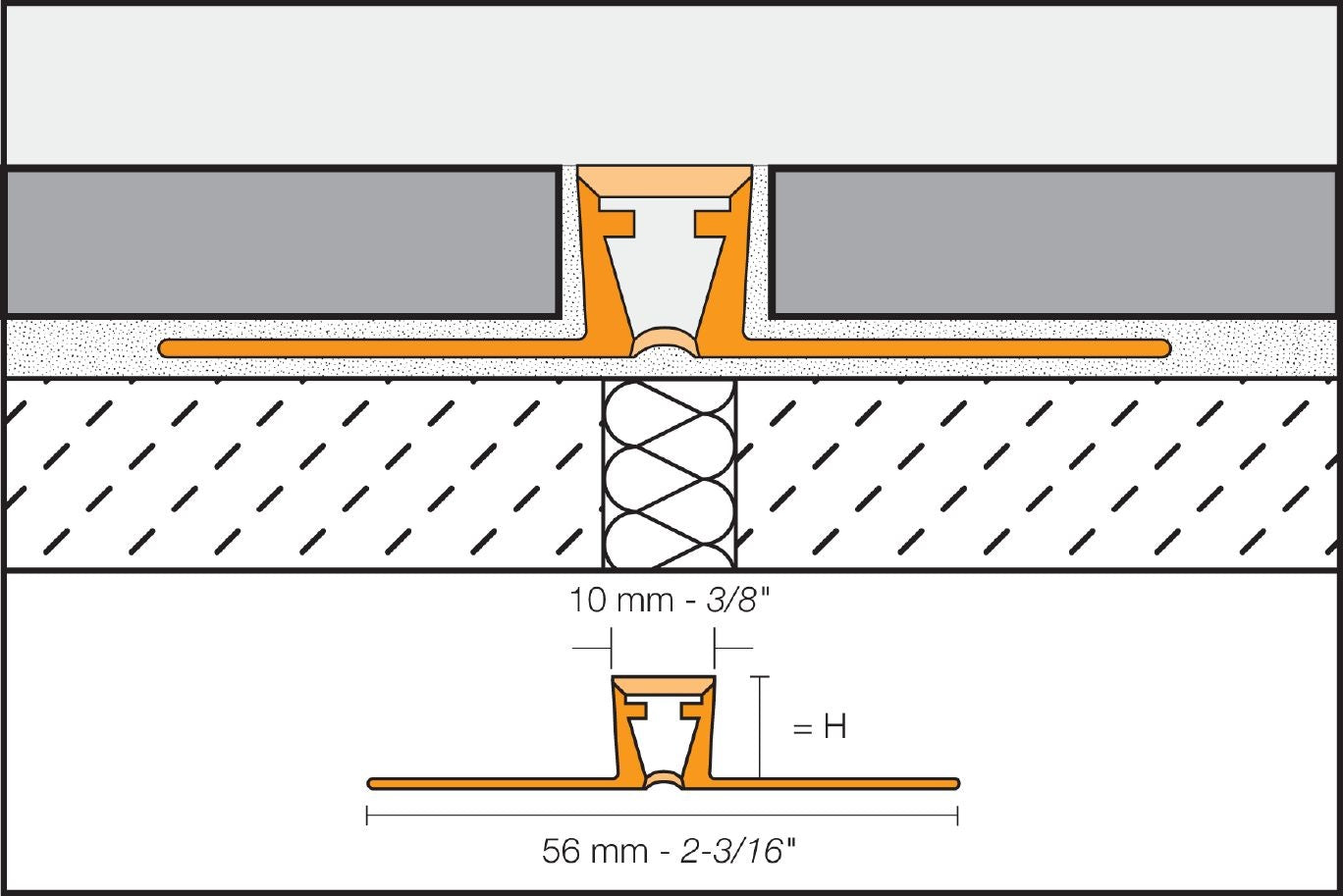

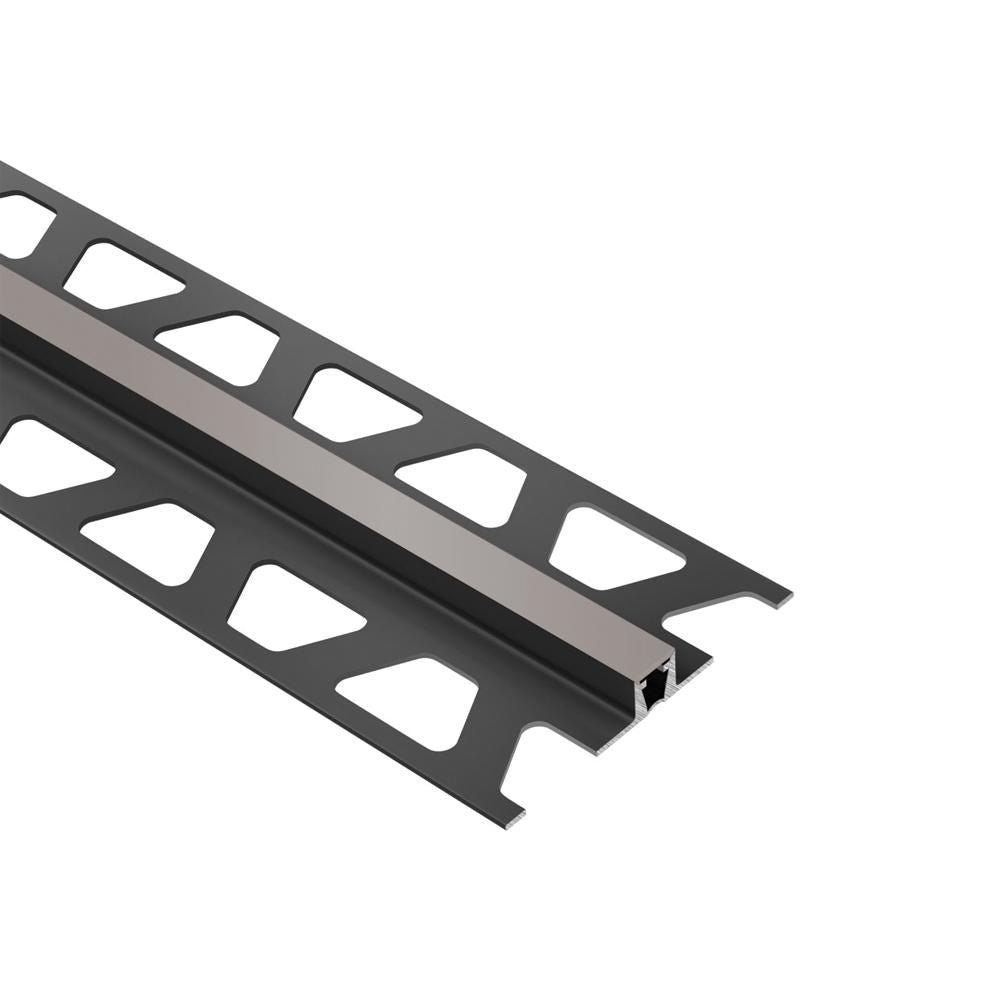

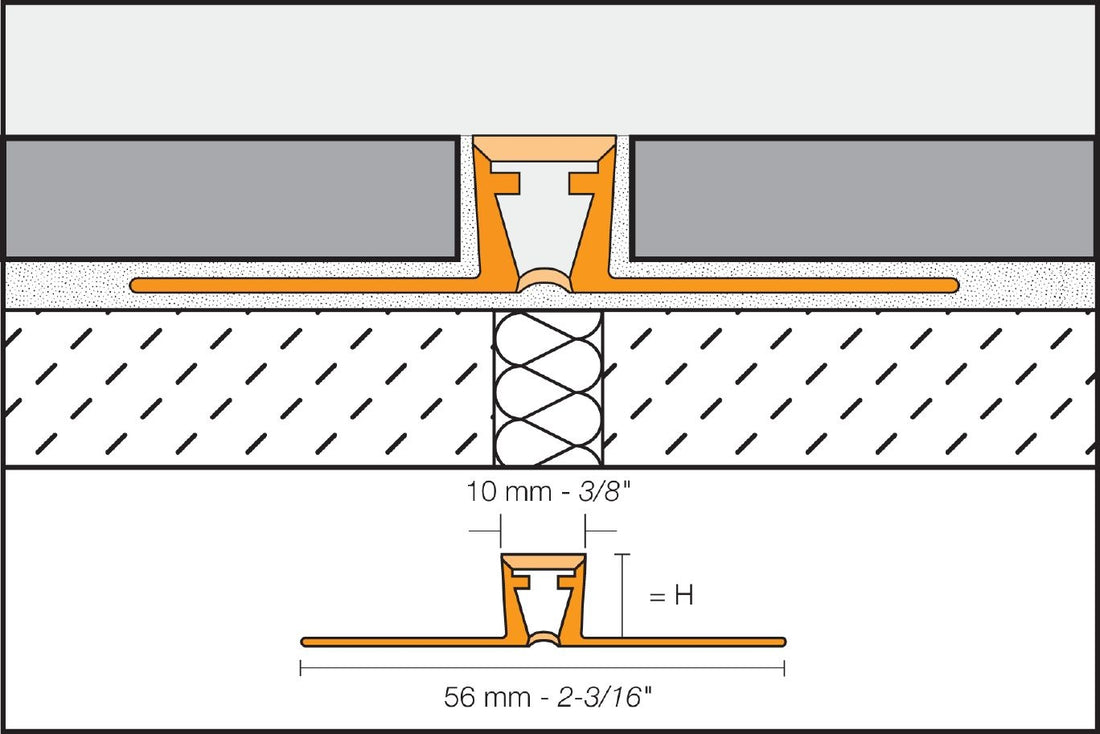

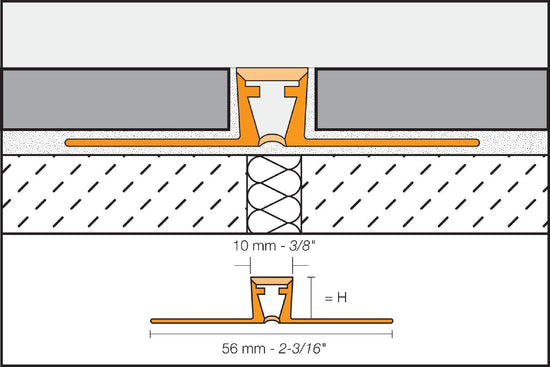

The Schluter‑DILEX‑BWB is a prefabricated surface joint profile whose rigid PVC anchoring fins effectively protect the edges of tiles. These fins are connected by a flexible chlorinated polyethylene (CPE) central movement zone measuring 3/8" (10 mm), which divides the tiled surface into distin... Read more
| Manufacturer | Schluter |
| Colour | Grey |
| Manufacturer's colour | Grout grey |
| Warranty | Profiles for movement and recess joints - Limited 5-year warranty |
| Warranty (years) | 5 |
| Height (mm) | 12.5 |
| Height (in.) | 0.5 |
| Height (in. - fractional) | 1/2 |
| Width (mm) | 56 |
| Width (in.) | 2.19 |
| Width (in. - fractional) | 2-3/16 |
| Exposed width of the moulding (mm) | 10 |
| Exposed width of the moulding (in.) | 0.38 |
| Exposed width of the moulding (in. - fractional) | 3/8 |
| Length (cm) | 250 |
| Length (m) | 2.5 |
| Length (in.) | 98.5 |
| Length (in. - fractional) | 98-1/2 |
| Material | PVC plastic |
| Collection name | DILEX-BWB |
| Weight (lb) | 0.8 |
| Profile | Surface-joint profile |
| Indoor use | Yes |
| For use with | Tile |
| Floor thickness for the moulding (mm) | 12.5 |
| Floor thickness for the moulding (in.) | 0.5 |
| Floor thickness for the moulding (in. - fractional) | 1/2 |
