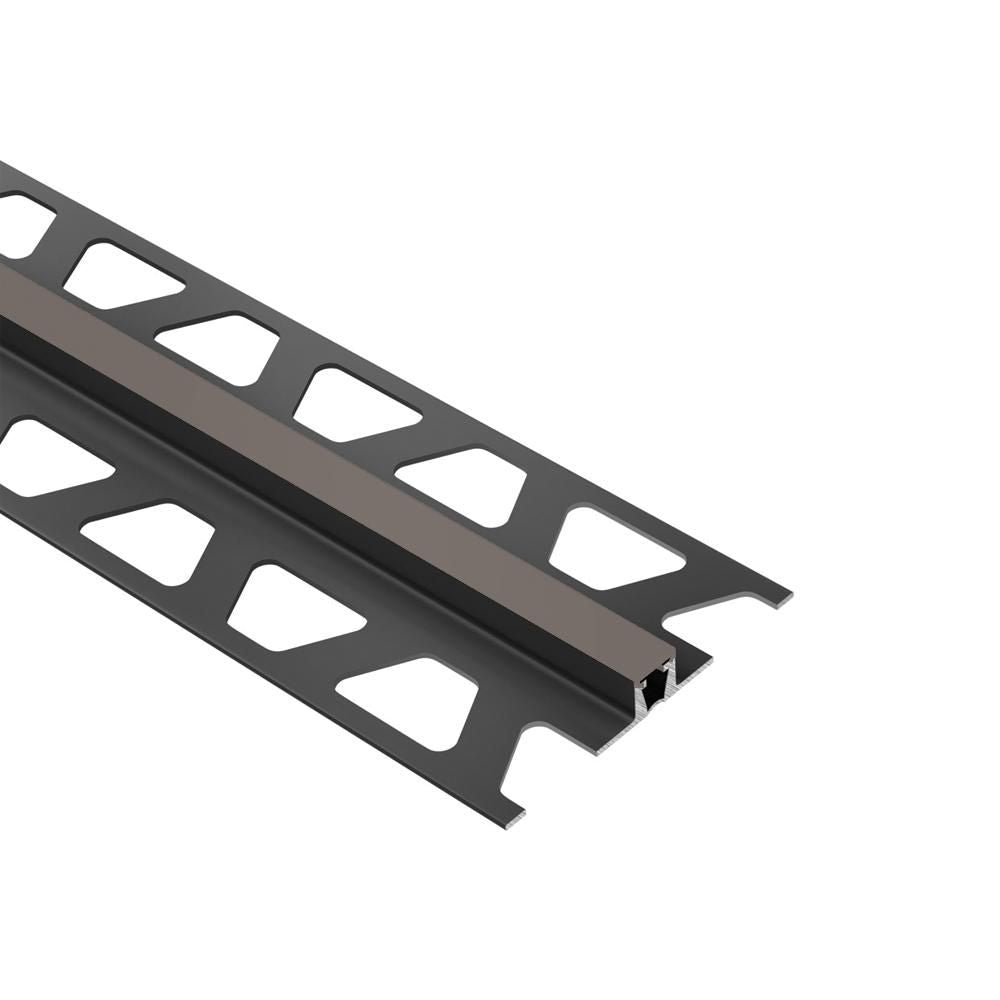

Schluter DILEX-BWB Surface joint profile with 3/8" (10 mm) movement zone - PVC plastic Dark Anthracite 3/8" x 8' 2-1/2"

Regular price: $26.97

Description

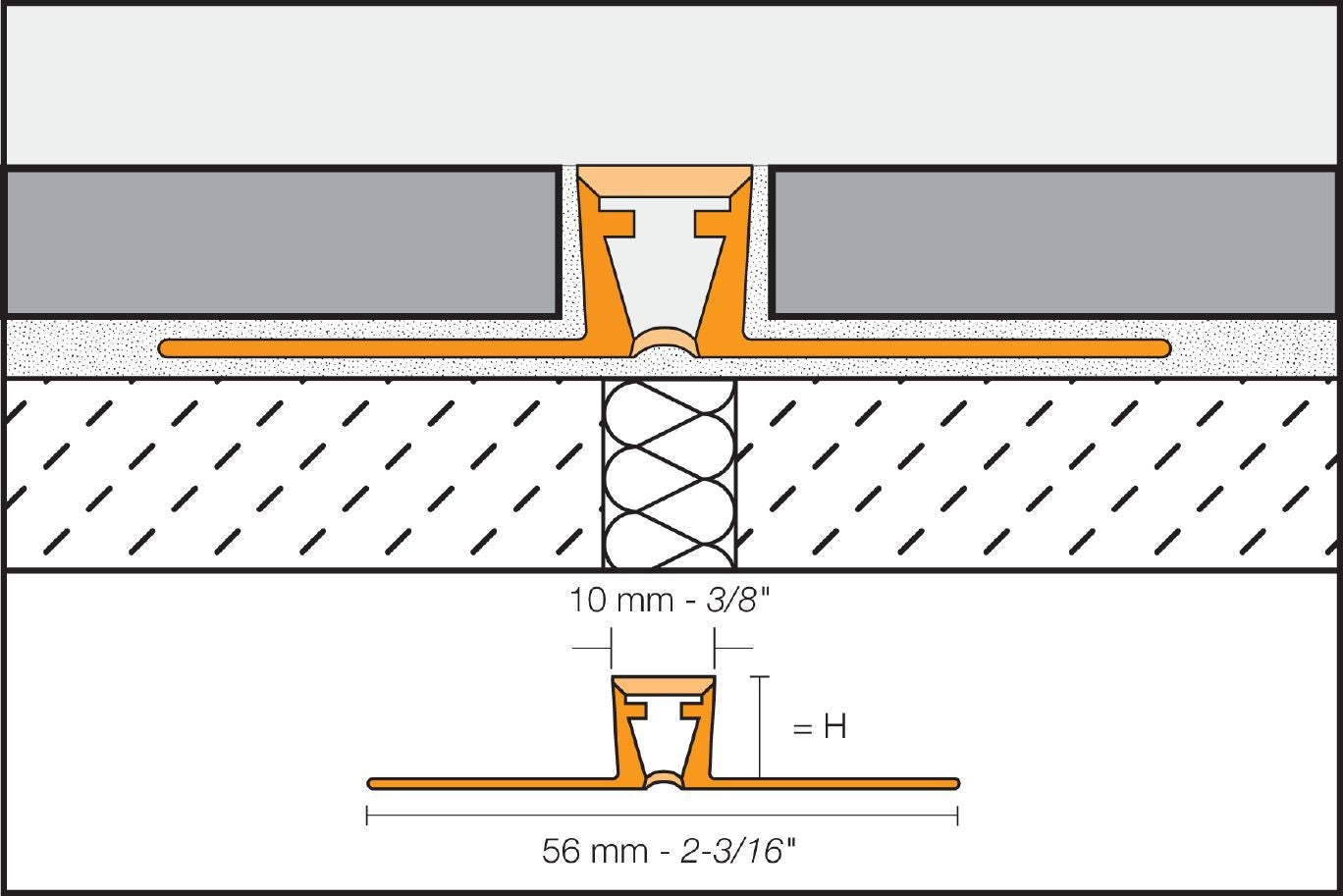

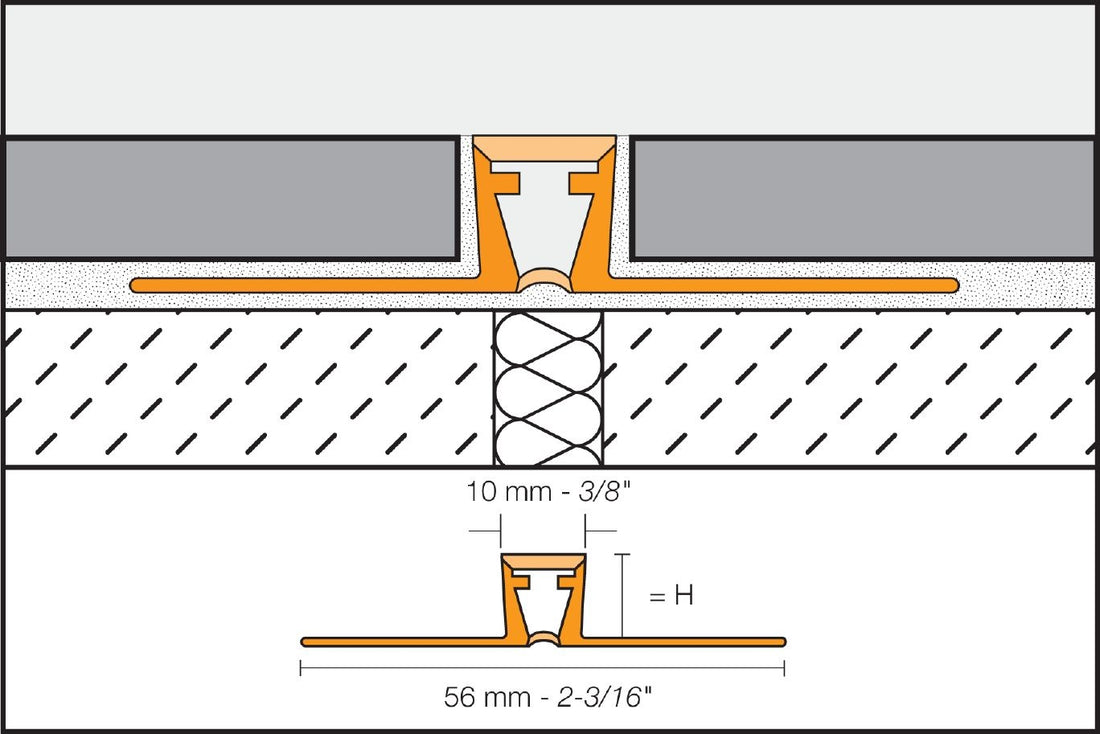

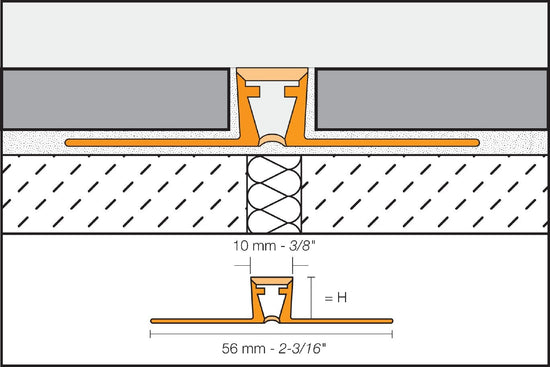

The Schluter‑DILEX‑BWB is a prefabricated surface joint profile whose rigid PVC anchoring flanges effectively protect tile edges. These flanges are connected by a central flexible movement zone made of flexible chlorinated polyethylene (CPE) measuring 3/8" (10 mm), which segments the covering ... Read more

Specifications

Manufacturer	Schluter
Colour	Grey
Manufacturer colour	Dark anthracite
Warranty	Movement joint and groove profiles - Limited 5-year warranty
Warranty (years)	5
Height (mm)	10
Height (in.)	0.38
Height (inches - fraction)	3/8
Width (mm)	56
Width (in.)	2.19
Width (inches - fraction)	2-3/16
Exposed surface width of moulding (mm)	10
Exposed surface width of moulding (in.)	0.38
Exposed surface width of moulding (inches - fraction)	3/8
Length (cm)	250
Length (m)	2.5
Length (in.)	98.5
Length (inches - fraction)	98-1/2
Material	PVC plastic
Collection name	DILEX-BWB
Weight (lb)	0.69
Profile	Surface joint profile
Indoor use	Yes
Intended for	Tile
Floor thickness for moulding (mm)	10
Floor thickness for moulding (in.)	0.38
Floor thickness for moulding (inches - fraction)	3/8

Number of unit(s)

Documents

Fiche Technique Profilé pour joints de mouvement (BWB100DA)Brochure Produits commerciaux (BWB100DA)Brochure Profilés (BWB100DA)Document de garantie Profilé joints de mouvement et à gorge (BWB100DA)

Technical information

Four new colours to simplify choosing a matching grout

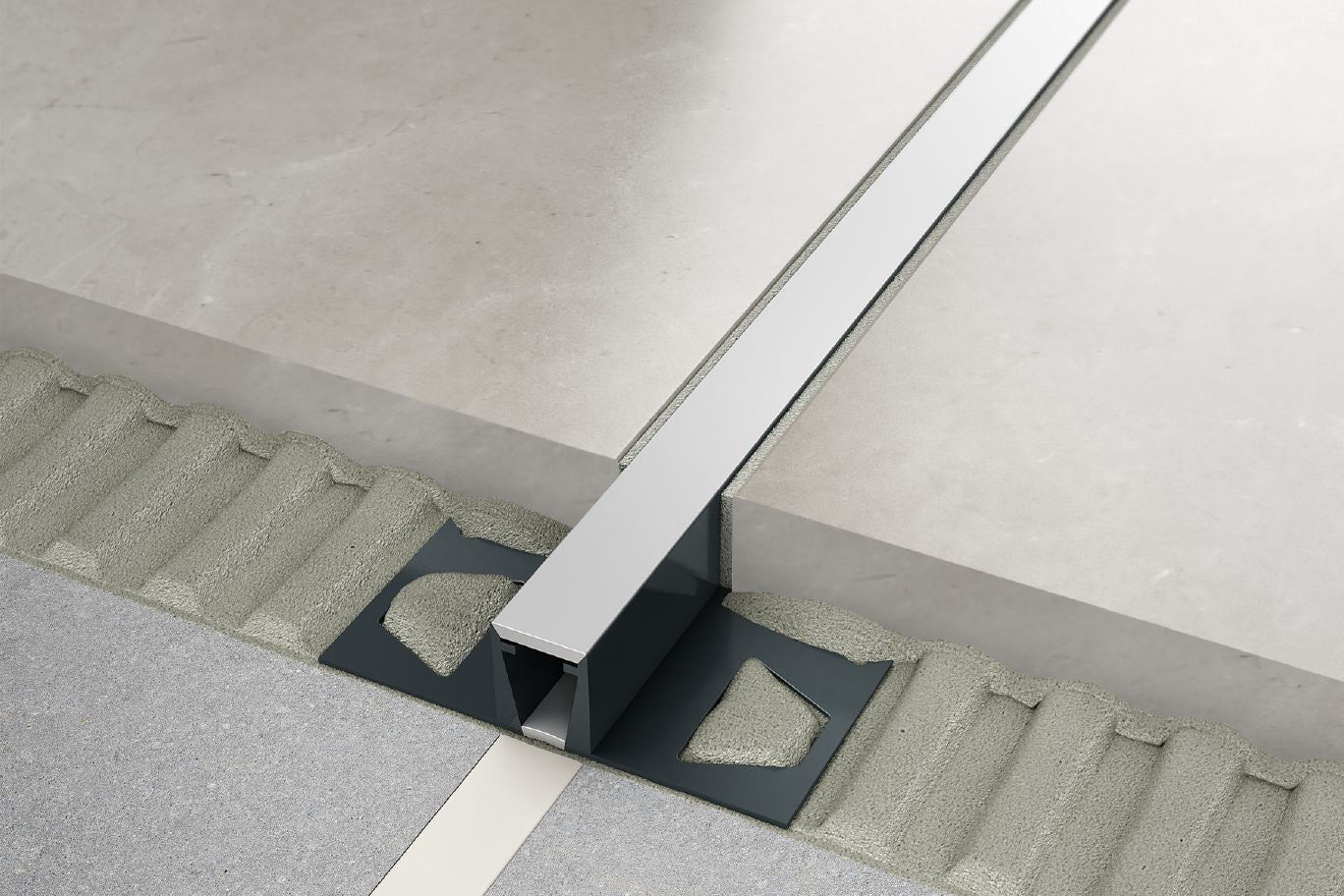

Allows movement and reduces mechanical stress in large tiled areas
Avoids the need to use caulking
Prevents tiles from cracking and coming loose
Suitable for residential and moderate-use commercial applications — ideal for offices and shops exposed to light mechanical loads
