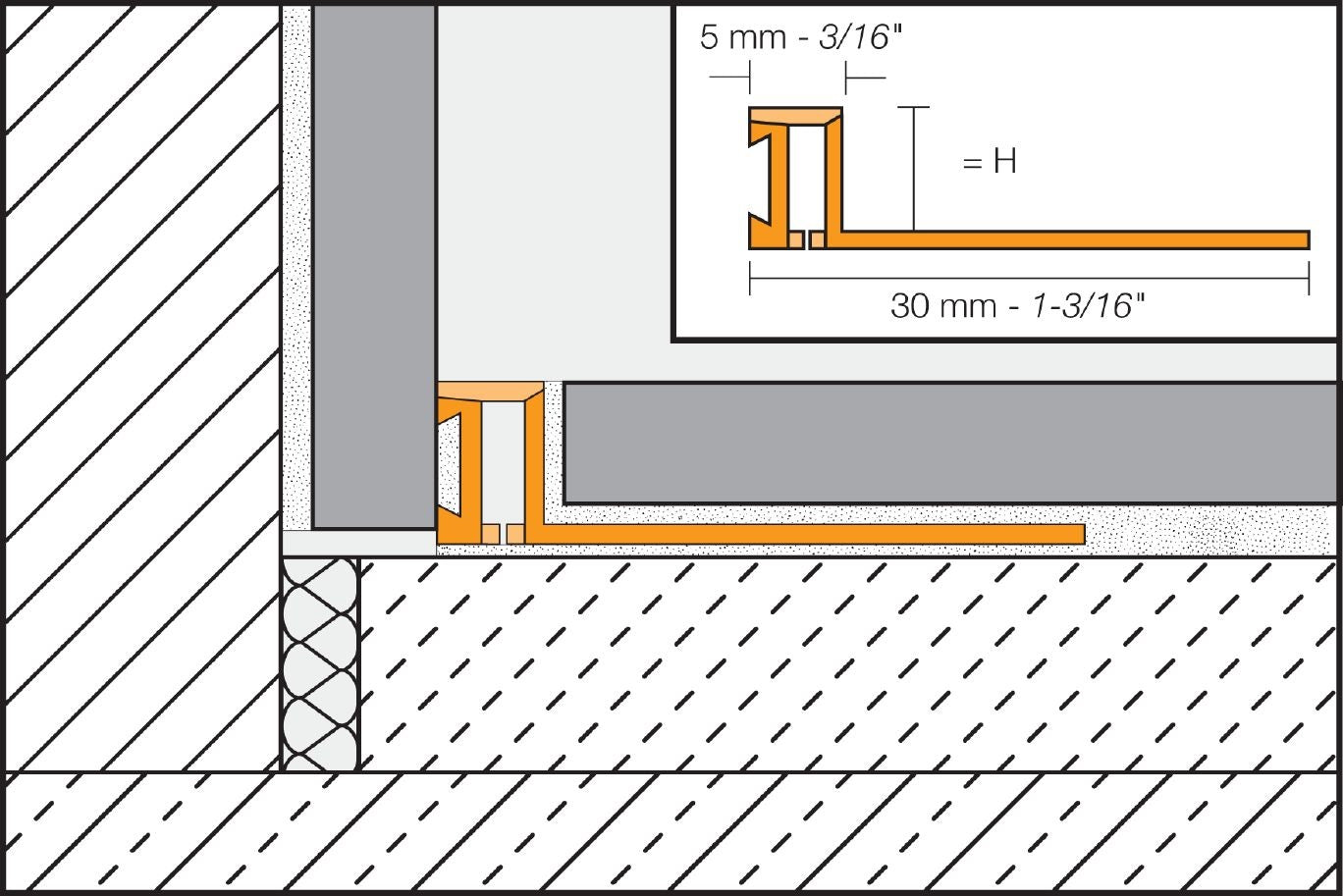

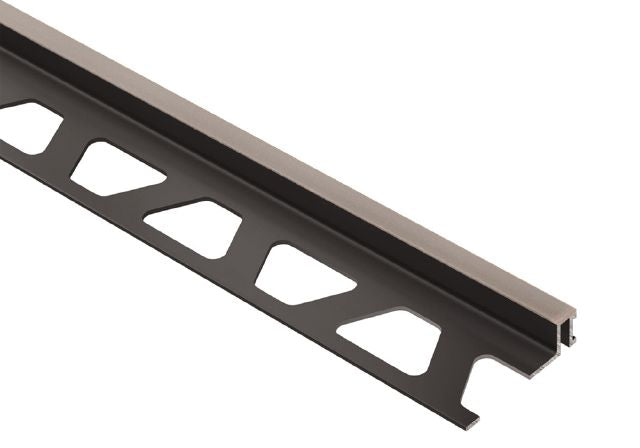

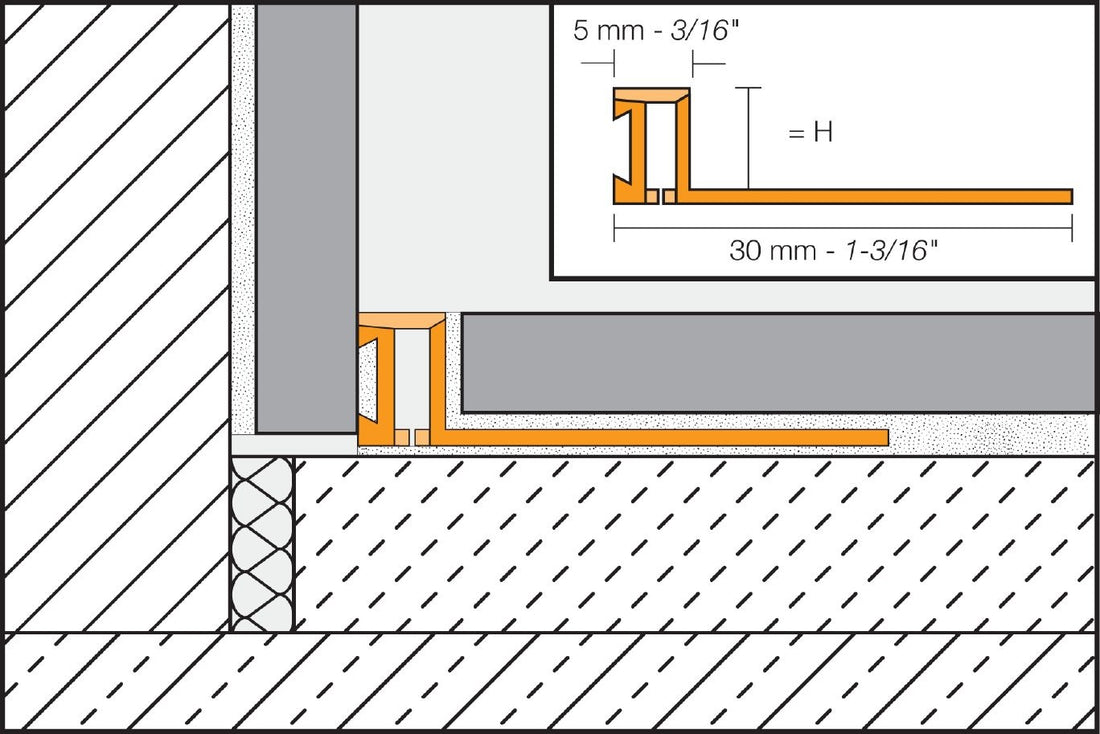

Schluter‑DILEX‑BWA consists of a perforated trapezoidal anchoring flange made of recycled rigid PVC, embedded in the mortar layer, and a dovetail channel, also in recycled rigid PVC, which can be bonded to the building's fixed elements (door and window frames, bathtubs and shower bases, counte... Read more
| Manufacturer | Schluter |
| Colour | Grey |
| Manufacturer colour | Grout grey |
| Warranty | Profiles for movement and groove joints - Limited 5-year warranty |
| Warranty (years) | 5 |
| Height (cm) | 0.45 |
| Height (mm) | 4.5 |
| Height (in.) | 0.19 |
| Height (inch fraction) | 3/16 |
| Width (cm) | 3 |
| Width (mm) | 30 |
| Width (in.) | 1.19 |
| Width (inch fraction) | 1-3/16 |
| Exposed face width of the profile (mm) | 5 |
| Exposed face width of the profile (in.) | 0.19 |
| Exposed face width of the profile (inch fraction) | 3/16 |
| Length (cm) | 250 |
| Length (m) | 2.5 |
| Length (ft) | 8.21 |
| Length (in.) | 98.5 |
| Length (inch fraction) | 98-1/2 |
| Material | PVC plastic |
| Collection name | DILEX-BWA |
| Colour number | FG |
| Weight (kg) | 0.16 |
| Weight (lb) | 0.35 |
| Type of anchoring fin | Perforated trapezoid |
| Channel type | Dovetail channel in rigid PVC that can be bonded to fixed building elements |
| Movement joint type | CPE movement area that isolates the tiled covering from fixed building elements |
| Type of profile transition | Perimeter joint profile |
| Interior use | Yes |

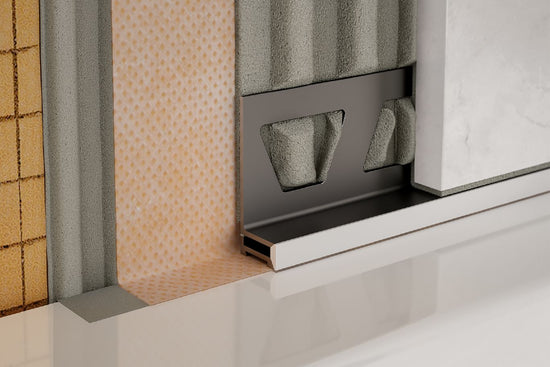

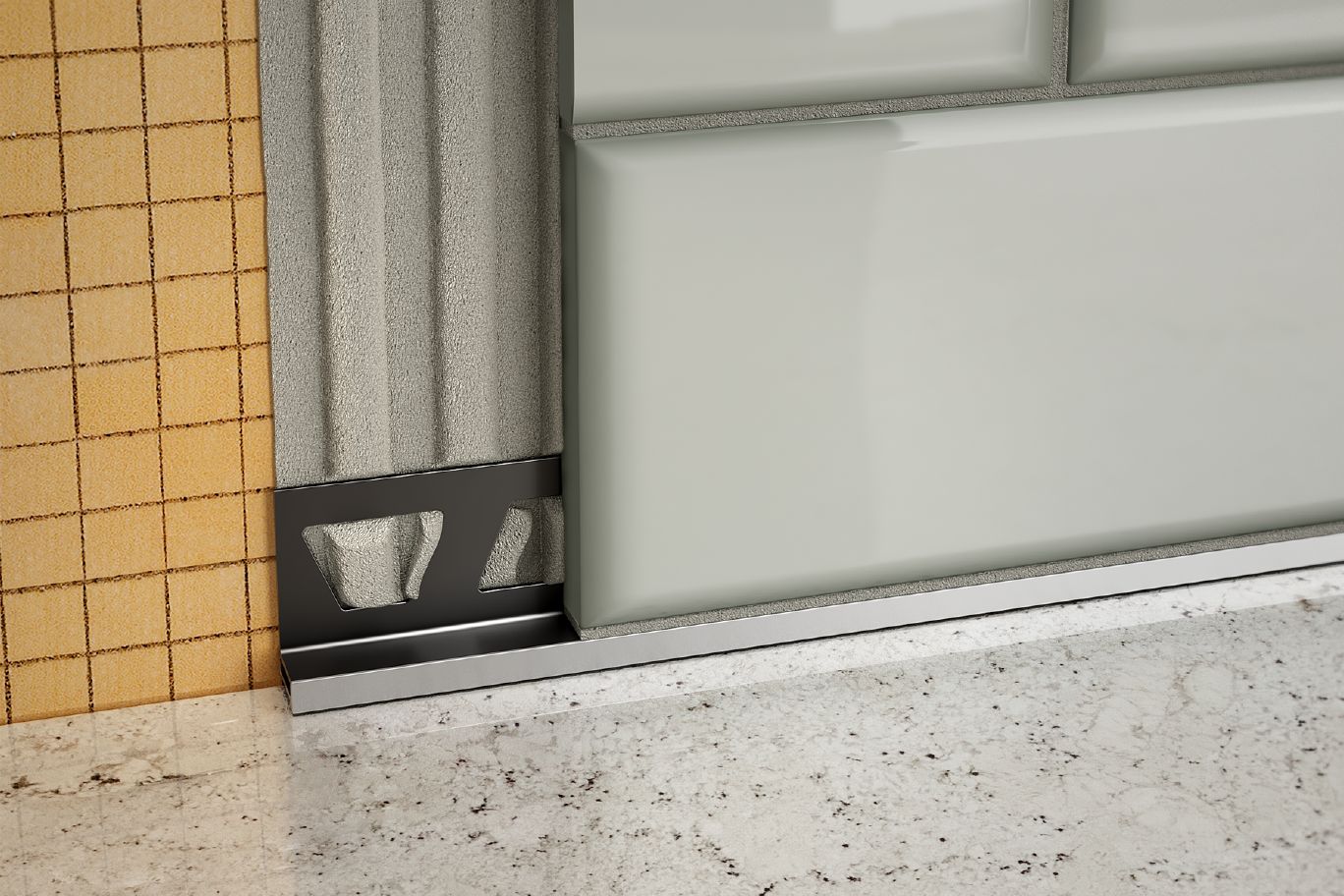

| Intended use | To allow movement and reduce stress in large tiled areas | Bathtubs, shower bases and door/window frames |
| Use on | Floor and wall |
| Wall thickness for the profile (mm) | 4.5 |
| Wall thickness for the profile (in.) | 0.19 |
| Wall thickness for the profile (inch fraction) | 3/16 |
| Floor thickness for the profile (mm) | 4.5 |
| Floor thickness for the profile (in.) | 0.19 |
| Floor thickness for the profile (inch fraction) | 3/16 |
