Schluter DILEX-BWA Perimeter movement joint profile isolating tile from structures - PVC grout grey 3/8" (10 mm) x 8' 2-1/2"

Regular price: $28.53

Description

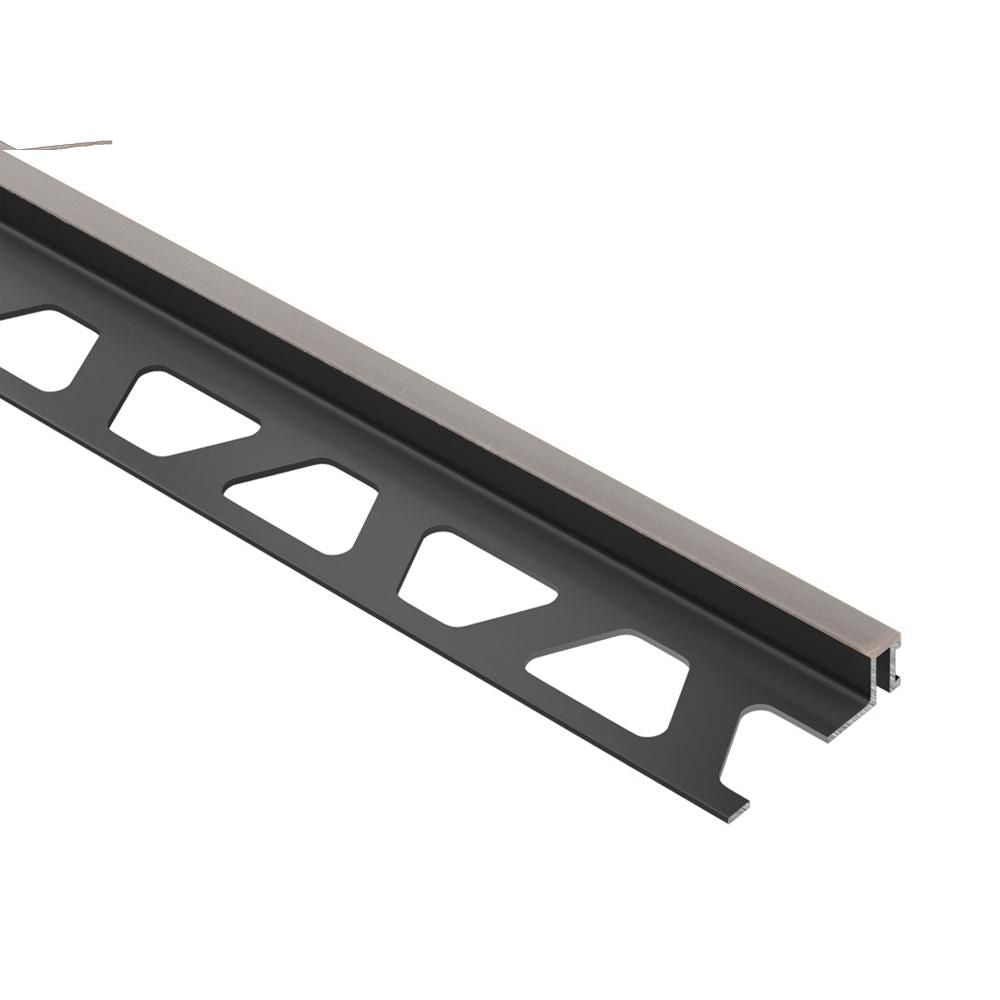

The Schluter-DILEX-BWA is a perimeter joint profile equipped with a rigid PVC anchoring flange and a flexible CPE movement zone 3/16" (5 mm) wide. It separates the tiled covering from fixed elements (e.g., bathtub, shower base, door or window frame).

Specifications

Manufacturer	Schluter
Colour	Grey
Manufacturer colour	Grout Grey
Warranty	Movement and groove profiles - Limited 5-year warranty
Warranty (years)	5
Height (mm)	10
Height (in.)	0.38
Height (inch fraction)	3/8
Width (mm)	30
Width (in.)	1.19
Width (in. fraction)	1-3/16
Width of molding exposed surface (mm)	5
Width of molding exposed surface (in.)	0.19
Width of molding exposed surface (in. fraction)	3/16
Length (cm)	250
Length (m)	2.5
Length (in.)	98.5
Length (in. fraction)	98-1/2
Material	PVC plastic
Collection name	DILEX-BWA
Weight (lb)	0.36
Molding transition type	perimeter joint
Indoor use	Yes
For use with	Tile
Floor thickness for molding (mm)	10
Floor thickness for molding (in.)	0.38
Floor thickness for molding (in. fraction)	3/8

Number of unit(s)

Documents

Fiche Technique Profilés pour joints de mouvement (BWA100FG)Document de garantie Profilés joints de mouvements et à gorge (BWA100FG)

Technical information

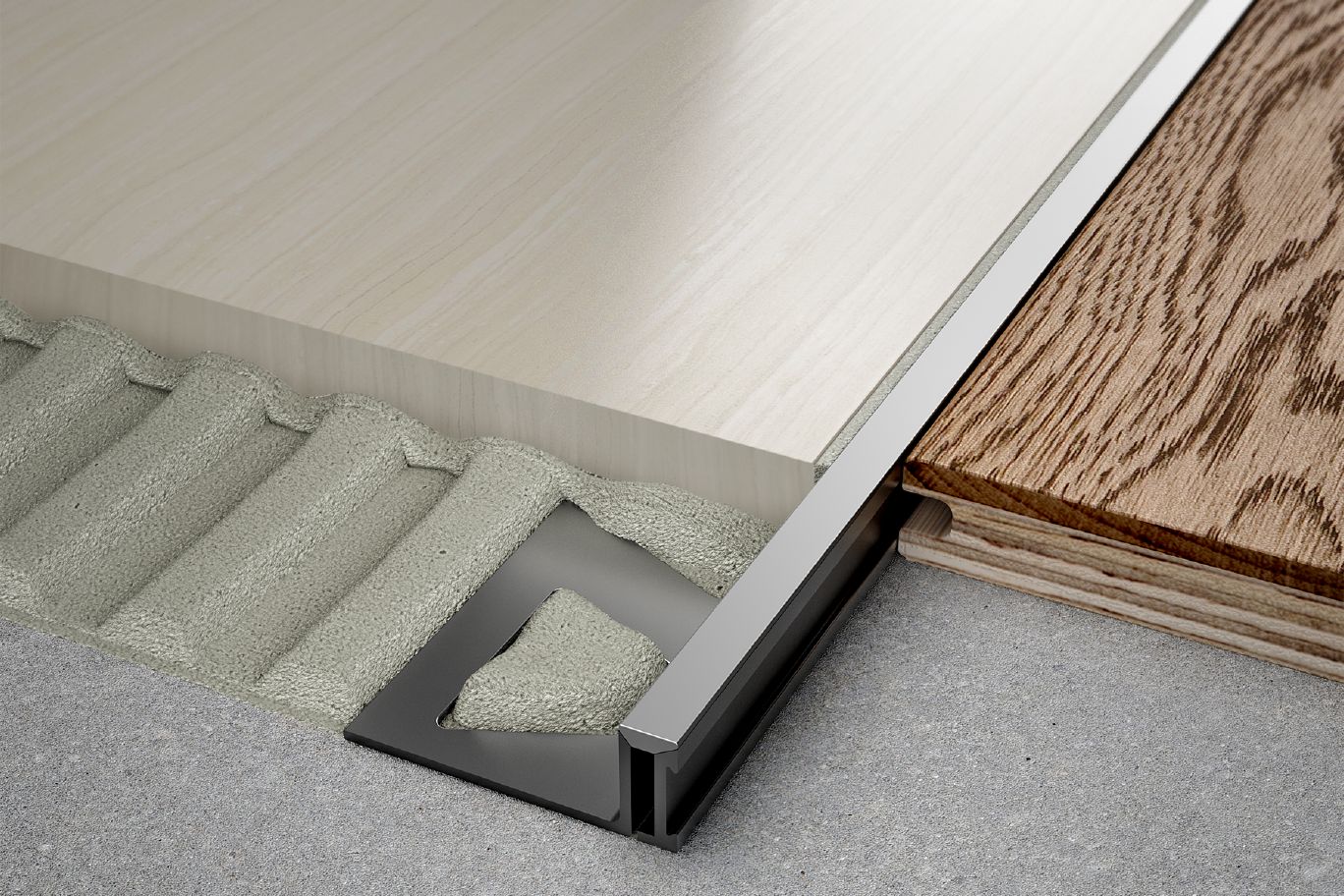

Allows movement and reduces mechanical stress in large tiled areas, protecting the integrity of the tile installation.
Prevents tiles from cracking and coming loose.
Eliminates the need for caulking for a clean, durable finish.

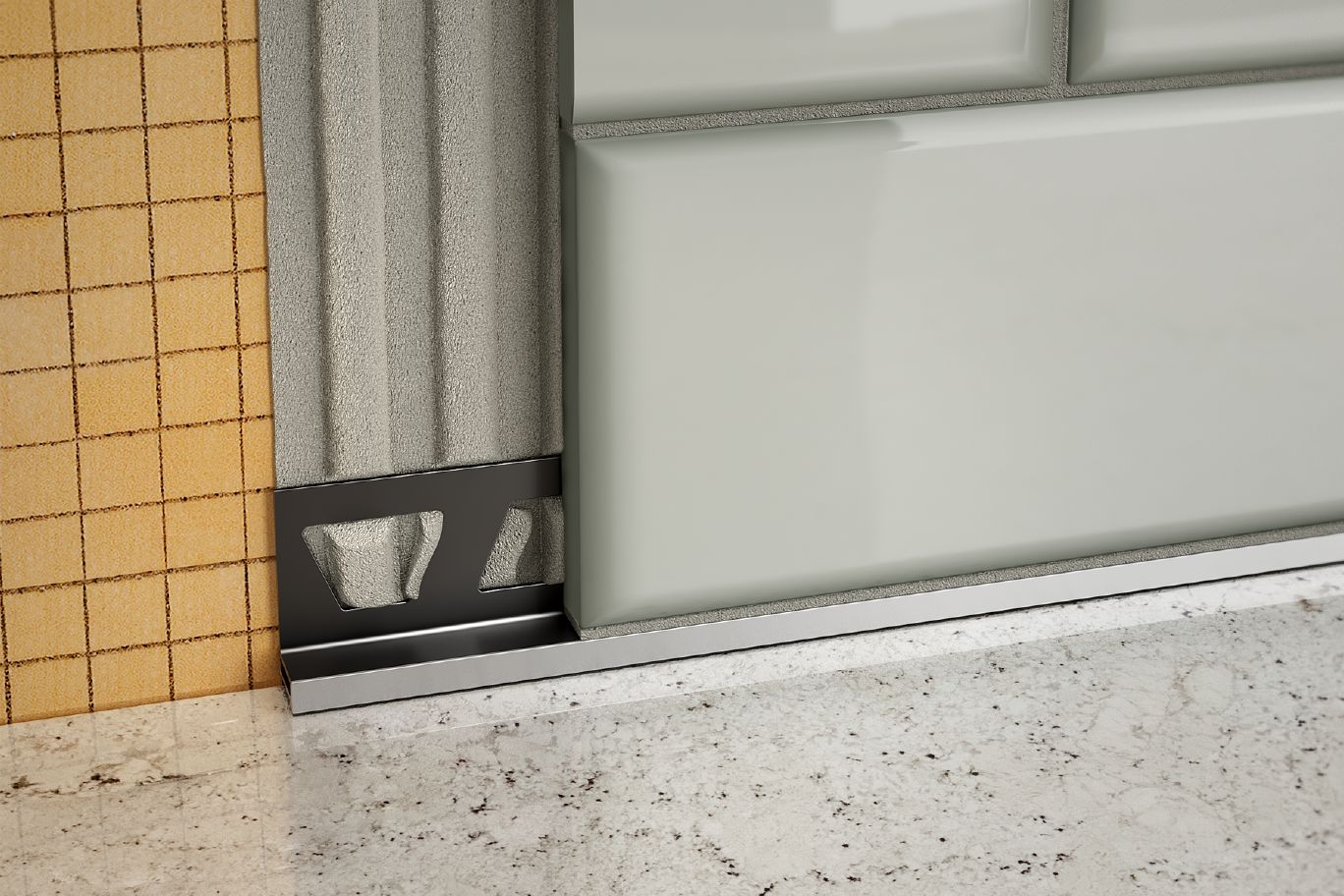

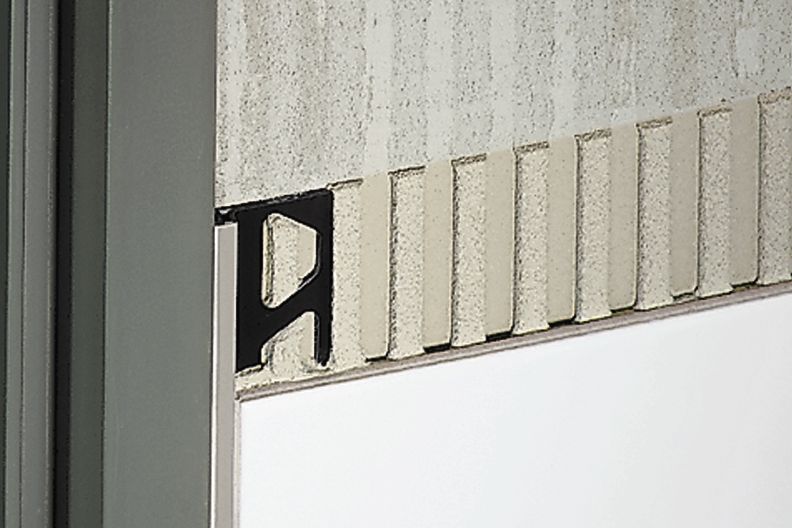

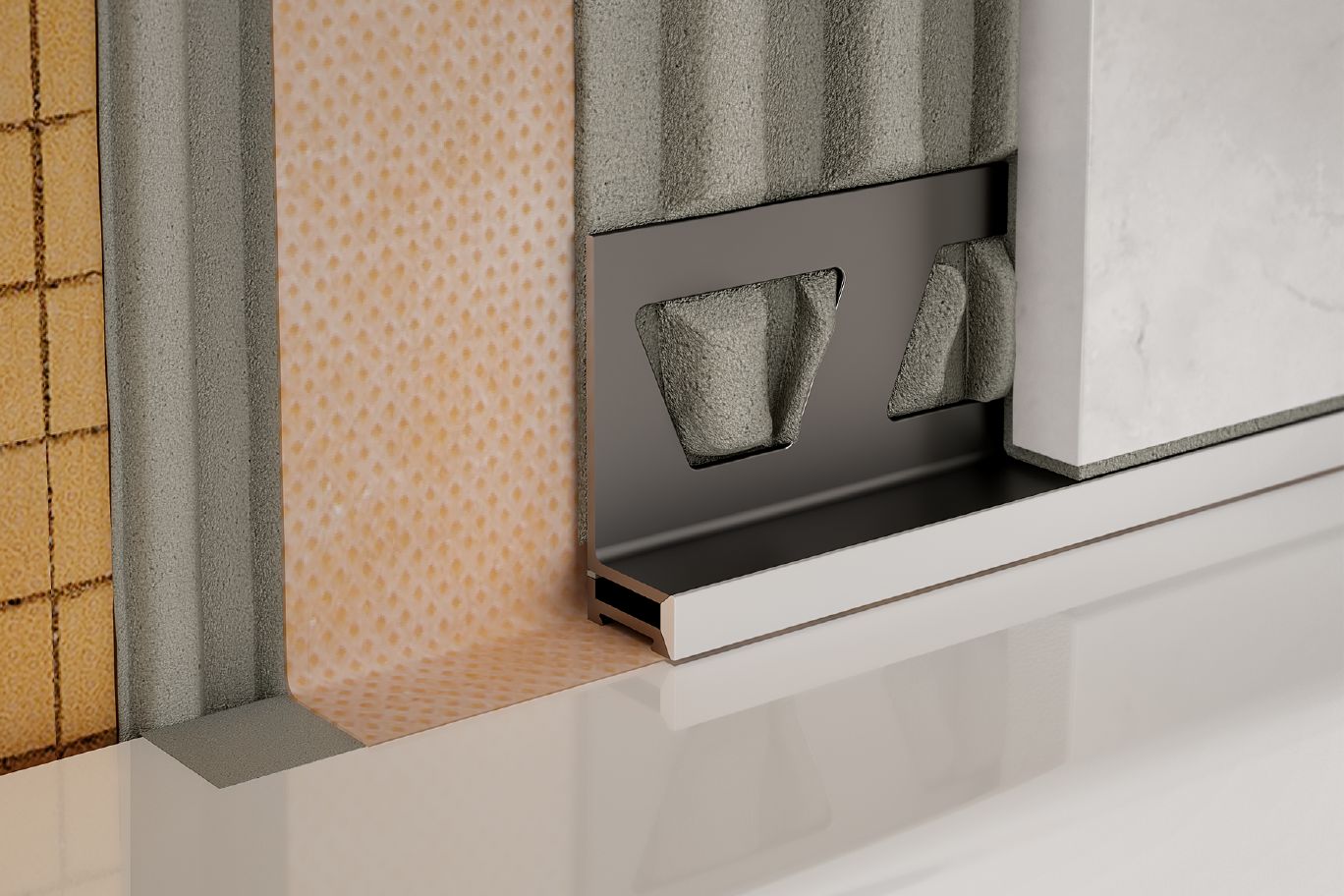

Ideal for bathtubs, shower bases, and door and window frames.
Profile with a rigid PVC dovetail groove, designed to be adhered to fixed elements.
Four new colours available to match the movement area to the grout.
