Schluter DILEX-BTO Expansion joint profile - matte anodized aluminum 3/8" (10 mm) x 8' 2-1/2"

From
$195.05

Description

Schluter-DILEX-BTO is an expansion joint profile designed to separate walls and floors and absorb movement. Manufactured from aluminum, it relieves stresses in the tiled field and prevents damage caused by movement over time. The aluminum construction covers the visible surface and flanks, ens... Read more

Specifications

ManufacturerSchluter
FinishMatte
WarrantyProfiles for movement and groove joints - Limited 5-year warranty
Warranty (years)5

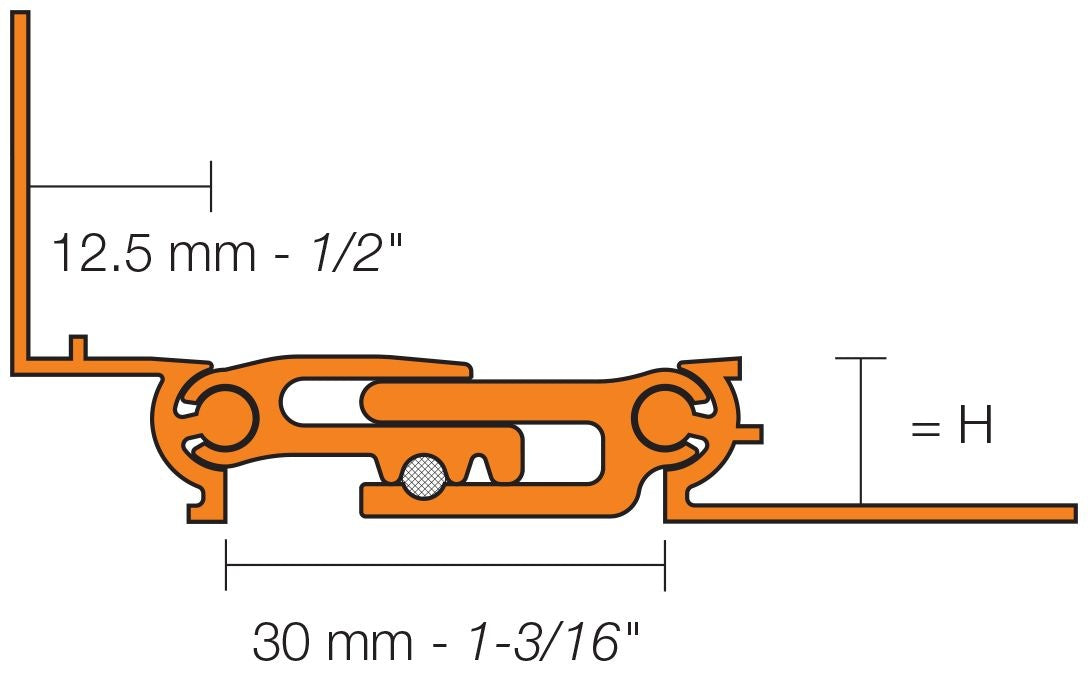

Height (mm)10
Height (in.)0.38
Height (in. fraction)3/8
Width (mm)30
Width (in.)1.19
Width (in. fraction)1-3/16
Length (cm)250
Length (m)2.5
Length (in.)98.5
Length (in. fraction)98-1/2
MaterialAnodized aluminium
Collection nameDILEX-BTO
Weight (lb)4.98
ProfileExpansion joint profile

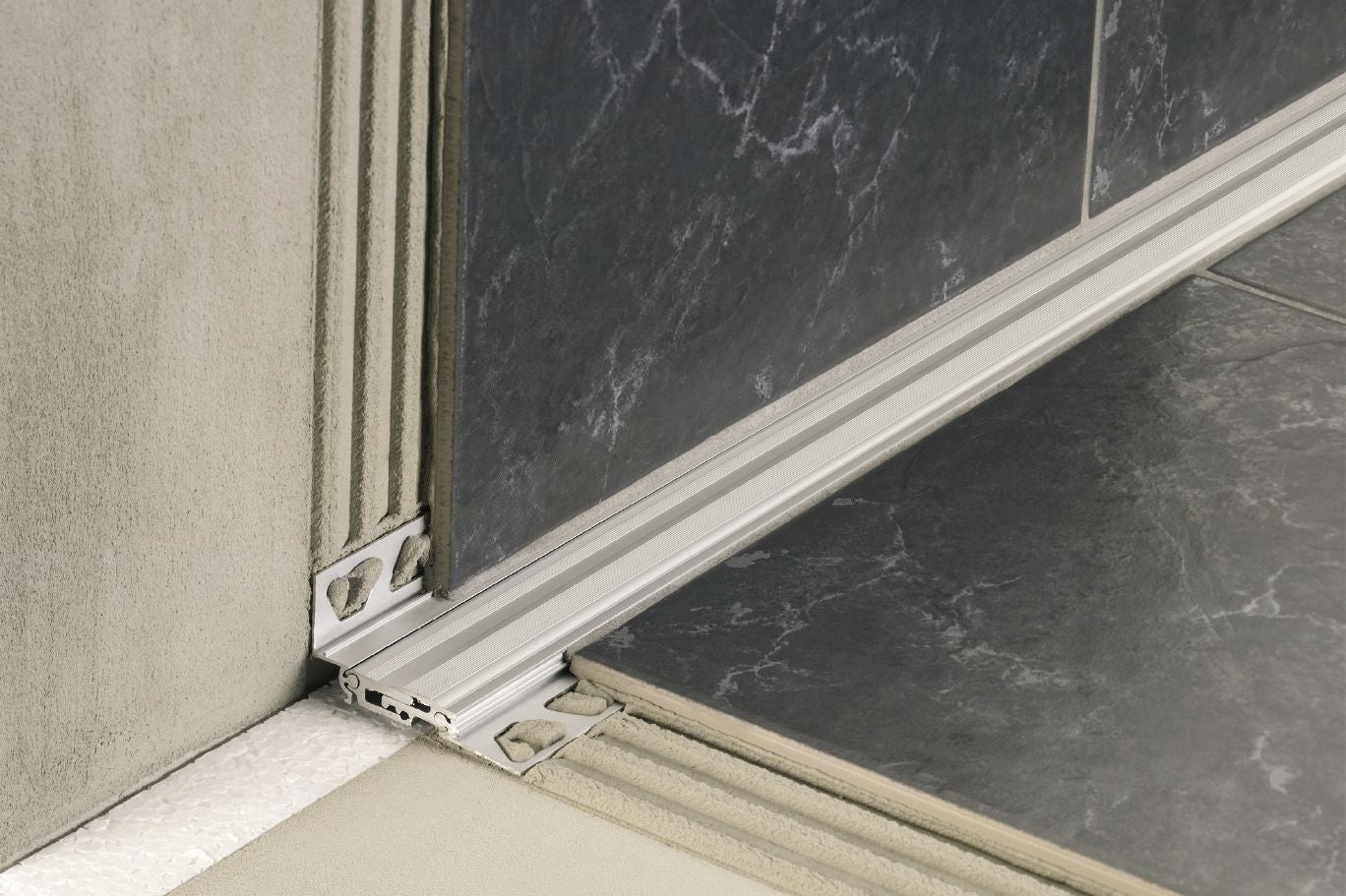

Type of profile transitionfloor/wall transitions
Indoor useYes
Use forTile
Wall thickness for the profile (mm)12.5
Wall thickness for the profile (in.)0.5
Wall thickness for the profile in fraction (in. fraction)1/2
Floor thickness for the profile (mm)10
Floor thickness for the profile (in.)0.38
Floor thickness for the profile in fraction (in. fraction)3/8

Number of unit(s)

Documents

Technical Data Sheet - Profiles for movement joints (AEBT100O125)Warranty document - Profiles for movement and groove joints (AEBT100O125)

Technical information
  • Allows movement and reduces mechanical stress in large tiled areas, preventing cracking and tile delamination
  • Eliminates the need for sealant for a clean, durable solution
  • Maintenance-free for simple and economical use
  • Ideal for tiled coverings exposed to pedestrian and vehicular traffic
  • Suitable for floors maintained with heavy-duty cleaning equipment
