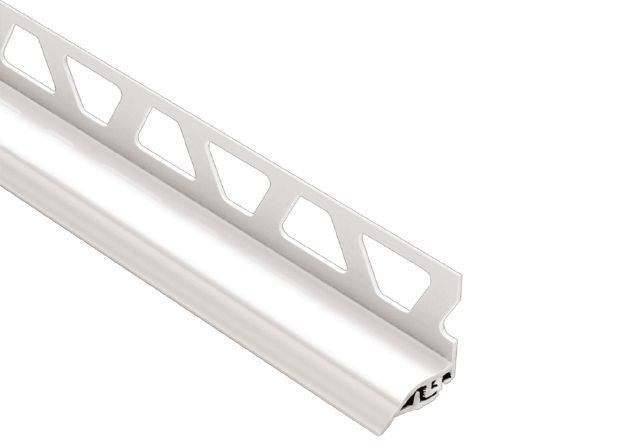

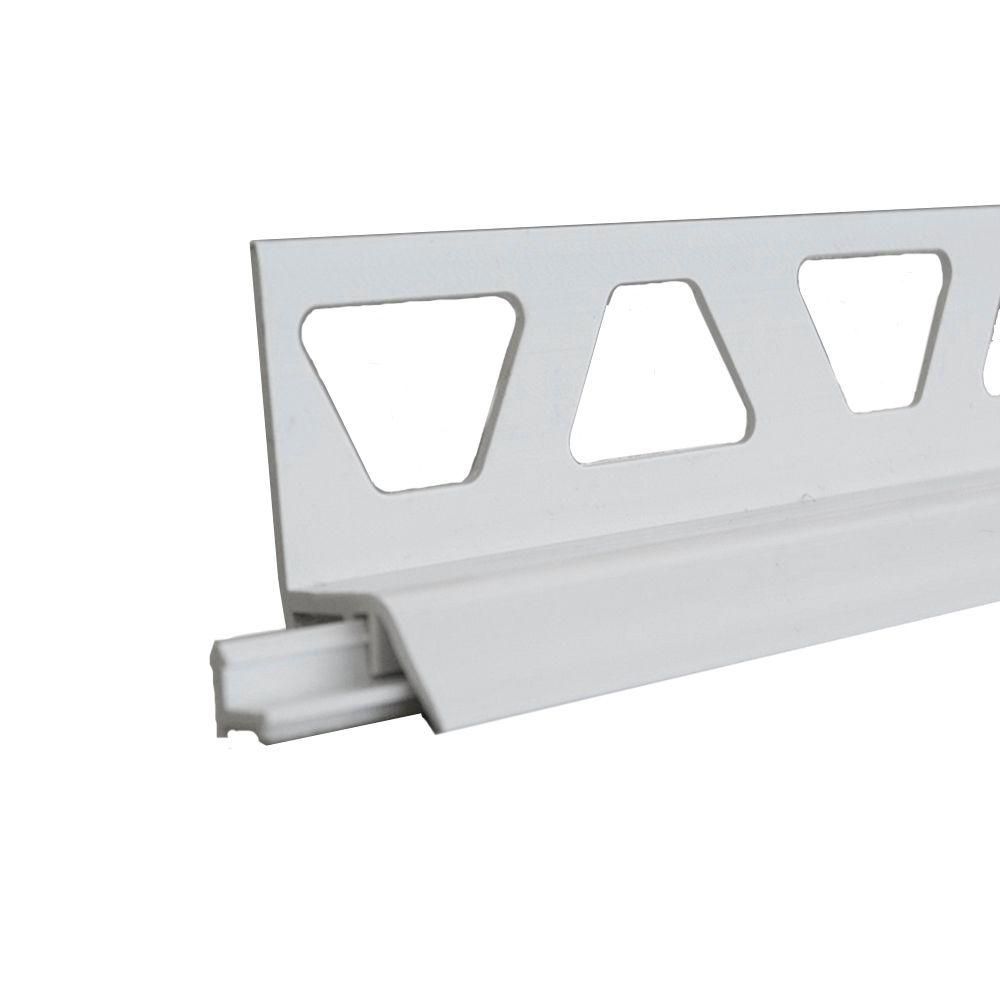

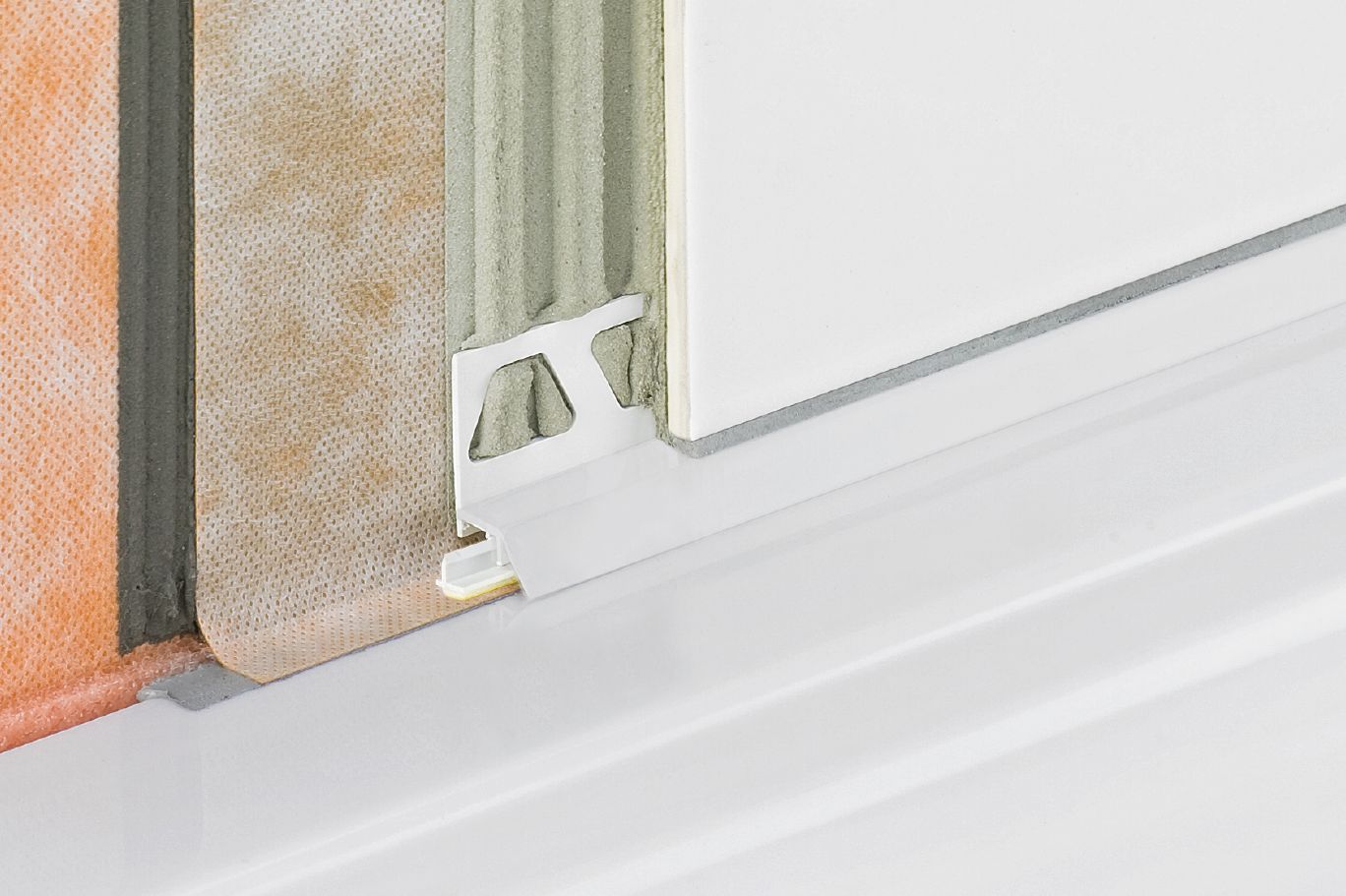

The Schluter‑DILEX‑AS is a perimeter joint profile featuring a rigid PVC anchoring fin and an additional flexible fin with a self-adhesive tape, intended to secure the profile to fixed elements (for example: bathtub, shower base, window frame).
| Manufacturer | Schluter |
| Colour | White |
| Manufacturer colour | Bright white |
| Warranty | Profiles for movement and groove joints — Limited 5-year warranty |
| Warranty (years) | 5 |

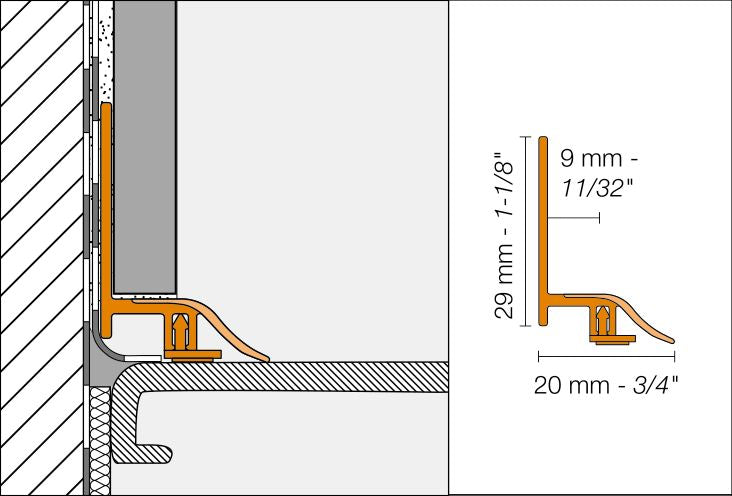

| Height (mm) | 29 |
| Height (in.) | 1.13 |
| Height (inch fraction) | 1-1/8 |
| Width (mm) | 20 |
| Width (in.) | 0.75 |
| Width (inch fraction) | 3/4 |
| Length (cm) | 250 |
| Length (m) | 2.5 |
| Length (in.) | 98.5 |
| Length (inch fraction) | 98-1/2 |
| Material | PVC plastic |
| Collection name | DILEX-AS |
| Weight (lb) | 0.56 |
| Moulding transition type | Perimeter joint |
| Indoor use | Yes |
| Use for | Tile |
| Maximum tile thickness (mm) | 12 |
| Maximum tile thickness (in.) | 0.38 |
| Maximum tile thickness (inch fraction) | 3/8 |
| Minimum tile thickness (mm) | 4 |
| Minimum tile thickness (in.) | 0.19 |
| Minimum tile thickness (inch fraction) | 3/16 |
| Wall thickness for the moulding (mm) | 9 |
| Wall thickness for the moulding (in.) | 0.34 |
| Wall thickness for the moulding (inch fraction) | 11/32 |
