Schluter KERDI-LINE Off-centre linear drain channel assembly 39-3/8\"

Regular price: $469.67

Description

The Schluter-KERDI-LINE is a recessed linear drain designed to integrate with bonded waterproofing systems. It can be installed along a wall or in the centre of a shower, steam shower or any other wet area requiring reliable waterproofing and efficient water drainage.

Specifications

Manufacturer	Schluter
Approved for shower use	Yes
Warranty	Shower System and Floor Drains - Limited 10-year warranty
Warranty (years)	10
Height (mm)	120
Height (in.)	0.3871
Height (in. fraction)	25/64
Waterproof	No
Width (mm)	250
Width (in.)	39.38
Width (in. fraction)	39-3/8
Length (mm)	1371
Length (in.)	39.38
Length (in. fraction)	39-3/8
Material	Stainless steel (V4)
Collection name	KERDI-LINE
Weight (lb)	7.43
Water resistance	Yes
Shower drain type	Linear drain
Indoor use	Yes
Intended for	Stone and ceramic

Number of unit(s)

Documents

Floor Drains Data Sheet (KL1VO60E100)Shower System Data Sheet (KL1VO60E100)Drain Grates Brochure (KL1VO60E100)Curbless Shower Brochure (KL1VO60E100)Shower System Brochure (KL1VO60E100)Shower System Warranty Document (KL1VO60E100)Floor Drains Warranty Document (KL1VO60E100)User Guide Shower Checklist (KL1VO60E100)User Guide Shower System Installation Manual (KL1VO60E100)

Technical information

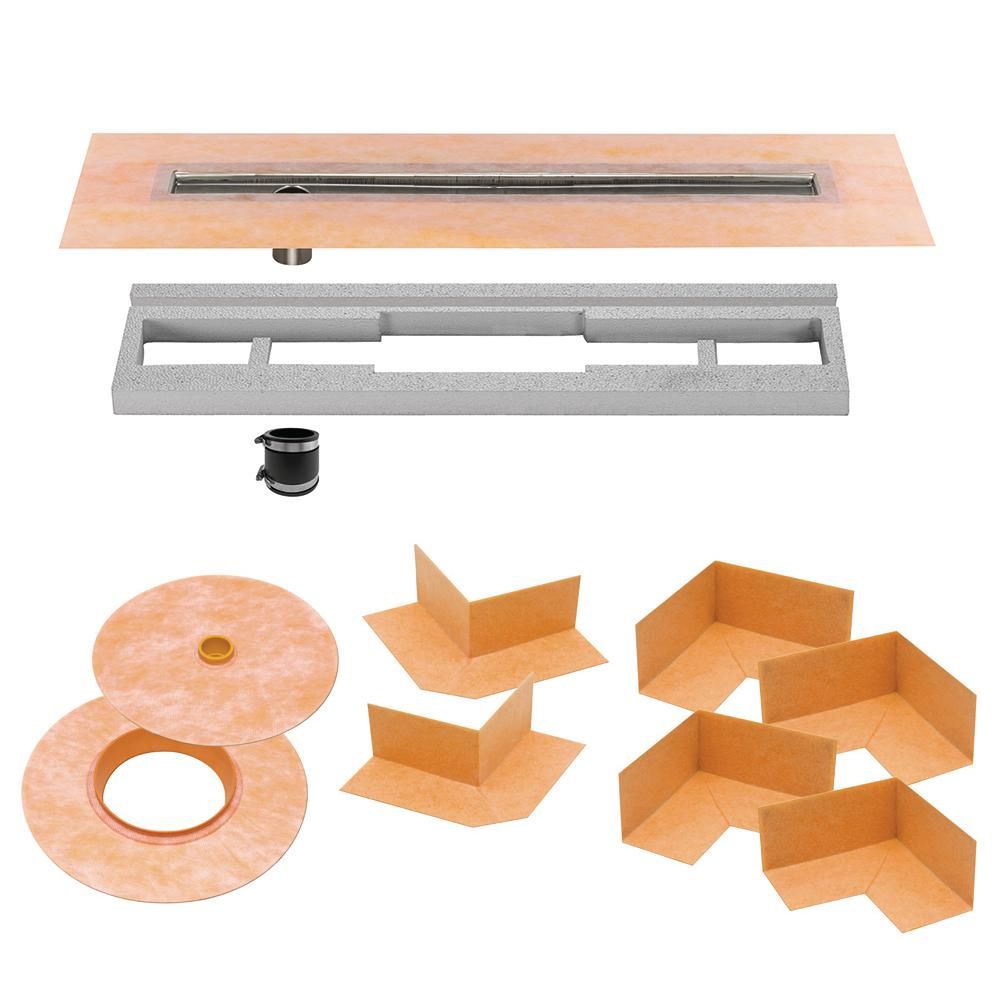

Set contents: 1 KERDI-LINE drain body with KERDI bonding flange, 1 drain support, 1 mechanical coupling, preformed KERDI-KERECK sealing corners (4 internal, 2 external), 1 KERDI-SEAL-PS 3/4" pipe sleeve and 1 KERDI-SEAL-MV 4-1/2" valve sleeve
KERDI-LINE grate sold separately
Designed for open-plan installations
Allows a single slope converging to the drain, ideal for the use of large-format tiles
Stainless steel body with KERDI bonding flange for an effective watertight connection
Compatible with ceramic and natural stone tiles of all common thicknesses
