Schluter KERDI-LINE Recessed linear drain with Square grate design with locking - brushed stainless steel (V4) 3/4" x 51-3/16"

Regular price: $612.17

Description

The Schluter‑KERDI‑LINE is a recessed linear drain designed to integrate into bonded waterproofing assemblies. It can be installed along a wall or in the center of a shower, steam shower, wet room, or any area requiring a watertight drainage solution.

Specifications

Manufacturer	Schluter
Approved for shower	Yes
Design	Square locking
Finish	Brushed
Warranty	Shower System and Floor Drains - Limited 10-year warranty
Warranty (years)	10
Height (mm)	39
Height (in.)	0.3800
Height (in. - fraction)	3/8
Waterproof	No
Width (mm)	110
Width (in.)	43.31
Width (in. - fraction)	43-5/16
Length (mm)	1315
Length (in.)	43.31
Length (in. - fraction)	43-5/16
Material	Stainless steel (V4)
Collection name	KERDI-LINE
Weight (lb)	6.11
Water resistance	Yes
Shower drain type	Linear drain
Indoor use	Yes
Use for	Stone and Ceramic

Number of unit(s)

Documents

Technical Data Sheet Shower System (KL1BL19EB130)Technical Data Sheet Floor Drains (KL1BL19EB130)Brochure Shower System (KL1BL19EB130)Brochure Drain Grates (KL1BL19EB130)Brochure Barrier-free Showers (KL1BL19EB130)Warranty Document Shower System (KL1BL19EB130)Warranty Document Floor Drains (KL1BL19EB130)User Guide Shower System Installation Manual (KL1BL19EB130)User Guide Shower Checklist (KL1BL19EB130)

Technical information

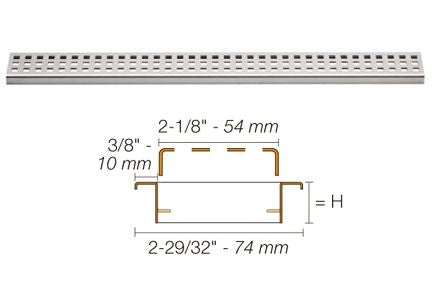

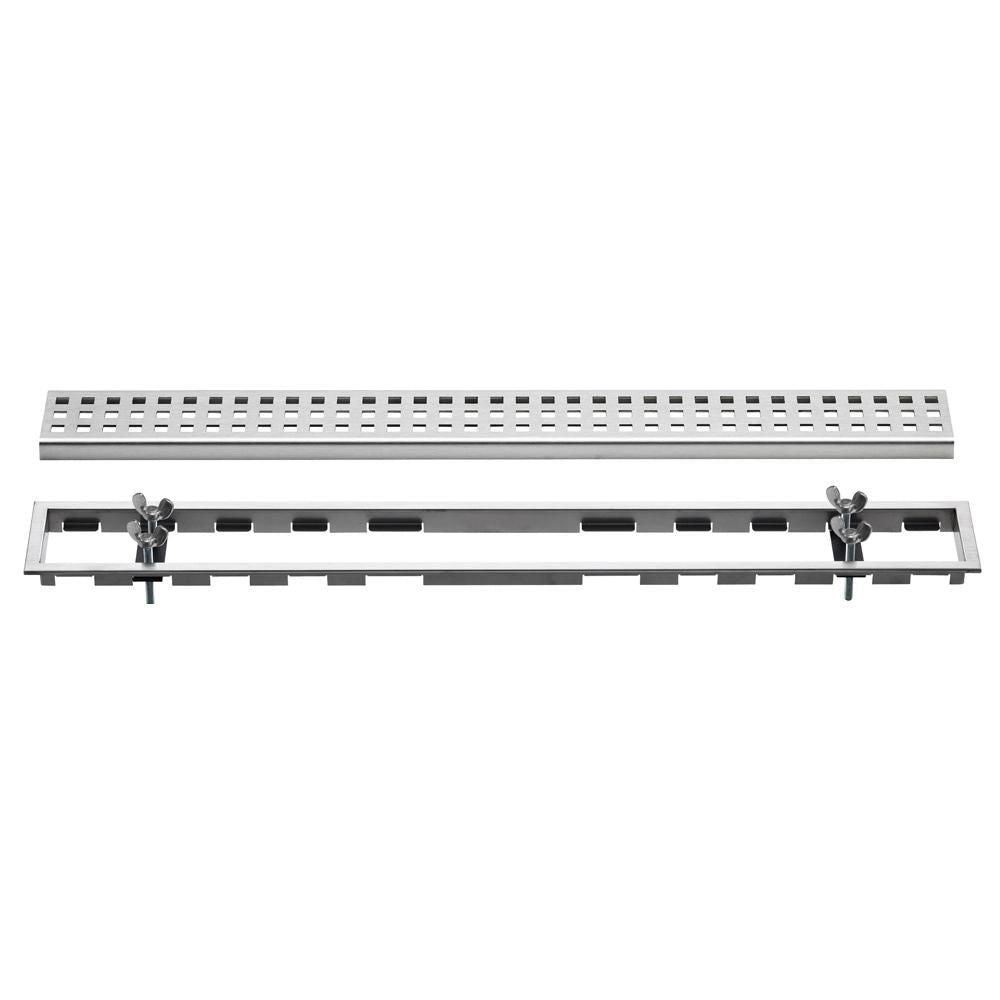

Set contents: 1 perforated grate with frame and locking mechanism, and a second grate, both in brushed stainless steel
KERDI-LINE drain body sold separately — remember to select it
Ideal for open-space designs
Allows a single slope converging to the channel, facilitating the use of large-format tiles
Compatible with ceramic and natural stone tiles of all common thicknesses
Available in lengths from 20\" to 72\" (50 to 180 cm)
SQUARE and SOLID design grate models are used with KERDI-LINE-FC for a harmonized appearance when multiple channels are assembled
