Schluter KERDI-LINE Recessed linear drain with Square grate design with locking - brushed stainless steel (V4) 3/4" x 23-5/8"

Regular price: $349.34

Description

The Schluter‑KERDI‑LINE is a recessed linear drain designed to integrate into bonded waterproofing systems. It can be installed along a wall or in the center of a shower, steam shower or any other wet area requiring reliable waterproofing and efficient drainage.

Specifications

Manufacturer	Schluter
Approved for shower use	Yes
Design	Square locking
Finish	Brushed
Warranty	Shower System and Floor Drains - Limited 10-year Warranty
Warranty (years)	10
Height (mm)	39
Height (in.)	0.3800
Height (inches, fraction)	3/8
Waterproof	No
Width (mm)	110
Width (in.)	43.31
Width (inches, fraction)	43-5/16
Length (mm)	1315
Length (in.)	43.31
Length (inches, fraction)	43-5/16
Material	Stainless steel (V4)
Collection name	KERDI-LINE
Weight (lb)	3.97
Water resistance	Yes
Shower drain type	Linear drain
Indoor use	Yes
Use for	Stone and Ceramic

Number of unit(s)

Documents

Technical Data Sheet Floor Drains (KL1BL19EB60)Technical Data Sheet Shower System (KL1BL19EB60)Brochure Shower System (KL1BL19EB60)Brochure Barrier-free Showers (KL1BL19EB60)Brochure Drain Grates (KL1BL19EB60)Warranty Document Shower System (KL1BL19EB60)Warranty Document Floor Drains (KL1BL19EB60)User Guide Shower System Installation Manual (KL1BL19EB60)User Guide Shower Checklist (KL1BL19EB60)

Technical information

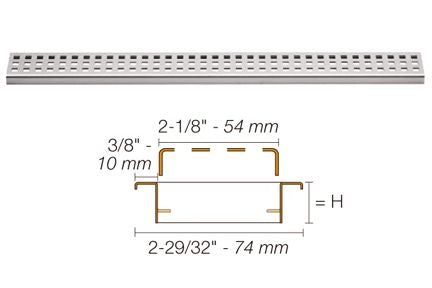

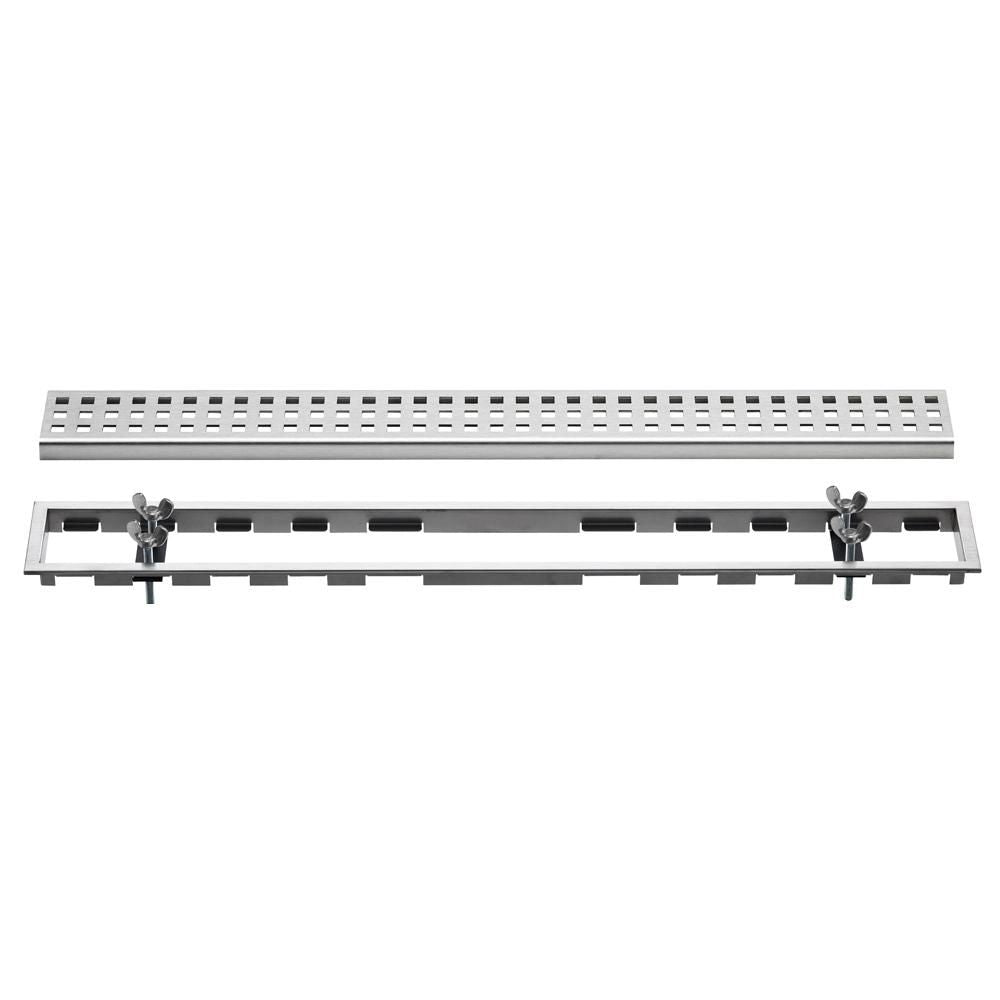

Set: 1 perforated grate with frame and locking mechanism + 1 grate in brushed stainless steel
KERDI-LINE channel body to be selected separately
Ideal for open spaces: allows a single slope converging to KERDI-LINE, facilitating the use of large-format tiles
Compatible with ceramic and natural stone tiles of all common thicknesses
Available lengths: 20" to 72" (50 to 180 cm)
The SQUARE and SOLID models are used with KERDI-LINE-FC for a harmonized appearance when installing multiple drains end to end
