Schluter KERDI-LINE Recessed linear drain with Square grate design - stainless steel (V4) chrome 3/4" x 35-7/16"

Regular price: $395.74

Description

The Schluter KERDI-LINE is a recessed linear drain designed to integrate with bonded waterproofing assemblies. It installs along a wall or at the center of a shower, steam shower, wet room, or any location requiring a watertight drainage solution.

Specifications

Manufacturer	Schluter
Approved for shower	Yes
Manufacturer colour	Chrome
Design	Square
Warranty	Shower System and Floor Drains - Limited 10-year warranty
Warranty (years)	10
Height (mm)	39
Height (in.)	0.3776
Height (in. - fraction)	3/8
Waterproof	No
Width (mm)	109
Width (in.)	35.44
Width (in. - fraction)	35-7/16
Length (mm)	1017
Length (in.)	35.44
Length (in. - fraction)	35-7/16
Material	Stainless steel (V4)
Collection name	KERDI-LINE
Weight (lb)	2.78
Water resistance	Yes
Shower drain type	Linear drain
Indoor use	Yes
Use for	Stone and Ceramic

Number of unit(s)

Documents

Shower System Technical Data Sheet (KL1B19EP90)Floor Drains Technical Data Sheet (KL1B19EP90)Shower System Brochure (KL1B19EP90)Drain Grates Brochure (KL1B19EP90)Curbless Showers Brochure (KL1B19EP90)Floor Drains warranty document (KL1B19EP90)Shower System warranty document (KL1B19EP90)User guide - Shower checklist (KL1B19EP90)User guide - Shower system installation manual (KL1B19EP90)

Technical information

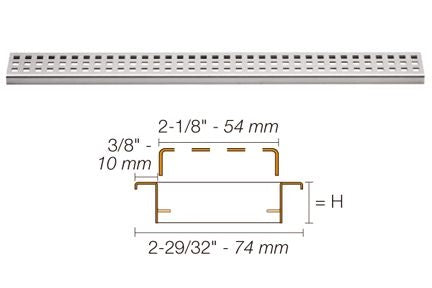

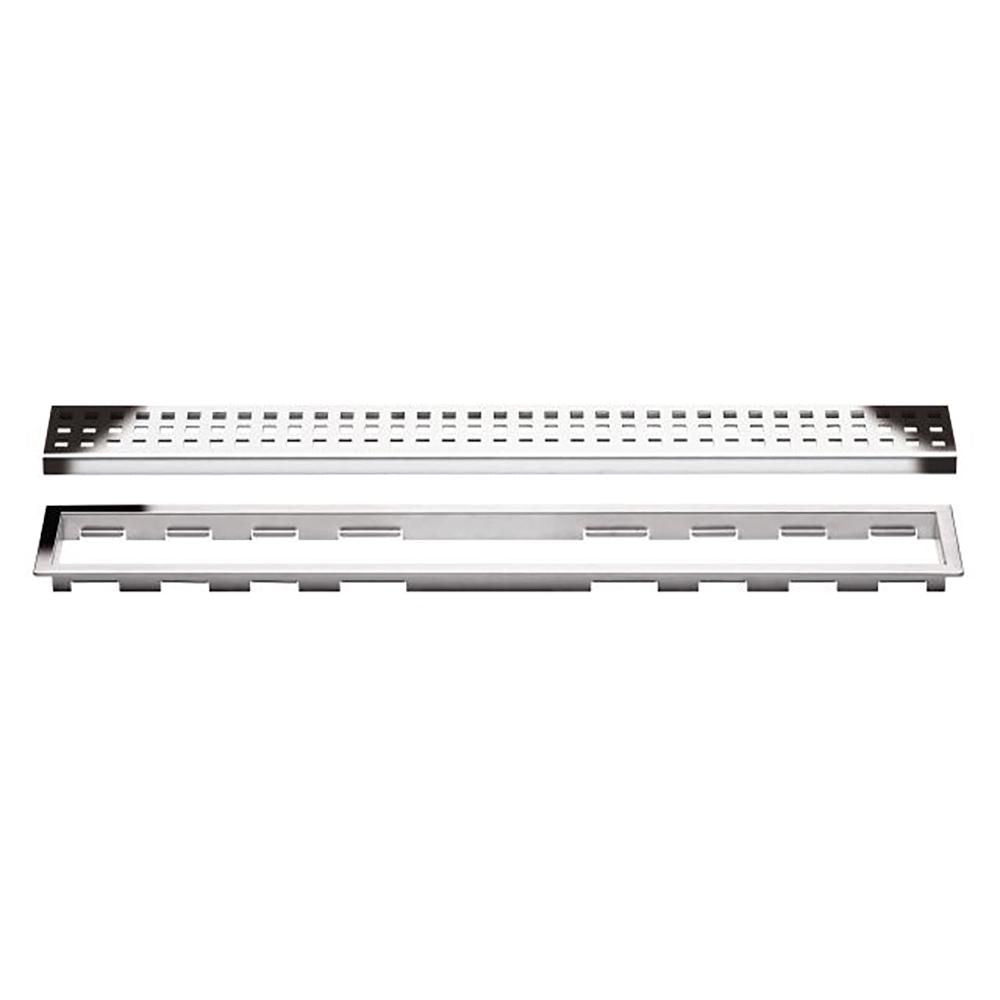

Includes: 1 solid chrome grate with frame.
KERDI-LINE drain body sold separately — select the appropriate model and length.
Designed for open spaces, for a clean, continuous aesthetic.
Allows a single slope converging to the channel, facilitating the use of large-format tiles.
Compatible with ceramic and natural stone tiles of all common thicknesses.
Available in lengths from 50 to 180 cm (20\" to 72\").
SQUARE and SOLID grates are used with KERDI-LINE-FC for a seamless look when installed end to end.
