Schluter KERDI-LINE Recessed linear drain with Square grate - stainless steel (V4) brushed 3/4" x 66-7/8"

Regular price: $696.39

Description

The Schluter‑KERDI‑LINE is a recessed linear drain designed to integrate with bonded waterproofing assemblies. It installs along a wall or at the centre of a shower, steam shower, wet room or any location requiring watertight drainage.

Specifications

Manufacturer	Schluter
Approved for shower use	Yes
Design	Square
Finish	Brushed
Warranty	Shower System and Floor Drains - Limited 10-year warranty
Warranty (years)	10
Height (mm)	39
Height (in.)	0.3762
Height (inches fraction)	3/8
Waterproof	No
Width (mm)	111
Width (in.)	66.88
Width (inches fraction)	66-7/8
Length (mm)	1915
Length (in.)	66.88
Length (inches fraction)	66-7/8
Material	Stainless steel (V4)
Collection name	KERDI-LINE
Weight (lb)	4.91
Water resistance	Yes
Shower drain type	Linear drain
Indoor use	Yes
For use with	Stone and ceramic

Number of unit(s)

Documents

Floor drain data sheet (KL1B19EB170)Shower system data sheet (KL1B19EB170)Drain grate brochure (KL1B19EB170)Curbless showers brochure (KL1B19EB170)Shower system brochure (KL1B19EB170)Shower system warranty document (KL1B19EB170)Floor drains warranty document (KL1B19EB170)User guide: Shower system installation manual (KL1B19EB170)User guide: Shower checklist (KL1B19EB170)

Technical information

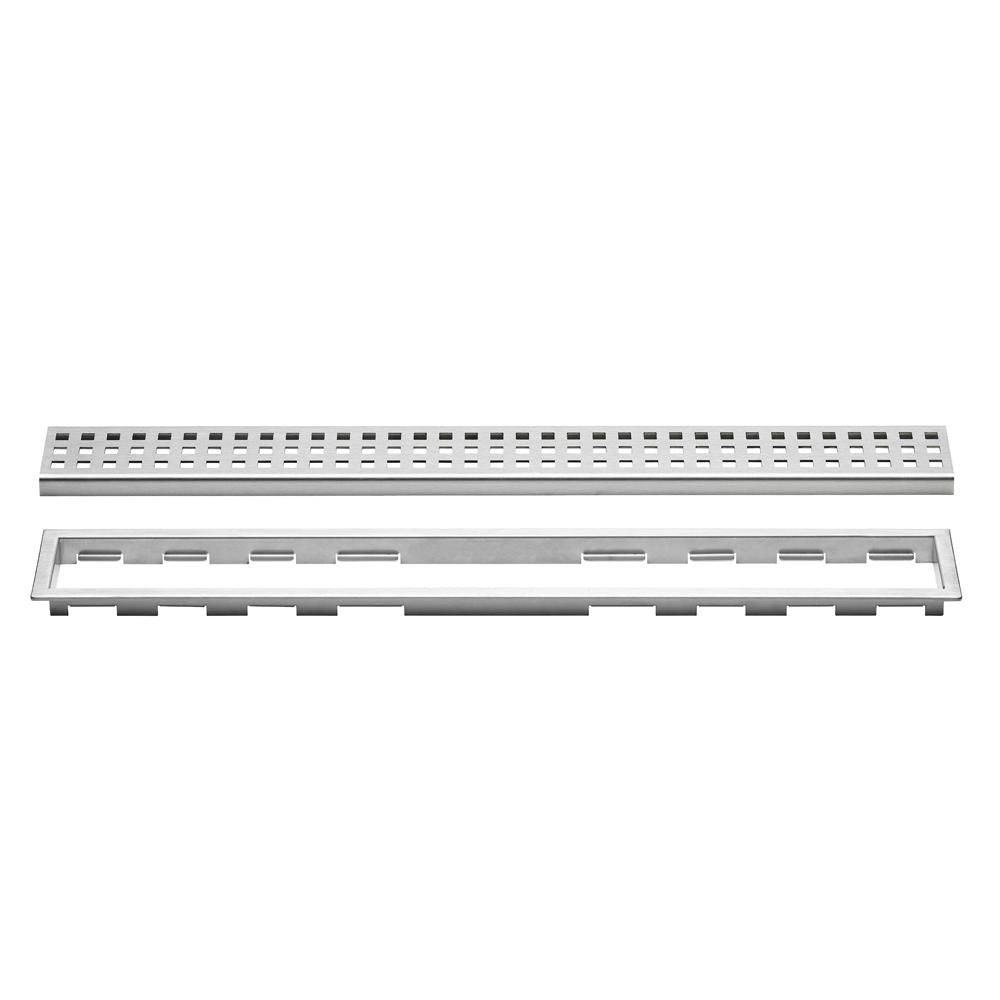

Set contents: 1 perforated grate with frame and locking mechanism, and a second grate, both in brushed stainless steel
KERDI-LINE channel body sold separately — remember to select it
Ideal for open layouts
Allows a single slope converging to the channel, facilitating the use of large-format tiles
Compatible with ceramic and natural stone tiles of all common thicknesses
Available in lengths from 20\" to 72\" (50 to 180 cm)
SQUARE and SOLID design grates are used with KERDI-LINE-FC for a harmonized appearance when assembling multiple channels
