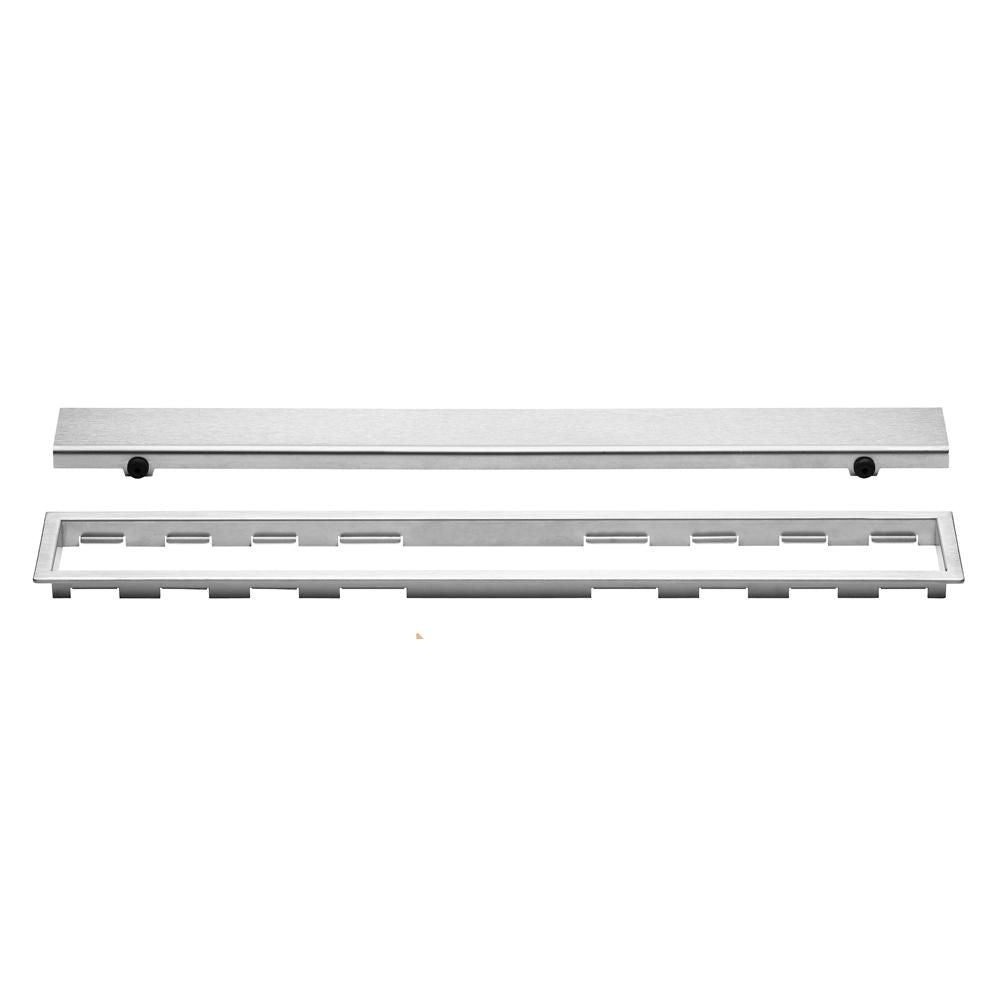

Schluter KERDI-LINE Recessed linear drain with Solid grate design - stainless steel (V4) brushed 3/4" x 35-7/16"

Regular price: $393.87

Description

The Schluter-KERDI-LINE is a recessed linear drain designed to integrate with bonded waterproofing assemblies. It is installed along a wall or in the centre of a shower, steam shower, wet room or any location requiring watertight drainage.

Specifications

Manufacturer	Schluter
Shower approved	Yes
Design	Solid
Finish	Brushed
Warranty	Shower System & Floor Drains - Limited 10-year warranty
Warranty (years)	10
Height (mm)	39
Height (in.)	0.3724
Height (inches, fraction)	3/8
Waterproof	No
Width (mm)	109
Width (in.)	35.44
Width (inches, fraction)	35-7/16
Length (mm)	1017
Length (in.)	35.44
Length (inches, fraction)	35-7/16
Material	Stainless steel (V4)
Collection name	KERDI-LINE
Weight (lb)	4.65
Water resistance	Yes
Shower drain type	Linear drain
Indoor use	Yes
Use for	Stone and ceramic

Number of unit(s)

Documents

Fiche Technique Système de douche (KL1AR19EB90)Fiche Technique Drains de plancher (KL1AR19EB90)Brochure Système de douche (KL1AR19EB90)Brochure Grilles de drain (KL1AR19EB90)Brochure Douches sans seuil (KL1AR19EB90)Document de garantie Système de douche (KL1AR19EB90)Document de garantie Drains de plancher (KL1AR19EB90)Guide de l'usager Liste de vérification pour douches (KL1AR19EB90)Guide de l'usager Manuel d'installation système de douche (KL1AR19EB90)

Technical information

Set contents: SOLID solid grate with frame, in brushed stainless steel
KERDI-LINE channel body sold separately
Designed for open spaces: allows a single slope converging to the KERDI-LINE, facilitating the use of large-format tiles
Compatible with ceramic and natural stone tiles of all common thicknesses
Available in lengths from 20\" to 72\" (50 to 180 cm)
The SQUARE and SOLID grates are used with KERDI-LINE-FC for a harmonized appearance when installing multiple drains end-to-end
