Schluter KERDI-DRAIN drain kit with 2" ABS plastic flange and 4" square stainless steel grate

Regular price: $157.17

Description

The Schluter-KERDI-DRAIN is a shower drain designed to connect to KERDI waterproofing membranes or other bonded carrier membranes. The membrane is bonded to the wide integrated flange to create a watertight joint at the top of the drain assembly. The kit includes a drain body and either a fully adjustable grate or a tile support intended to receive tile. The grate adapts to a range of covering thicknesses and allows lateral and tilt adjustments, while the tile support sits at flange level and can accept tiles of any thickness. The standard model mounts directly onto the drainage pipe. Drain bodies are available in ABS, PVC or stainless steel. The plastic bodies feature a bonding flange covered with non-woven fabric and are available with standard 2" (50 mm) or 3" (75 mm) outlets, to be solvent-welded. Stainless steel bodies are offered with standard 2" (50 mm) or 3" (75 mm) no-hub outlets, or with a threaded 2" (50 mm) outlet. No-hub outlets connect to the pipe with an appropriate mechanical fitting (e.g. flexible coupler or no-hub fitting); threaded outlets are sealed using a thread sealant or suitable tape. Compatibility with standard drainage outlets makes KERDI-DRAIN suitable for both new construction and renovation projects. The KERDI-DRAIN grate consists of a frame adjustable in height and laterally (height adjustment collar and lateral adjustment ring) and one or more grate elements or cleaning covers that insert into the frame. The standard 100 mm (4") frame leaves an exposed gap of about 3 mm after installation. Grate/frame combinations are available in CLASSIC stainless steel or CONTOUR anodized aluminum, with multiple finishes. The KERDI-DRAIN-STYLE 4" (100 mm) brushed stainless steel frame provides a minimal visible gap once installed and is available with three grate patterns: FLORAL (E), CURVE (F) or PURE (G), and in various metallic and colored finishes. The 100 mm (4") TILE grate is a square stainless steel plate with KERDI laminated for bonding tile, offering an almost invisible drainage line. The 6" (150 mm) square and round assembly frames leave an exposed gap of about 3/16" (5 mm) after installation and accept CLASSIC-style grates or a square cleaning cover. Note: the 6" (150 mm) grates and those used with the 5-1/4" (133.4 mm) adapter kits permit only vertical and tilt adjustment, without lateral adjustment.

Read less

Specifications

Manufacturer	Schluter
Shower approved	Yes
Drain diameter	2
Grate finish	Stainless steel
Shape	Square
Grate shape	Square
Warranty	Floor drains - Limited 10-Year Warranty
Warranty (years)	10
Height (mm)	100
Height (in.)	0.3573
Height (in. fraction)	23/64
Waterproof	No

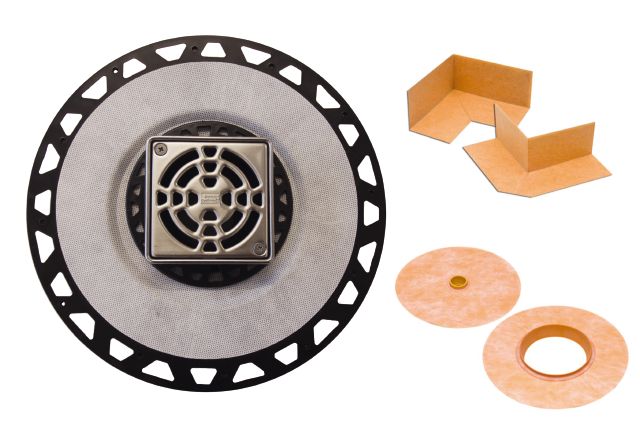

Includes	1 drain body with integrated bonding flange (ABS with 2" outlet) / 1 grate assembly (4" square stainless steel grate and ABS adjustment ring) / 4 internal KERDI-KERECK preformed sealing corners and 2 external KERDI-KERECK corners / 1 pipe seal KERDI-SEAL-PS 3/4" / 1 valve seal KERDI-SEAL-MV 4-1/2" / 1 valve seal KERDI-SEAL-MV 1 KERDI-SEAL-MV valve seal 4-1/2"
Kit	Yes
Width (mm)	304
Length (mm)	304
Material	ABS plastic / stainless steel
Drain material	ABS plastic
Collection name	KERDI-DRAIN
Weight (kg)	0.82
Weight (lb)	1.8
Water resistance	Yes
Grate size (mm)	100
Grate size (in.)	4
Base and shower kit type	Shower drain
Shower drain type	Drain accessories
Indoor use	Yes
Use for	Specifically designed to allow connections with KERDI or other bonded and supported waterproofing membranes
Maximum tile thickness (mm)	32
Maximum tile thickness (in.)	1.25
Maximum tile thickness (in. fraction)	1-1/4
Minimum tile thickness (mm)	6
Minimum tile thickness (in.)	0.25
Minimum tile thickness (in. fraction)	1/4

Number of unit(s)

Documents

Floor Drains Technical Data Sheet (KD2ABSE)Shower System Technical Data Sheet (KD2ABSE)Shower System Technical Data Sheet (2023)DIV-22 Specification Sheet - Bonding Flange (2022)DIV-22 Specification Sheet - Grates (2022)Barrier-free Shower Brochure (KD2ABSE)Shower System Brochure (KD2ABSE)Drain Grates Brochure (KD2ABSE)Shower System Brochure (2022)Barrier-free Shower Brochure (2022)Drain Grates Brochure (2022)Floor Drains Warranty Document (KD2ABSE)Shower System Warranty Document (2022)Shower Checklist (2022)User Guide Shower Checklist (KD2ABSE)User Guide Shower System Installation Manual (KD2ABSE)Installation Manual - Shower System (2023)

Technical information

Available in matching TRENDLINE finishes: matte black, matte white, stone grey, greige, cream and bronze
KERDI-DRAIN grate assembly sold separately — select the appropriate grate
Tamper-resistant screws and matching key available
ABS or PVC flanges: 2" or 3" outlet; stainless steel flange: hubless 2" or 3" outlet or 2" threaded outlet

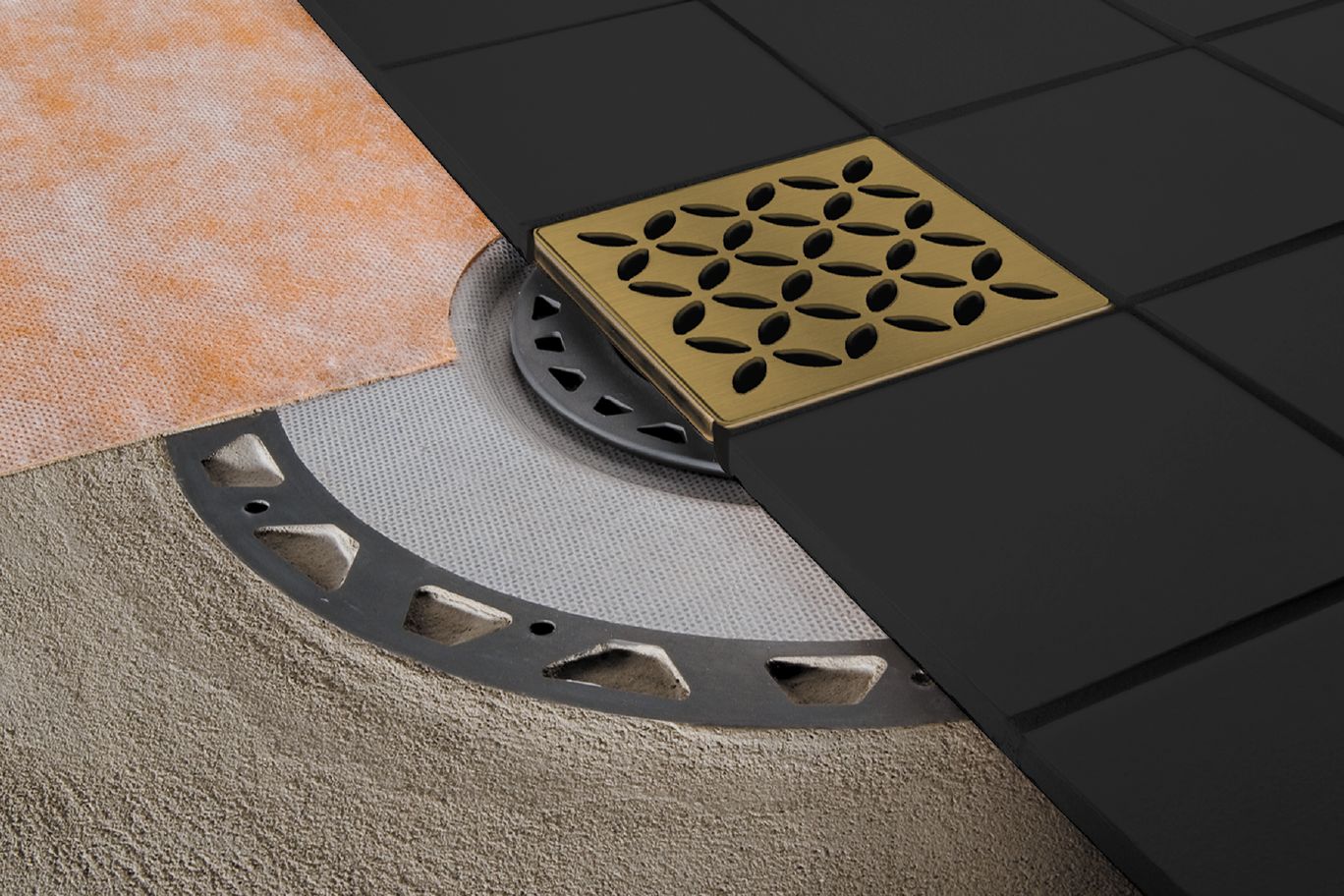

Laterally adjustable grate to suit tile layout and level with the tiled surface
Compatible with tile thicknesses from 1/4" (6 mm) to 1-1/4" (32 mm) — adjustable grates in stainless steel or anodized aluminium, multiple finishes
