Schluter KERDI-DRAIN Ensemble de bride - plastique PVC 2"

Regular price: $91.83

Description

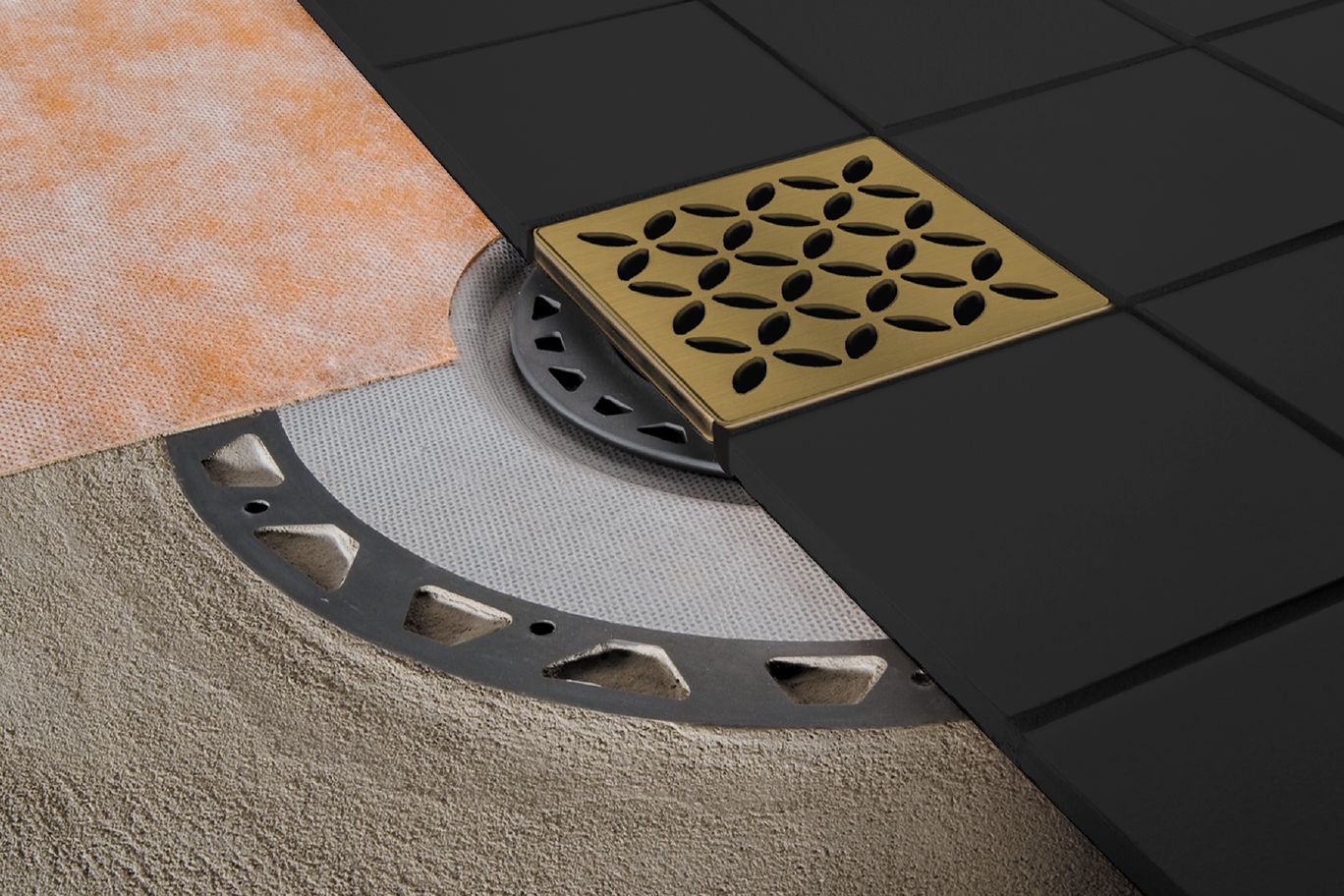

Schluter-KERDI-DRAIN est un système d’évacuation de plancher doté d’une large bride de collage intégrée, garantissant une liaison étanche avec la membrane d’étanchéité KERDI posée sur la partie supérieure de l’assemblage.

Specifications

Manufacturer	Schluter
Shower approved	Yes
Drain diameter	2
Warranty	Floor drains - Limited 10-Year Warranty
Warranty (years)	10
Height (mm)	130
Height (in.)	0.3578
Height (in. fraction)	23/64
Waterproof	No
Kit	Yes
Width (mm)	322
Width (in.)	11.81
Width (in. fraction)	11-13/16
Length (mm)	313
Material	PVC plastic
Collection name	KERDI-DRAIN
Weight (lb)	0.8
Water resistance	Yes
Base and shower kit type	Shower flange
Shower drain type	Drain accessories
Indoor use	Yes
Use for	Stone and Ceramic

Number of unit(s)

Documents

Shower System Technical Data Sheet (KD2FLKPVC)Floor Drains Technical Data Sheet (KD2FLKPVC)Drain Grates Brochure (KD2FLKPVC)Shower System Brochure (KD2FLKPVC)Barrier-free Shower Brochure (KD2FLKPVC)Floor Drains Warranty Document (KD2FLKPVC)User Guide Shower System Installation Manual (KD2FLKPVC)User Guide Shower Checklist (KD2FLKPVC)

Technical information

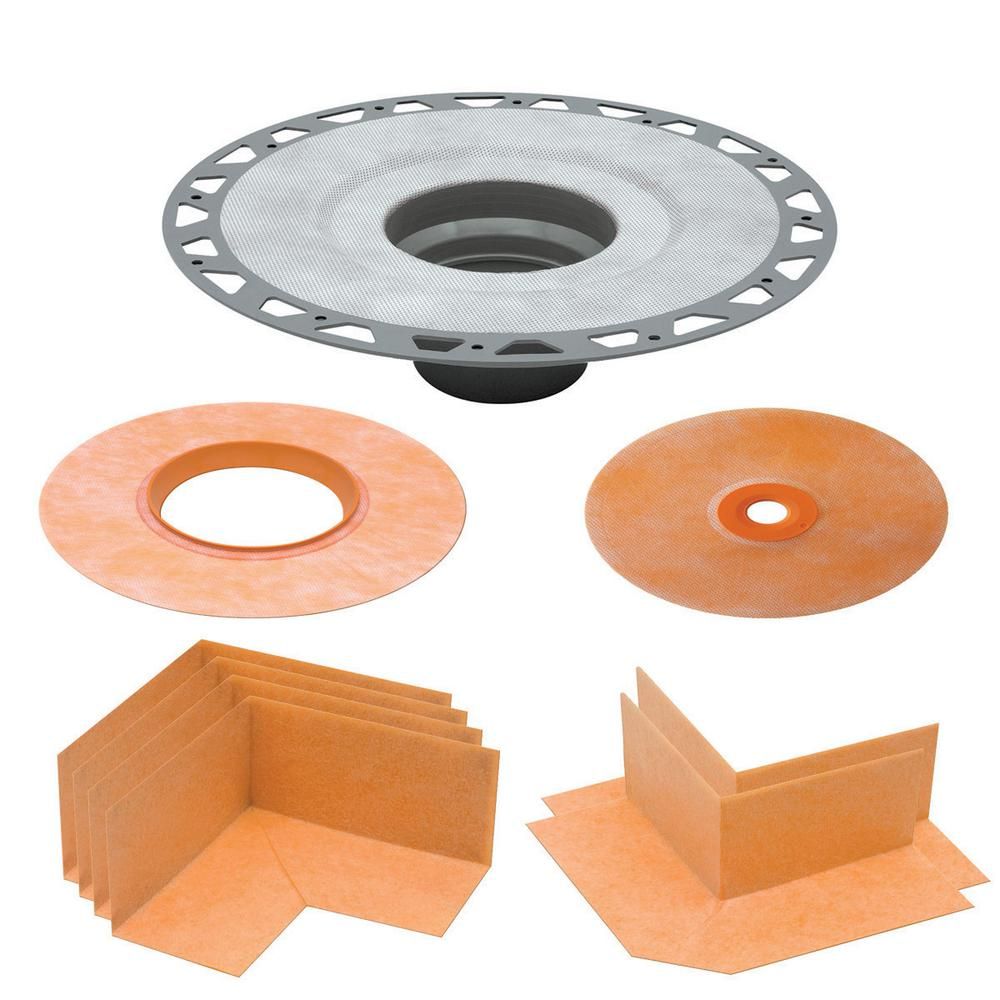

Set contents: 1 drain with integrated bonding flange; 4 internal preformed KERDI-KERECK corners and 2 external preformed KERDI-KERECK corners; 1 KERDI-SEAL-PS 3/4" pipe sleeve, 1 KERDI-SEAL-MV 4-1/2" valve sleeve.
Integrated flange and preformed elements — designed to ensure precise waterproofing and simplify installation.
KERDI-DRAIN grate sold separately.
Tamper-resistant screws and matching key available as an option.
