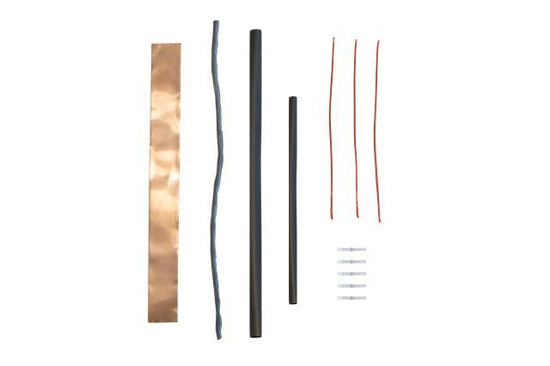

Schluter DITRA-HEAT-E-HK-RK Ensemble de réparation pour câbles chauffants

Regular price: $42.82

Description

Schluter-DITRA-HEAT-E-HK heating cables are twisted pairs designed to integrate with the DITRA-HEAT uncoupling membrane and heat interior floors. Important guidance for selection and installation: - Do not use cable to cover the entire tiled surface: this is generally unnecessary. - Very important: NEVER CUT OR MODIFY the cable. Any alteration changes its resistance, may damage it, and can cause overheating. - It is possible to lay the cable using alternating spacing of three then two studs in certain areas or across the whole floor to increase output (e.g., over an uninsulated subfloor or concrete) or to use a longer cable when three-stud spacing prevents meeting minimum clearances from walls and partitions. - Four-stud spacing is not recommended because it can cause uneven heating. - Observe the following minimum clearances: walls, partitions and fixed cabinets 2" (50 mm); heat sources (electric baseboards, fireplaces, forced-air heating systems, etc.) 8" (200 mm); floor drains and forced-air ducts 4" (100 mm); centerline of toilet drains 7" (180 mm). - NEVER install cable under vanity cabinets with no airflow, under bathtub platforms or freestanding tubs with no airflow, or inside cabinets, islands, small storage spaces or closets where the floor covering continues: these confined areas can cause overheating. - NEVER run the cable under or through a wall, partition, or through a floor. - NEVER place the splice (the black plastic piece joining the cold lead to the gray cable) inside a wall; it must be fully embedded beneath the floor covering, per installation instructions. - Provide a buffer zone — for example behind a toilet or near a door — to hide excess cable and avoid heating a nonessential area. Cables can also be installed 6" (150 mm) from walls to create this buffer. - Test the cable while it is still on its spool and at two additional stages of installation to verify integrity and protect the warranty. A megohmmeter is required for the insulation resistance test; its use is strongly recommended. - Consult a qualified electrician before ordering DITRA-HEAT cables to select the correct voltage for your installation.

Read less

Specifications

Manufacturer	Schluter
Radiant system compatibility	Yes
Warranty	DITRA-HEAT System - Limited 15-year warranty
Warranty (years)	15
Height (mm)	17
Height (in.)	0.1634
Height (inch fraction)	5/32
Attention information	Do not use repair kits to connect different heating cables. They are intended only to repair a single DITRA-HEAT-E-HK heating cable. Repairs must only be performed by a qualified electrician, in accordance with the procedure specified for Schluter®-DITRA-HEAT cables, the Canadian Electrical Code, Part I (Canada) or the National Electrical Code (United States), and all applicable local electrical and building codes. Failure to follow the repair procedure and applicable codes may result in personal injury, property damage, or failure of the repair or connection. Never cut the heating cable. The heating cable cannot be shortened or modified to fit the space. Doing so would change the cable resistance and could cause a fire. DISCLAIMER: Any item not installed in accordance with the Schluter®-DITRA-HEAT installation manual instructions during the initial installation (including damage to Schluter®DITRA-HEAT-E-HK heating cables) will void the limited warranty of the Schluter®-DITRA-HEAT system and any other applicable warranty. WARRANTY COVERAGE WILL NOT BE REINSTATED AFTER REPAIR OF THE HEATING CABLE. Schluter-Systems cannot be held responsible for determining the suitability of the repair kit for the user's intended use. TO THE EXTENT PERMITTED BY LAW, SCHLUTER SYSTEMS EXCLUDES ALL OTHER WARRANTIES, REPRESENTATIONS AND CONDITIONS, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, AND DISCLAIMS ALL LIABILITY ATTRIBUTABLE TO REPAIR SERVICES PROVIDED BY AN ELECTRICIAN.
Width (mm)	27
Length (mm)	52
Collection name	DITRA-HEAT-E-HK-RK
Weight (lb)	0.99
Type of radiant system	Electric heating only
Indoor use	Yes

Number of unit(s)

Documents

User guide DITRA-HEAT Cable Repair Manual (DHEHKRK)

Technical information

Quick and clean installation: the cables insert directly into the membrane without fasteners or the need to cover with self-leveling compound, speeding up the job.
Installation without return to the thermostat for simplified implementation.
Virtually zero electromagnetic fields for a worry-free user experience.
Available in 120 V and 240 V, in several lengths to suit your needs.
Designed for electric underfloor heating under tile, stone or resilient coverings (e.g. LVT).
