Schluter DILEX-HKU outside corner 90° with a 3/8" (10 mm) radius - brushed stainless steel (V4)

Regular price: $6.44

Description

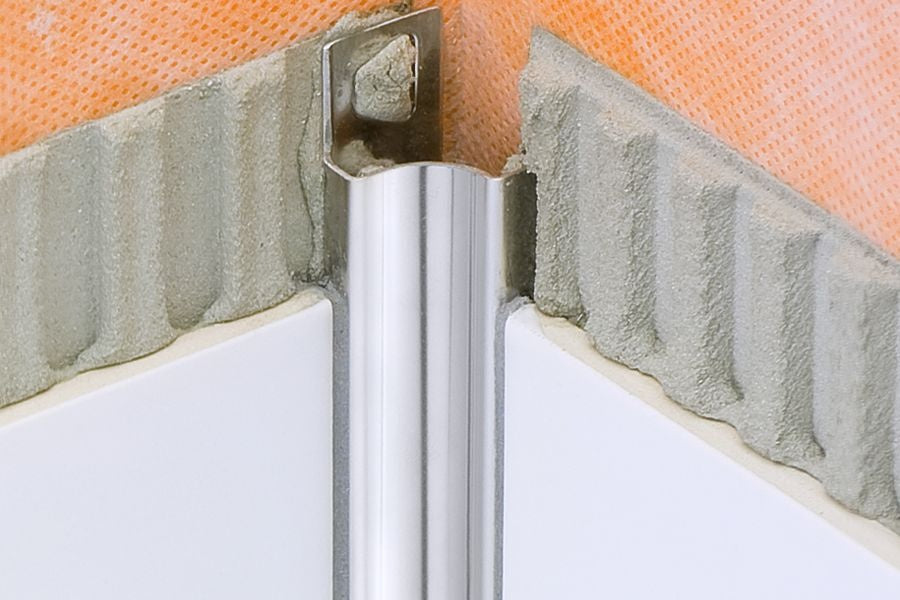

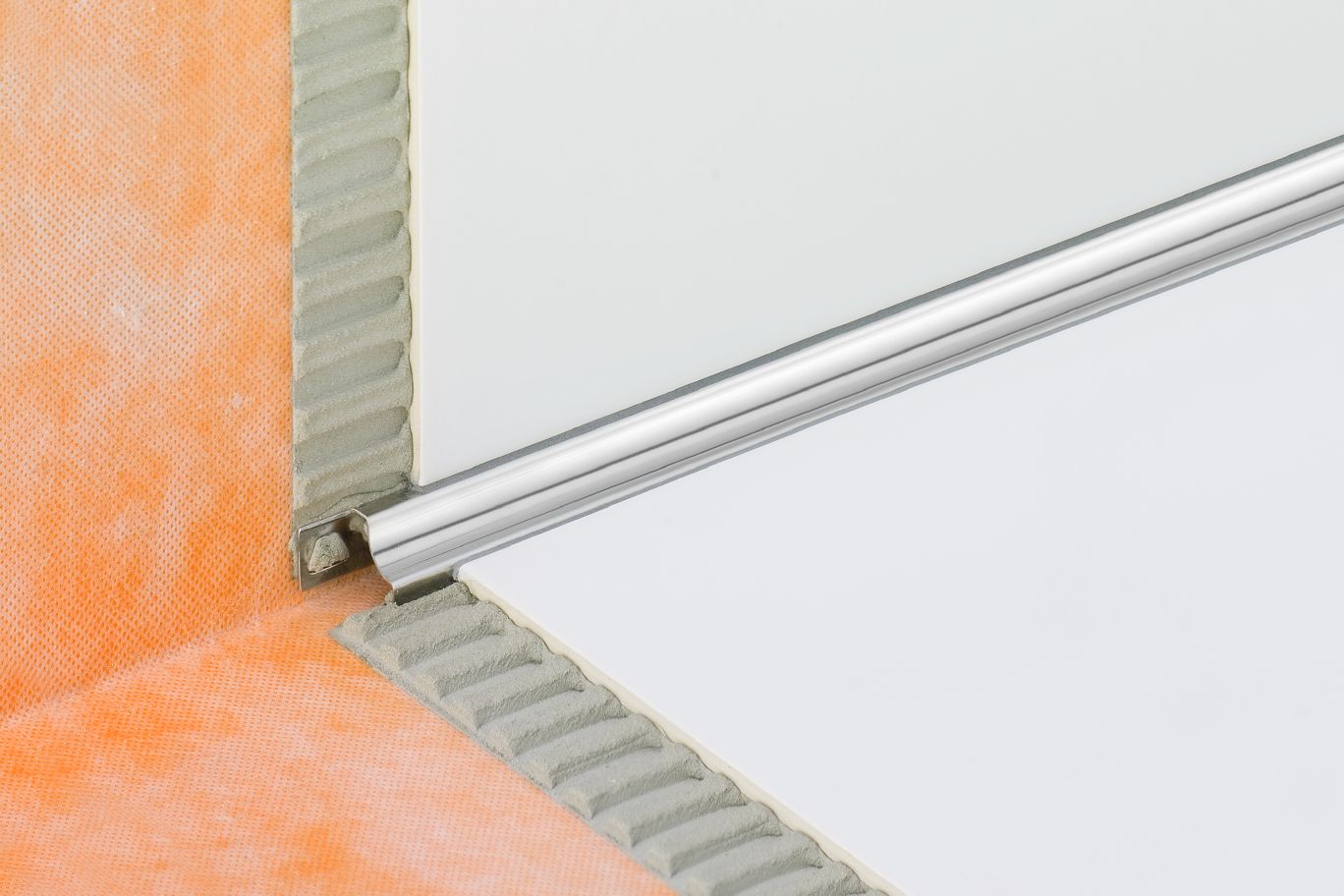

The Schluter-DILEX-HKU profile is a recessed corner profile in stainless steel designed for inside wall corners and floor/wall transitions, including countertop/backsplash junctions. It can be used with floor coverings other than ceramic tile or natural stone provided they are fastened or bond... Read more

Specifications

Manufacturer	Schluter
Corner angle	90
Finish	Brushed
Warranty	Movement joint and groove profiles - Limited 5-year warranty
Warranty (years)	5
Length (cm)	250
Length (m)	2.5
Length (in.)	98.5
Length (in. fraction)	98-1/2
Material	Stainless steel (V4)
Collection name	DILEX-HKU
Weight (lb)	0.01
Radius (mm)	10
Radius (in.)	0.38
Radius (in. fraction)	3/8
Corner type	Outside corner
Type of trim transition	Floor/wall transitions
Indoor use	Yes
Intended for	Tile
Floor thickness for trim (mm)	10

Number of unit(s)

Documents

Technical Data Sheet - Movement joint profiles (EQHKUR10E)Profiles brochure (EQHKUR10E)Commercial products brochure (EQHKUR10E)Movement joint and groove profiles warranty document (EQHKUR10E)

Technical information

Eliminates the need for caulking.
Separates tiled areas at inside corners designed for restricted movement, reducing stress on joints.
Compatible with tile and other fixed or bonded coverings; not suitable for floating floors.
Single perforated anchoring fin (trapezoidal holes) oriented inward for secure embedding in the thin-set mortar.

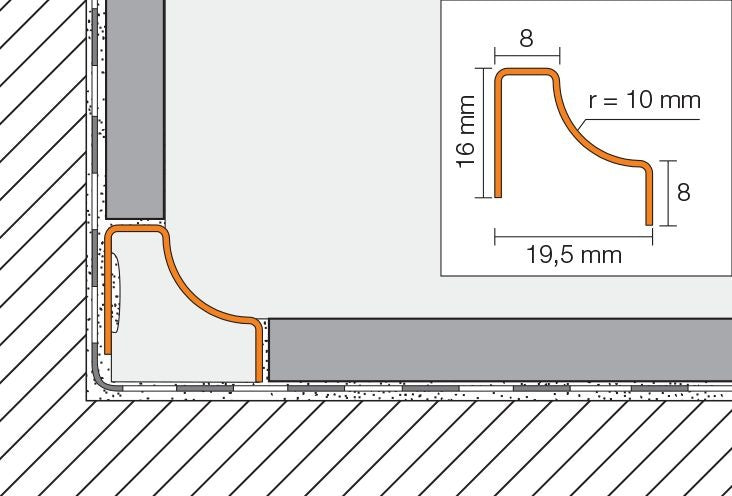

Available radii: 3/8\" (10 mm) and 1 13/32\" (36 mm) — limits water ingress and dirt build-up for easier maintenance.

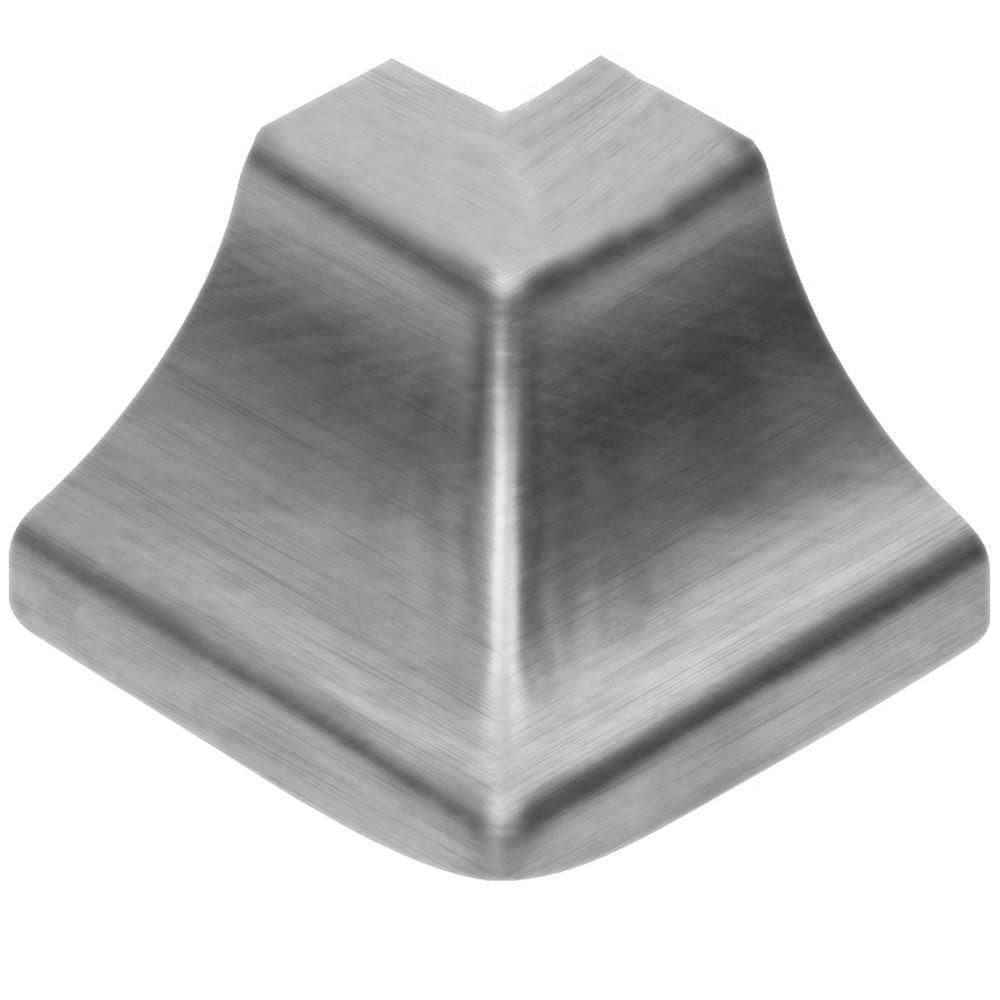

90° and 135° inside and outside corners, as well as connectors and end caps, available for a neat finish.
Supplied with internal EPS foam connectors.
Available in stainless steel 316L (1.4404 = V4A). Contact Customer Service for pricing and availability.
