Schluter DILEX-HKU Outside corner 135° with a radius of 3/8" (10 mm) - stainless steel brushed (V4)

Regular price: $6.72

Description

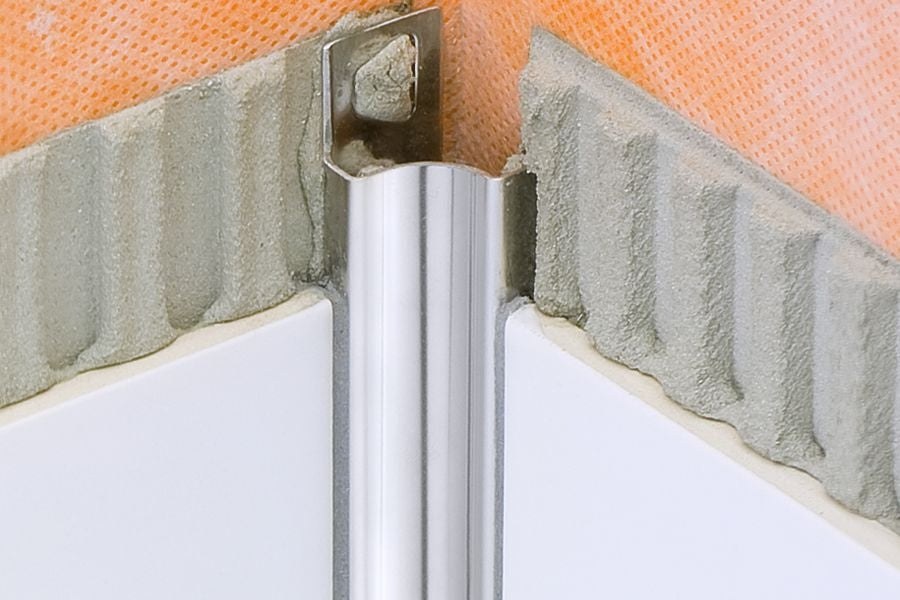

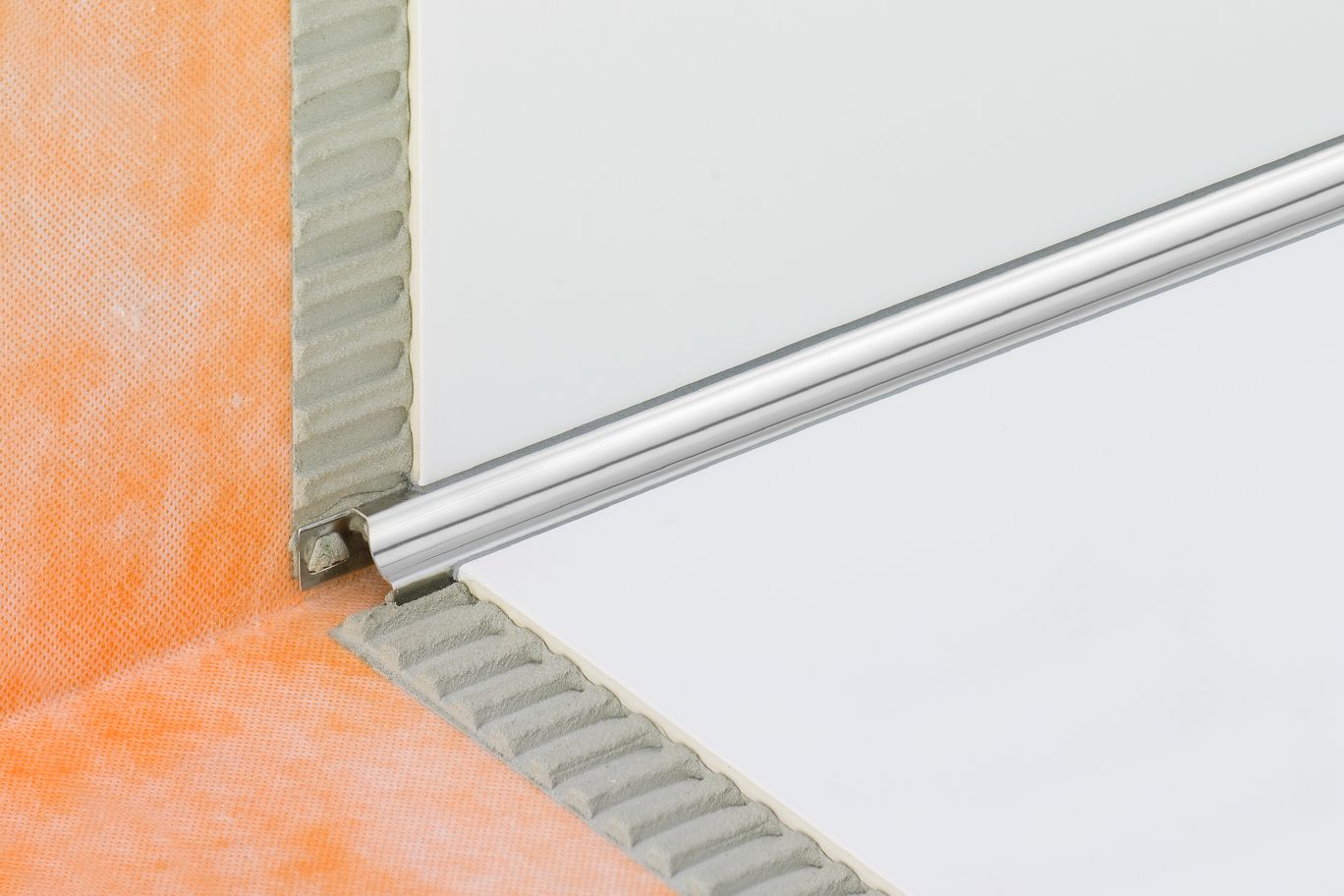

The Schluter‑DILEX‑HKU is a groove profile in stainless steel, designed for interior wall angles and floor/wall junctions, including countertop/backsplash transitions. It is also suitable for floor coverings other than ceramic and natural stone, provided they are fastened or glued; it is not i... Read more

Specifications

Manufacturer	Schluter
Corner angle	135
Finish	Brushed
Warranty	Movement and Cove Joint Profiles - 5-Year Limited Warranty
Warranty (years)	5
Length (cm)	250
Length (m)	2.5
Length (in.)	98.5
Length (in. fraction)	98-1/2
Material	Stainless steel (V4)
Collection name	DILEX-HKU
Weight (lb)	0.01
Radius (mm)	10
Radius (in.)	0.38
Radius (in. fraction)	3/8
Corner type	Outside corner
Moulding transition type	floor/wall transitions
Indoor use	Yes
Suitable for	Tile
Floor thickness for moulding (mm)	10

Number of unit(s)

Documents

Technical Data Sheet Movement Joint Profiles (E135HKUR10EB)Commercial Products Brochure (E135HKUR10EB)Profiles Brochure (E135HKUR10EB)Warranty document Movement and Cove Joint Profiles (E135HKUR10EB)

Technical information

Eliminates the need for caulking
Separates tiled areas at inside corners designed for limited movement
Compatible with tile and other fixed or bonded floor coverings (not suitable for floating floors)
Single anchoring flange perforated with trapezoidal holes, oriented inward and embedded in the thin-set mortar

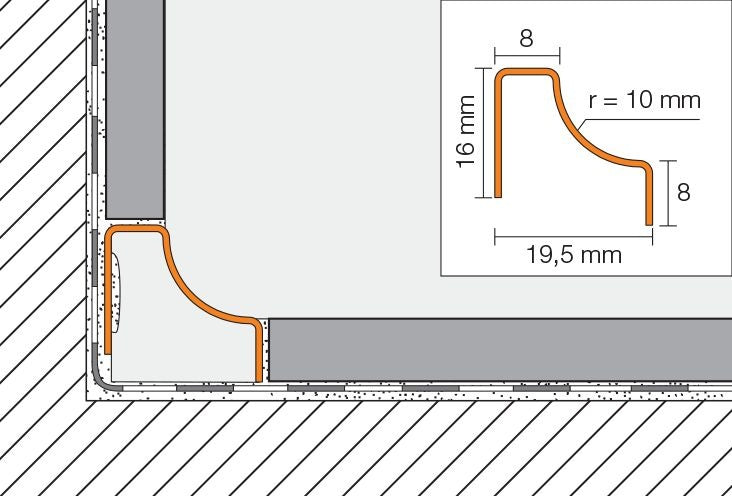

Available in 3/8" (10 mm) or 1 13/32" (36 mm) radius — limits water intrusion and dirt buildup for easier cleaning
90° and 135° (inside and outside) angles available, plus connectors and end caps
Stainless steel 316L (1.4404 = V4A) — contact Customer Service for pricing and availability
Supplied with internal EPS foam connectors
