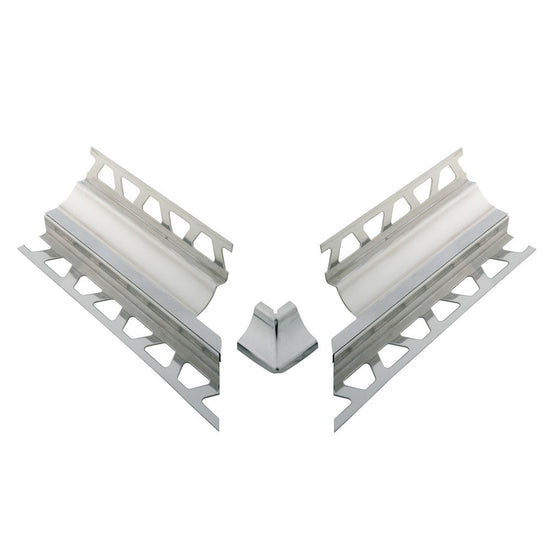

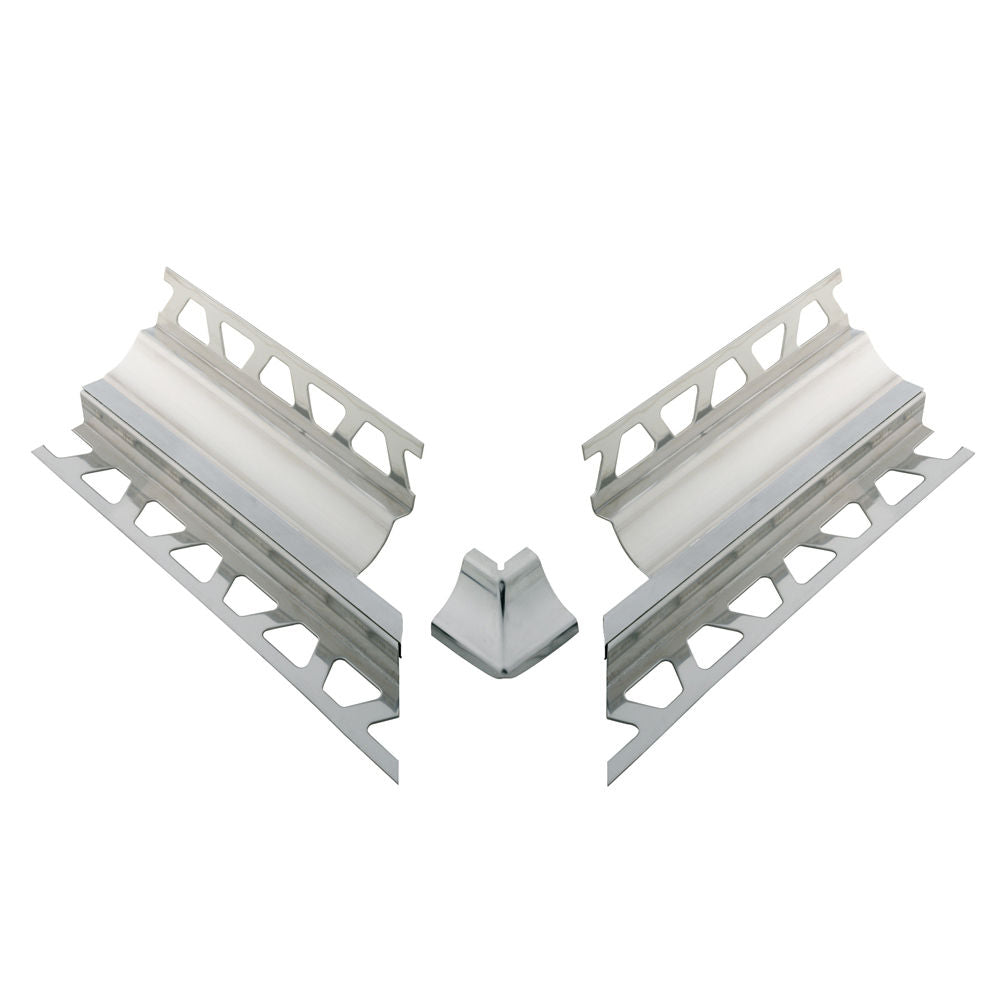

Schluter DILEX-HKS 90° outside corner set with 23/32" radius - stainless steel (V2), classic grey 3/8" x 11/32"

Regular price: $62.98

Description

The Schluter-DILEX-HKS angle profile serves as a perimeter trim for tiled areas, defining the visible surface between floor and wall as well as at transition points. Designed for commercial kitchens and sanitary areas, it provides accessible angles that are easy to clean and maintain. Made of ... Read more

Specifications

Manufacturer	Schluter
Corner angle	90
Colour	Grey
Manufacturer colour	classic grey
Warranty	Movement joint and recessed profiles - Limited 5-year warranty
Warranty (years)	5
Height (mm)	10
Height (in.)	0.38
Height (in., fractional)	3/8
Material	Stainless steel (V2)
Collection name	DILEX-HKS
Weight (lb)	0.93
Radius (mm)	18.5
Radius (in.)	0.72
Radius (inch, fraction)	23/32
Corner type	External corner
Type of profile transition	floor/wall transitions
Indoor use	Yes
Intended for	Tile
Wall thickness for the profile (mm)	9
Wall thickness for the profile (in.)	0.34
Wall thickness for the profile (inch, fraction)	11/32
Floor thickness for the profile (mm)	10
Floor thickness for the profile (in.)	0.38
Floor thickness for the profile (inch, fraction)	3/8

Number of unit(s)

Documents

Technical data sheet - Movement joint profiles (E90V2AU10O11G)Warranty document - Movement joint and recessed profiles (E90V2AU10O11G)

Technical information

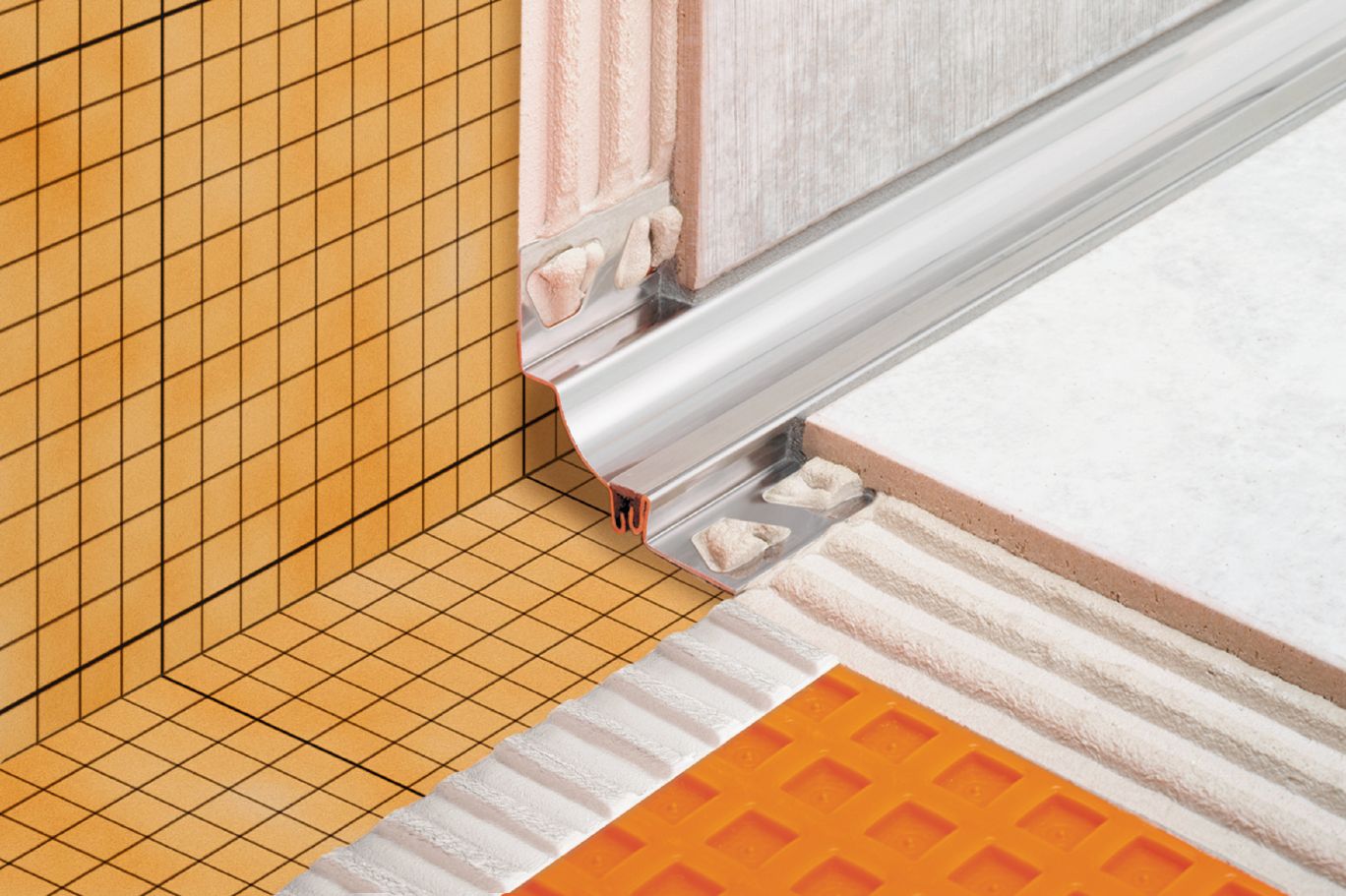

Designed to allow movement in large tiled areas and reduce mechanical stresses, thereby preventing cracking and detachment of tiles.
Integrated thermoplastic rubber movement zone that absorbs larger displacements at floor/wall transitions and internal corners, avoiding the need for caulking.

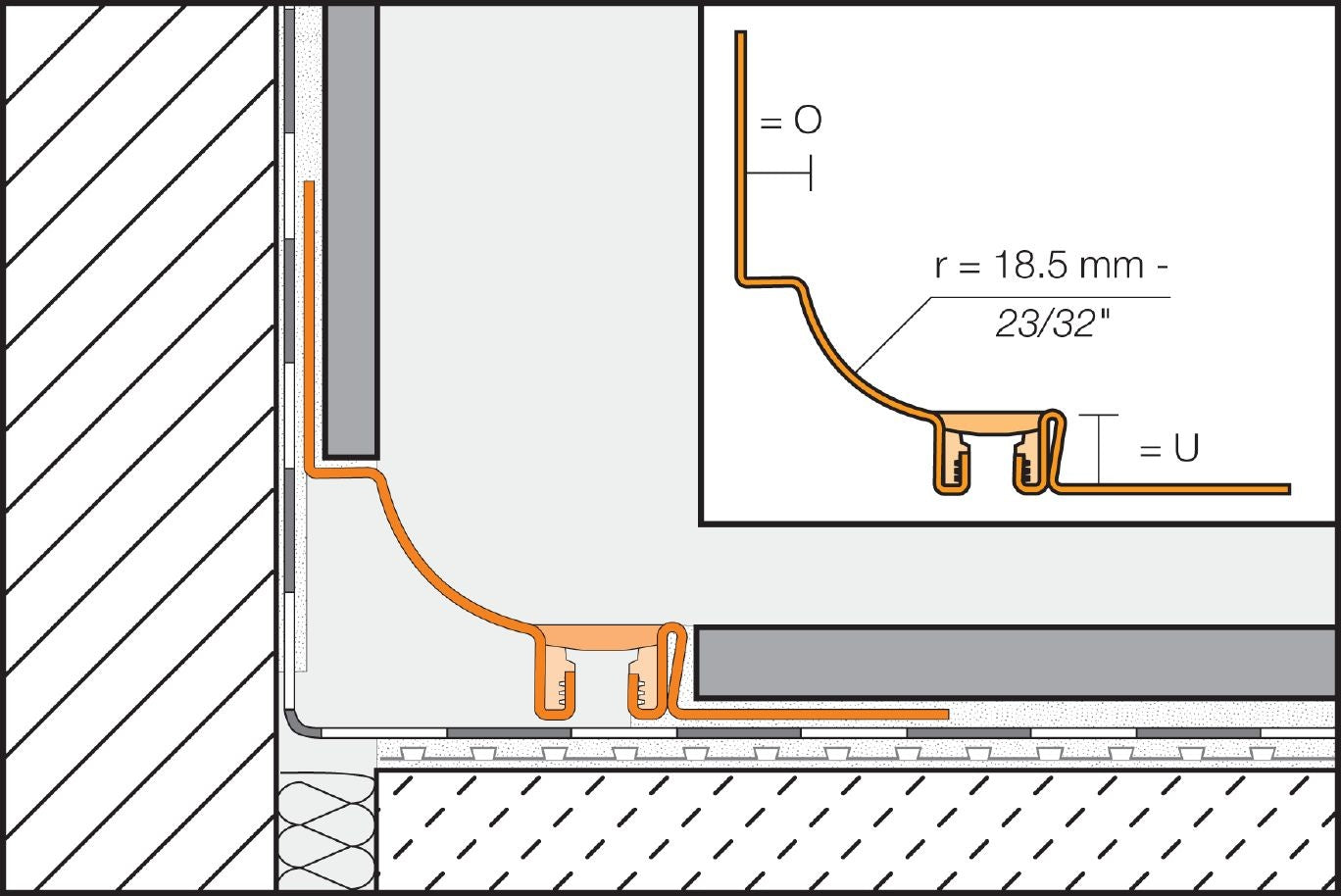

Radius of 23/32" (18.5 mm) that limits dirt accumulation and makes cleaning easier.
Wide range of accessories: external corners, bi-directional or tri-directional internal corners, connectors and end caps; 90° external corners with pre-cut sections available on special order.
Also available in stainless steel 316L (1.4404 = V4A); contact Customer Service for pricing and availability.
