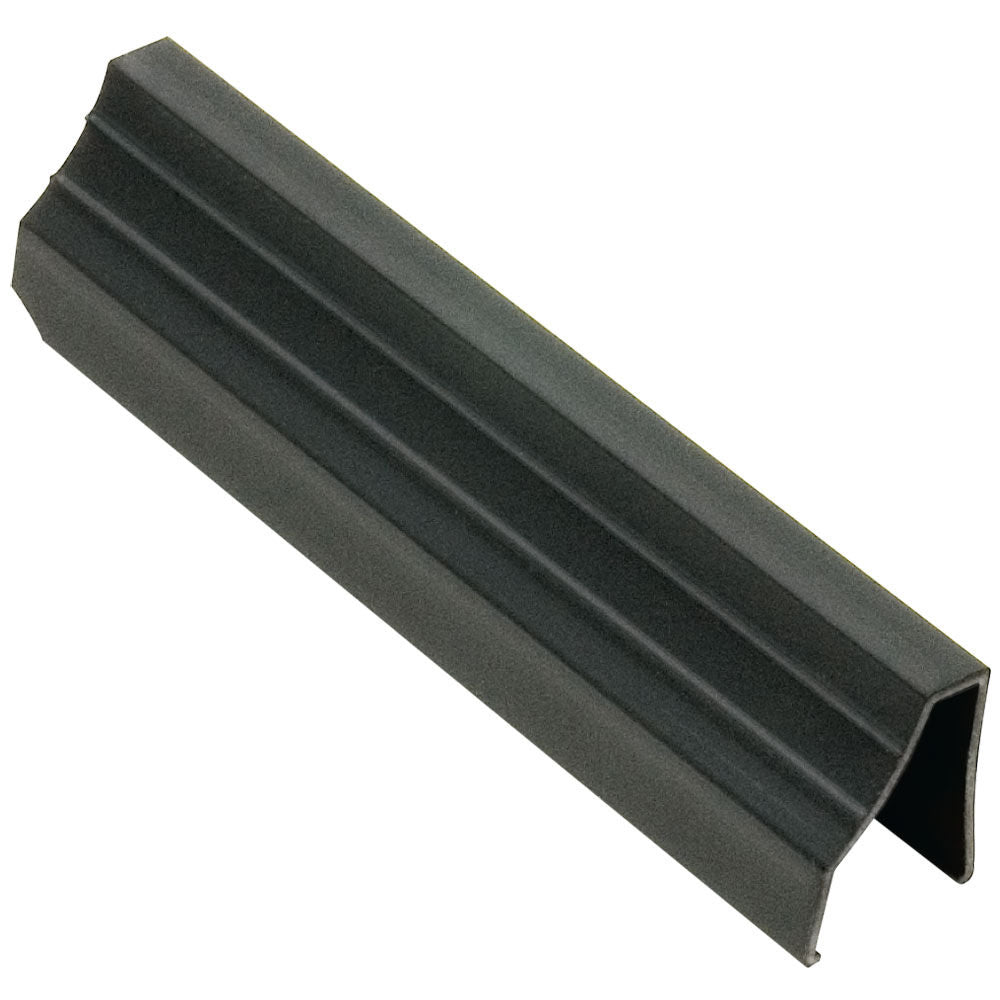

Schluter DILEX-HK Connector with an 11/16\" (18 mm) radius - PVC

From
Regular price
$2.50
Description

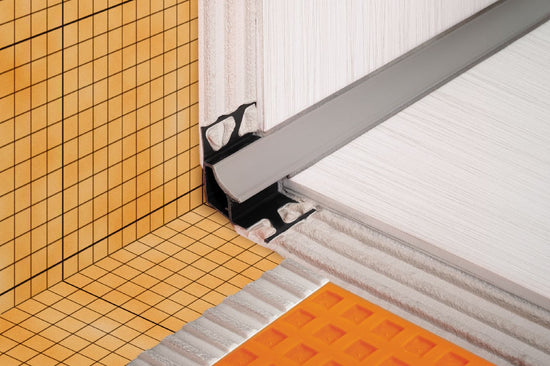

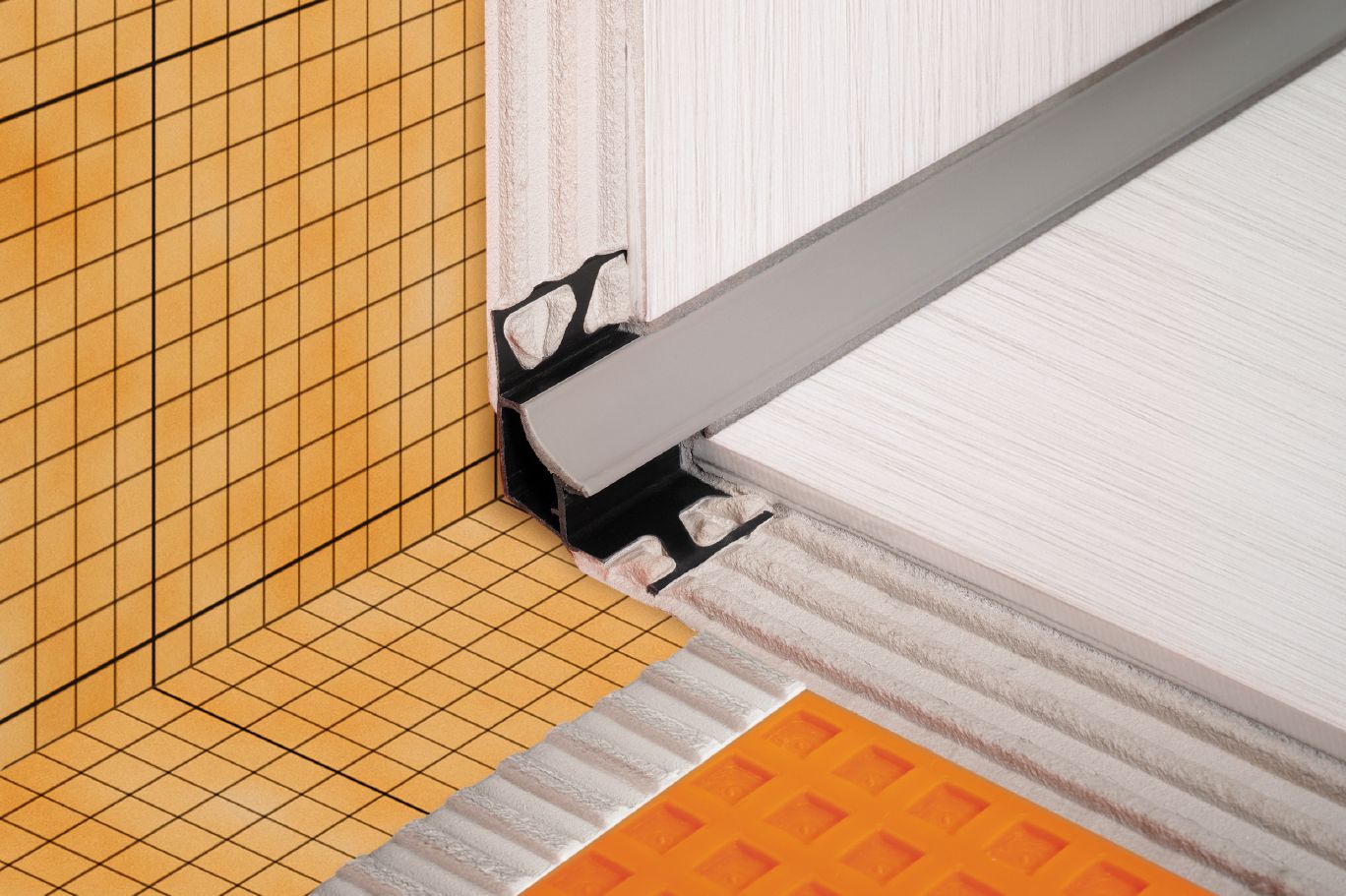

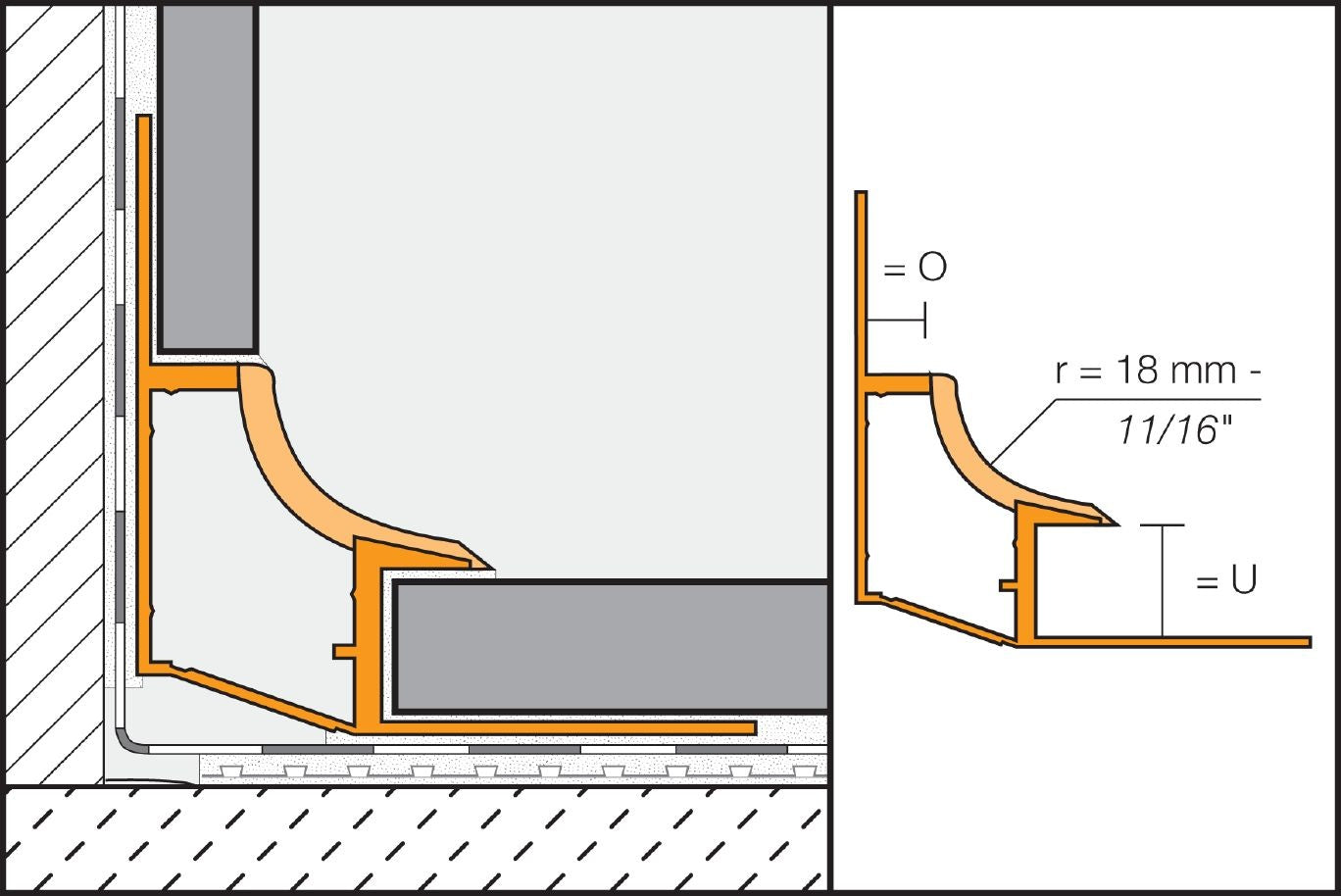

The DILEX-HK is a PVC cove profile designed for tile installations. It provides the floor-to-wall transition with a tile pocket that covers the cut edge of the floor tile, with an 11/16\" radius. Its geometry limits dirt buildup and simplifies cleaning. Inside corners, outside corners and end ... Read more

Specifications
WarrantyMovement and recess profiles - Limited 5-year warranty
Warranty (years)5
MaterialPVC plastic
Collection nameDILEX-HK
Weight (lb)0.01
Radius (mm)18
Radius (in. fraction)11/16
Indoor useYes
Use forTile
Floor thickness for the profile (mm)18

Number of unit(s)

Documents
Technical information
  • Accommodates movement and reduces mechanical stress in large tiled areas
  • Eliminates the need for caulking
  • Ideal for wall/floor transitions between tiles of different thicknesses
  • Groove covering the cut edges of tiles for a neat finish
  • Soft CPE movement zone 11/16" (18 mm) that divides the tiled surface and forms the visible section
  • Complies with hygiene requirements of commercial kitchens, bathrooms and food processing plants requiring a sanitary rounded base
  • Limits sound transmission, perfect for floor/wall transitions in soundproofed floors
  • Pairs with the DILEX-HKW profile for internal cove corners
  • Accessories available: external corners, two-way and three-way internal corners, connectors and end caps
  • PVC body, available in several colours
